Production Cycle Time ≥500 pcs/h Ceramic Component Multistation Helium Mass Spectrometer Leak Test Equipment
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsApp : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 90 days |
| Payment Terms : | T/T, L/C | Supply Ability : | 3 set per 3 month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Third party calibration certificate(cost additional) |
|
Detail Information |
|||
| Test Sample: | Automotive Filter Drier | Vacuum Chamber Qty: | 2 |
|---|---|---|---|
| Leak Test Gas: | Helium | Gross Leak Test Gas: | Nitrogen / Compressed Air |
| Detection Method: | Vacuum Chamber Method | Helium Charging Pressure: | 200psi |
| Detectable Leak Rate: | 1.5g/Year | Cycle Time: | 35 Seconds / Piece |
| Highlight: | 200psi Leak Testing Equipment,200psi 2 Chamber Leak Testing Equipment,200psi Leak Testing Equipment 700×450×230mm |
||
Product Description

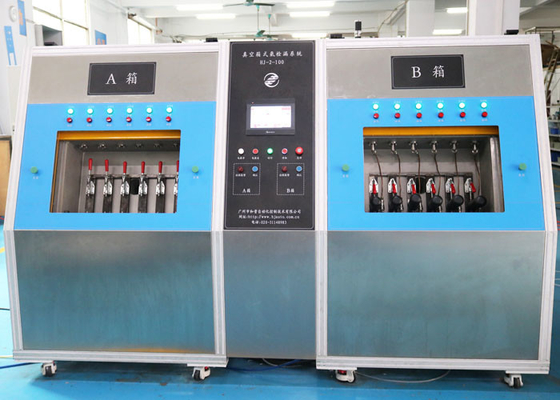

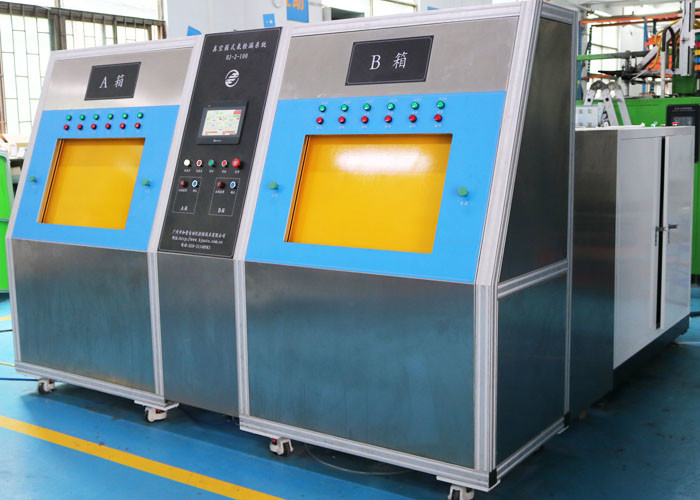

Leak Testing Equipment For Filter Drier Helium Leak Test System Chamber Method
Feature:
This helium leak test system can detect different auto parts such as products as aluminum wheels, funnel tank, air conditioners, filter driers and etc., only need to replace the fixture and the inflation joint. Chamber method with high performance and high reliability. Leak Testing Equipment
Parameter:
| Workpiece | Filter Drier |
| Vacuum Chamber Size |
700×450×230 mm (LxWxH) Can be customized according to client's specific workpiece |
| Vacuum Chamber Quantity | 2 (Can be customized) Leak Testing Equipment |
| Pressure for Gross Leak Test | Nitrogen / Compressed Air 680psi |
| pressure for Fine Leak Test | Helium 200psi |
| Detection leak rate | 1.5 grams / year |
| Cycle Time | 35 seconds / piece |
| Helium Recovery | Recovery Rate ≥95% |
| Pipes and fittings | There are 6 evacuated inflation pipelines in the chamber (including 3 sets of joints), Separate control of each pipeline |
| Fixture | Provide 1 product’s fixture |
| Loading and unloading of products | Manual |
| Test Cycle | Automatic |
System Configuration:
Machine integral reliability is guaranteed by main standard parts which are bought from the international famous brand with reliable quality, and mechanical parts with superior material and good processing technique.
| No. | Description |
| 1 | Chamber with fixture |
| 2 | Machine frame |
| 3 | Chamber door and auto- closing mechanism |
| 4 | Evacuation pump for chamber |
| 5 | Vacuum gauge |
| 6 | Leak detector |
| 7 | Pressure sensor |
| 8 | Electromagnetic Valve |
| 9 | Daily-check standard leak |
| 10 | Helium recovery and boosting system |
| 11 | PLC |
| 12 | Touch screen |
| 13 | Electrical parts |
| 14 | Pipes and fittings |
