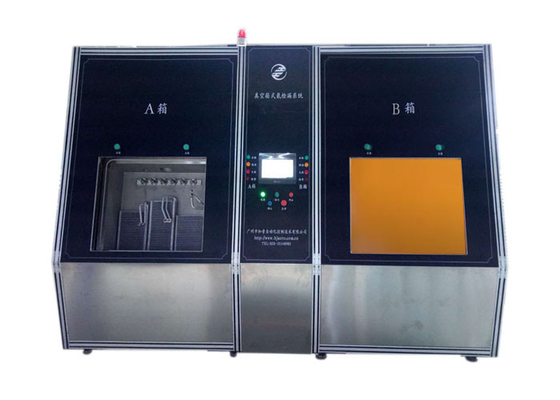

4.0Mpa 100s/chamber Helium Leak Testing Equipment For Car Condenser

Minimum Order Quantity : 1 Set Price : Negotiatable
Packaging Details : Plywood Delivery Time : 90 days
Payment Terms : T/T, L/C Supply Ability : 3 set per 3 month
Place of Origin: China Brand Name: HeJin
Certification: Third party calibration certificate(cost additional)

Detail Information

Test Sample: Automotive Condenser And Evaporator Vacuum Chamber Qty: 2
Leak Test Gas: Helium Control Mode: PLC Control
Detection Method: Vacuum Chamber Method Helium Charging Pressure: 4.0Mpa
Detectable Leak Rate: 2g/Year Cycle Time: 30seconds Per Chamber
Function: Helium Leak Test System For Automobile Parts Test Cycle: Automatic
High Light:

4.0Mpa 100s/chamber Helium Leak Testing

,

4.0Mpa Helium Leak Testing Equipment

,

4.0Mpa 100s/Chamber Testing Equipment

Product Description

Leak Testing Equipment For Automobile Parts Condenser And Evaporator Helium Leak Test



System composition:

The core components of the system are based on the modular principle, subdivided into individual units. The core components of each unit are famous brands, can guarantee the high stability of the equipment.

Including vacuum chamber unit, vacuum and leak detection unit, Helium charging and recovery unit, control system and electrical cabinet unit



Test principle:

According to the basic principles of helium leak detection, helium as a tracer gas, the work piece will be filled with helium in the vacuum chamber, and then through a helium leak detector leak can quickly and accurately determine the accuracy of the work piece leakage. Leak Testing Equipment



Basic function:

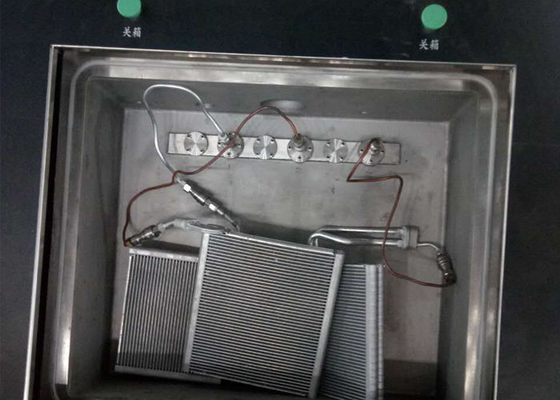

The operator puts the work piece into the fixture of vacuum chamber, and the fixture automatically seals the work piece. After the door is closed, the system can automatically complete gross leak detection, evacuation, helium fill, fine leak detection, helium recovery and so on; Fast cycle time, high precision of leak detection.



Parameter:

Workpiece Automotive Condenser and Evaporator, Leak Testing Equipment

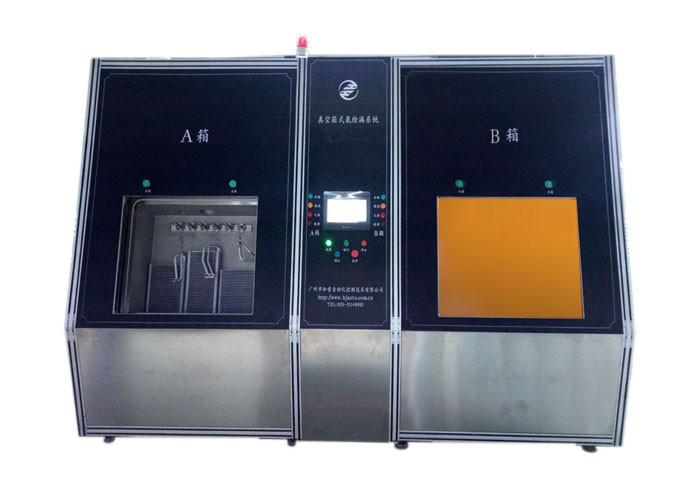

Vacuum Chamber

A Chamber

(Test Condenser)

B Chamber

(Test Evaporator)

Pressure for Gross Leak Test

Nitrogen / Compressed Air

3.5 Mpa (Downward adjustable)

Tracer Gas Helium
Reject Point 2g/y
Pressure of Fine Leak Test 4.0 Mpa (Downward adjustable)
Cycle Time 100s/chamber
Helium Recovery Recovery Rate ≥95%
Loading and unloading of products Manual
Test Cycle Automatic



4.0Mpa 100s/chamber Helium Leak Testing Equipment For Car Condenser 0
