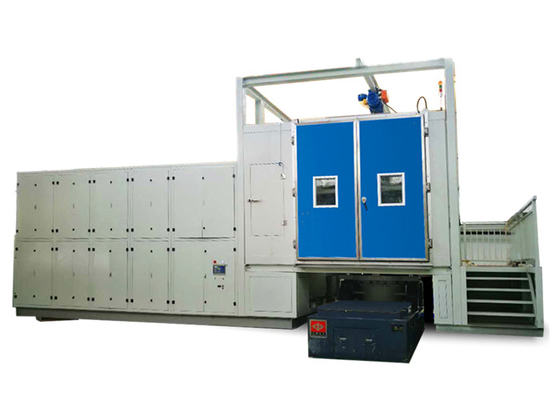

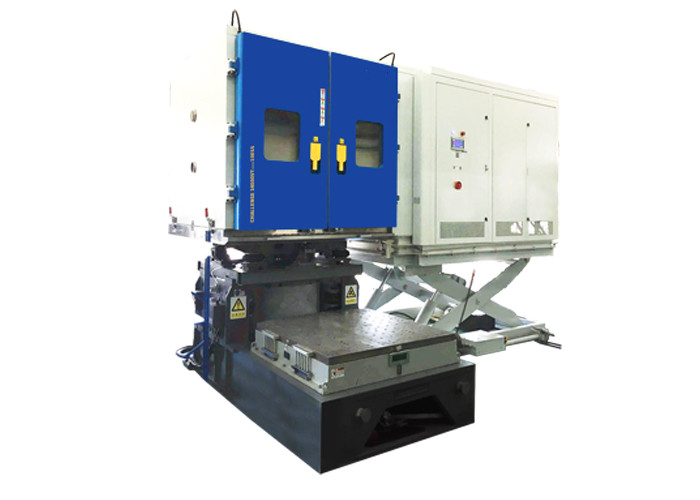

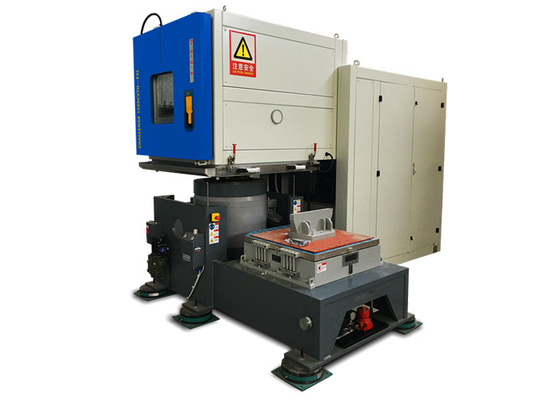

Temperature Humidity Vibration 500L Environmental Test System

Brand Name:	HeJin
Model Number:	HJAP08
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	2 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate(cost additional)

Product Name:

Environmental Test System With Temperature/Humidity/Vibration

Temperature Range:

-70°C~+150°C

Humidity Range:

20%~98% R.H.

Inner Dimension:

800*800*800mm

Temperature Deviation:

±2°C

Humidity Deviation:

-3~+2%R.H.

Heating / Cooling Rate:

1-15°C/min Optional

Function:

Environmental Test System For Auto Parts

Packaging Details:

Plywood

Highlight:

500L Environmental Test System

Temperature Humidity 500L Test System

Temperature Humidity Vibration 500L Test System

Product Description

Auto Parts Test Equipment Environmental Test System With Temperature/Humidity/Vibration

Standard:

IEC 60068-2-1 Environmental testing for electric and electronic products – Part 2-1: Tests methods – Test A: Cold;

IEC 60068-2-2 Environmental testing for electric and electronic products – Part 2-2: Tests methods – Test B: Dry heat;

IEC 60068-2-78 Environmental testing – Part 2-78: Tests methods – Test Cab: Damp heat, steady state;

IEC 60068-2-30 Environmental testing for electric and electronic products – Part 2-30: Tests methods – Test Db: Damp heat, cycle (12h+12h cycle)

MIL-STD-810F Method 501.2, 502.2

Feature:

With respect to the test requirements in the fields of aviation, aerospace, military, automobile and communication & electronics, we can provide the chambers with standard volumes from 500L to 4,000L, and customize the chamber combined with temperature, humidity and vibration of any volume according to the customer requirements. The unique blind plate sealing technology is adopted to ensure the perfect sealing of working chamber baseplate and vibrating table during the integrated vibration test. According to the technical requirements of the customers, the functions regarding fast cooling, liquid nitrogen, humidity and dry-air blast, etc. can be equipped. Auto Parts Test Equipment

Parameter:

Inside volume	500L(can be customize)
Temperature range	-70°C~+150°C
Humidity range	20%~98% R.H. (temperature operating range +20°C~+85°C)
Temperature fluctuation	±0.5 Auto Parts Test Equipment
Temperature deviation	±2°C
Humidity deviation	-3~+2%R.H.(over 75%R.H.), +5%R.H.(below 75%R.H.)
Standard load(kg steel ingot)	20
Heating / cooling rate	1-15°C/min optional (full average, -55~+85°C)
Remark	Above indicators are measured in no load at ambient temperature of 20±2°C
Internal dimension	800800800
Vibrostand size	Horizontal stand ≤500500; vertical stand ≤500500
Caster	4pcs
Inspection window	One, 450*450
Test hole	Two, diameter 100
Stainless steel shelf (2pcs in standard configuration)	Bearing 25kg/pc
Movable floor(2 or 3 pcs)	1 blind interface board, 1 vertical interface board, 1 horizontal interface board
Illumination	35W/12V
Colling mode	Water cooling (water temperature 7~28°C, water pressure 0.2~0.4Mpa)
Power supply	380V±10%/50Hz±1, three phase five wire system(3P+N+G)
