IEC 60068 Auto Parts Test Equipment Temperature Humidity Chamber

Minimum Order Quantity : 1 Set Price : Negotiatable
Packaging Details : Plywood Delivery Time : 40 days
Payment Terms : T/T, L/C Supply Ability : 5 set per month
Place of Origin: China Brand Name: HeJin
Certification: Third party calibration certificate(cost additional) Model Number: HH0811A

Detail Information

Product Name: Temperature And Humidity Chamber Inner Size: W500mm × H750mm × D600mm
Temperature Range: -40℃~+150℃ Humidity Range: 20-98%RH
Heating Rate: 3~5℃ / Min Cooling Rate: 0.7~1℃ / Min
Function: Environment Test Chamber For Auto Parts Standard: IEC 60068-2-2, IEC 60068-2-78
High Light:

IEC 60068 Auto Parts Test Equipment

,

IEC 60068 Auto Parts Humidity Chamber

,

IEC 60068 Auto Parts Temperature Chamber

Product Description

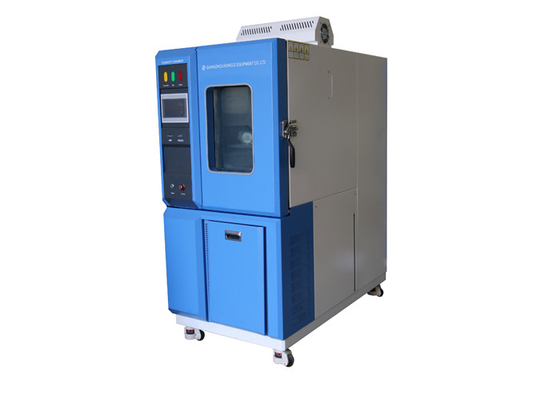

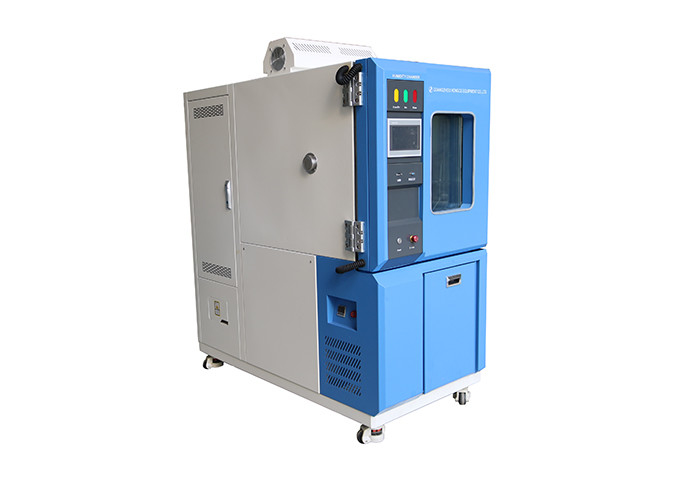

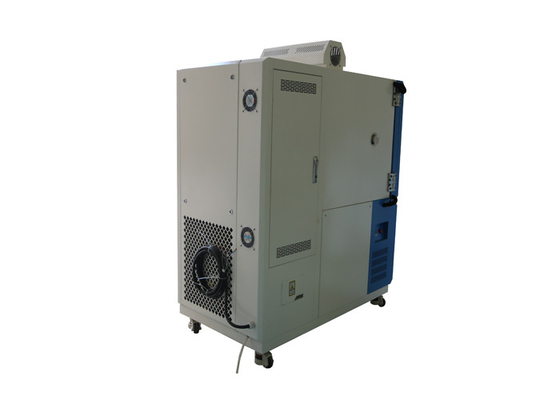

Auto Parts Test Equipment Temperature And Humidity Chamber For Reliability Test



Standard:

IEC 60068-2-1 Environmental testing for electric and electronic products – Part 2-1: Tests methods – Test A: Cold;

IEC 60068-2-2 Environmental testing for electric and electronic products – Part 2-2: Tests methods – Test B: Dry heat;

IEC 60068-2-78 Environmental testing – Part 2-78: Tests methods – Test Cab: Damp heat, steady state;

IEC 60068-2-30 Environmental testing for electric and electronic products – Part 2-30: Tests methods – Test Db: Damp heat, cycle (12h+12h cycle)



Application:

Provide constant humidity and heat, complex high and low temperature alternating and other test environment and test conditions for electronic components, industrial materials and finished products in development, applicable for electronic appliances, home appliance and automobile. Auto Parts Test Equipment



Feature:

Including 2 test modes:

Fix test: During the test, the target temperature and humidity will not change after reaching the target value. For example, do the test at 60℃and 95%RH.

Program test: During the test, the target temperature and humidity of each stage can be changed. For example, do the test at 60℃, 95%RH test for 4 hours, and then -40℃test for 4 hours.



Parameter:

Working volume 225L. Auto Parts Test Equipment
Inner size W500mm × H750mm × D600mm (customizable)
Outer size W1070mm × H1610mm × D1170mm
Temperature range -40℃~+150℃
Humidity range 20-98%RH (without load, without heating)
Performance
Temperature deviation ≤±2℃ (without load, under constant state)
Temperature uniformity ≤±2℃(without load, under constant state)
Temperature fluctuation ±0.5℃(without load, under constant state)
Humidity deviation ± 3% RH (above 75%); ± 5% RH (below 75%)
Heating rate 3~5℃ / min
Cooling rate 0.7~1℃ / min
Material
Outer wall material 3A cold-rolled steel sheet with electrostatic double-sided plastic spray, color is pearl white
Inner wall material SUS304 stainless steel plate
Thermal insulation material 100mm rigid polyurethane foam
System
Heating Special nickel alloy electric heater
Cooling Air cooling, refrigeration compressor
Humidifier Stainless steel integral steam humidifier
Water level control Automatic water level controller
Water supply mode Automatic water supply system for water storage tank
