Automobile High And Low Temperature Chamber Formula Constant Wet / Humidity
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsApp : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 40 days |
| Payment Terms : | T/T, L/C | Supply Ability : | 5 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Third party calibration certificate(cost additional) | Model Number: | HJAP05 |
|
Detail Information |
|||
| Product Name: | Vibration Test System For Auto Parts Reliability Test | Standard: | IEC 60068-2-6 |
|---|---|---|---|
| Max. Sine Force: | 300Kg.f Peak (3kN) | Max. Random Force: | 300Kg.f R.ms (3kN) |
| Max. Shock Force: | 600Kg.f Peak (6kN) | Shaker Dimensions: | 750×560×670 Mm (Vertical Table) |
| Vibration Direction: | Vertical+Horizontal | Test Types: | Sine Sweep, Random |
| Frequency Response Range: | 1- 4000Hz | Formula: | A(g)=(2πf)2Dcm/980≒A=0.002DmmF2 D=A/0.002F2 |
| Highlight: | 15 KVA Vibration Auto Parts Test,15 KVA Vibration Auto Parts Test Equipment,Vibration Auto Parts Test Equipment 15 KVA |
||
Product Description

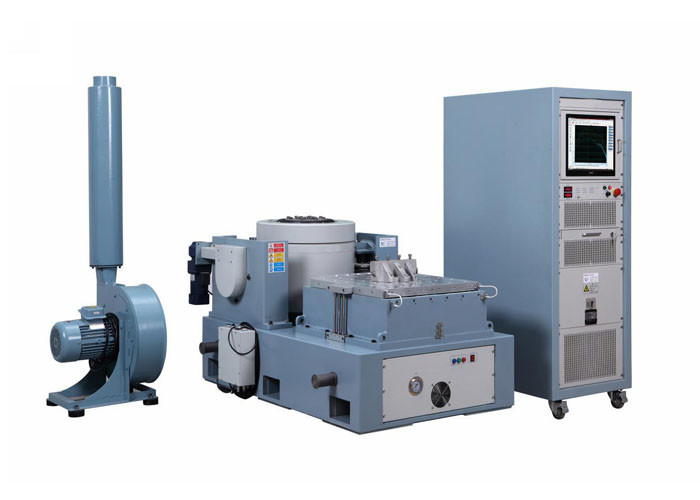

Auto Parts Test Equipment Vibration Test System For Auto Parts Reliability Test
Standard:
IEC 60068-2-6 Environmental testing – Part 2-6: Tests – Test Fc: Vibration (sinusoidal);
MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applications:
Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.
Automotive parts and systems - qualification testing. Auto Parts Test Equipment
Electronic assembly, computer equipment testing
Avionics and military hardware testing
Satellite component testing
Product and package testing
General stress screenin
Parameter:

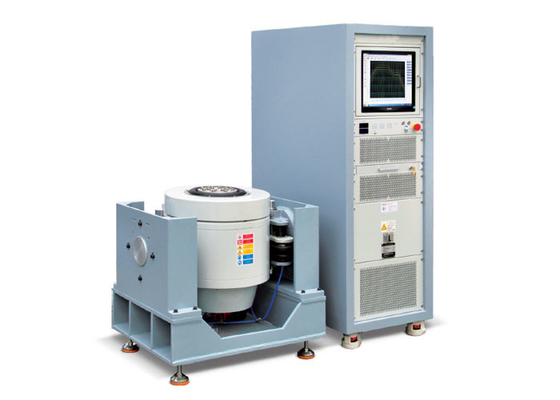

| Parameters of VG300-40 Electro-dynamic shaker | ||||
| Max. sine force | 300Kg.f peak (3kN) | |||
| Max. random force | 300Kg.f r.ms (3kN) | |||
| Max. shock force | 600Kg.f peak (6kN) | |||
| Frequency range | 1～4000Hz | |||
| Max. displacement | 38mm p-p | |||
| Max. velocity | 2.0m/s. Auto Parts Test Equipment | |||
| Max. acceleration | 100G (980 m/s2) | |||
| Max. load (sine) F=M.A | ||||
| 5G (49 m/s2) | 10G (98 m/s2) | 20G (196 m/s2) | 30G (294 m/s2) | |
| 57kg | 27kg | 12kg | 7kg | |
| Effective load | 120 kg | |||
| Vibration isolation frequency | 2.5 Hz | |||
| Diameter of armature | Ф150 mm | |||
| Mass of armature | 3kg | |||
| Table screw | 13×M8 | |||
| Flux leakage | ＜10gauss | |||
| Allowable eccentric moment | 300N.m | |||
| Shaker dimensions | 750×560×670 mm (Vertical table) | |||
| Shaker weight | About 560Kg | |||
| Amp3K digital switch power amplifier | ||||
| Output power | 4KVA | |||
| Output voltage | 100V | |||
| Output current | 30A | |||
| Power amplifier console | 880 ×590 ×1680 mm | |||
| Weight | 230KG | |||
| Servo protection system | ||||
| Functions: | Temperature, air pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, input phase loss, etc. | |||
| Digital vibration controller | ||||
| Hardware configuration: |
channels input, 1-channel output Function: Sine, Random, Shock |
|||
| Control computer | 1 set | |||
| Software | Chinese / English instructions are provided, and the software is available for time-domain and frequency-domain analysis, signal source and sine frequency sweep analysis, etc. It also can automatically generate WORD test report, display and store signal and data, and set testing parameters and analysis function. | |||
| Operating system | Win7/10 | |||
| Acceleration sensor LAB |
Frequency range:0.3 to 7000Hz Sensitivity: 30pC/g Temperature range: -40℃ to 160℃ |
|||
| VT640 Vertical table | ||||
| Material | Aluminum Alloy | |||
| Dimension | 400 x 400 mm | |||
| Fixing hole | M8 durable and wear-resistant stainless steel screw sleeve | |||
| Frequency of use | 2000 Hz | |||
| Weight | 15 KG | |||

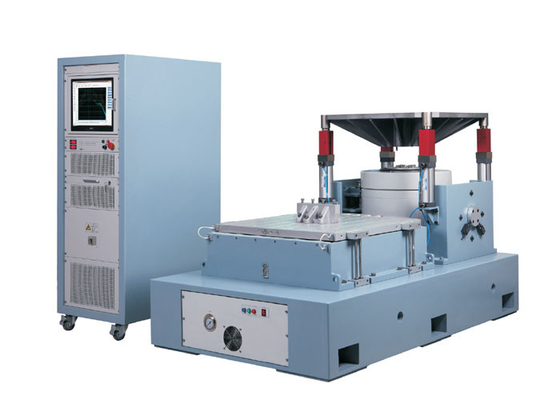

| H00404 Horizontal slip table | ||||
| Material | Aluminum-magnesium alloy with surface hard anodized | |||
| Dimension | 400mm×400mm | |||
| Fixing hole | M8 durable and wear-resistant stainless steel screw sleeve | |||
| Frequency of use | 2000Hz | |||
| Weight | 20KG | |||
| BL-300 cooling blower (including silencer) | ||||
| Cooling method | Air cooling | |||
| Blower power | 1.1KW | |||
| Flow rate | 1404m3/h | |||
| Electrical requirement | ||||
| Power | Three phase,380V/50Hz, 15 KVA | |||
| Ground resistance | ≤4Ω | |||
