GB15742 Standard 3kw Electric Horn Durability Test Bench

Name: GB15742 Standard 3kw Electric Horn Durability Test Bench
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HJAP02
Availability: InStock

Brand Name:	HeJin
Model Number:	HJAP02
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	10 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate(cost additional)

Product Name:

Electric Horn Durability Test Bench HJAP02

Uasge:

Performance Test For Horn For Motor Vehicles

Standard:

GB 15742, QC/T 30

Voltage:

Measurement Range 0-50V

CURRENT:

Measurement Range 0-10A

Horn Base Frequency:

Measurement Range 0-1000Hz

Horn Sound Level:

0-13dB

Test Times:

0-9999999 Time

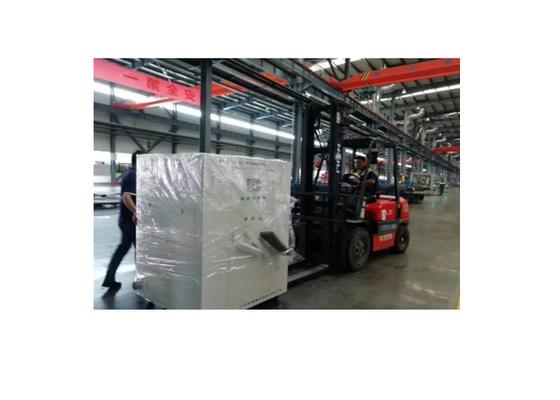

Packaging Details:

Plywood

Highlight:

3kW Electric Horn Durability Test Bench

GB15742 Electric Horn Durability Test Bench

GB15742 3kw Durability Test Bench

Product Description

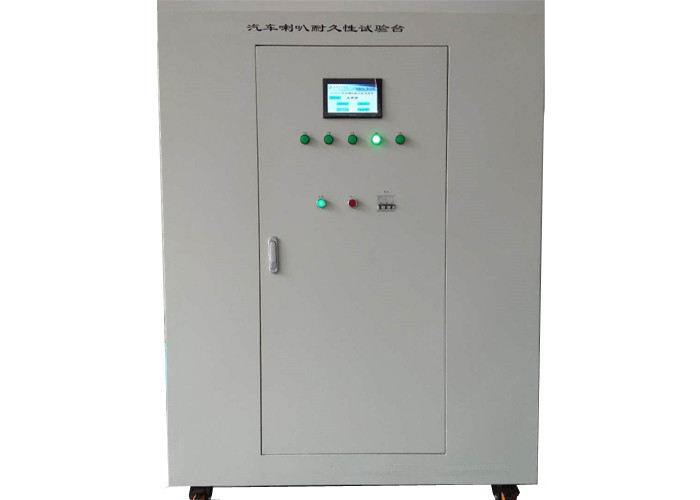

Auto Parts Test Equipment Electric Horn Durability Test Bench

Standard:

GB 15742 Performance requirements and test methods of horn for motor vehicles;

QC/T 30 Technical specification of electric horn for motor vehicles;

Application:

The electric horn durability test bench is a device used to test the durability of car electric horns. It comprehensively judges the working voltage, current and sound decibels of the electric horn, checks whether the electric horn is qualified every time, and finally count the total number of actions. Auto Parts Test Equipment

Feature:

This test bench can test two kinds of electric horns of 12V or 24V, and can test up to 5 electric horns of the same specification at the same time. The working voltage, current and sound decibels of the electric horn can be set freely according to the user's needs. The important data of the test bench has the power-off protection function. After the power is turned back on, just press the "Run" button in the test interface to continue. The test is simple and easy to understand.

Specification:

Power	Single-phase AC	220V±10%, 50Hz, 3kW
	Provide independent standard anti-interference ground wire. Auto Parts Test Equipment
Use environment	Temperature	0-40°C
	Relative humidity	30-85%R.H.
	There should be no corrosive gas, explosive gas, dust, etc. that affect the equipment
Voltage	Measurement range	0-50V
	Accuracy	±1%
Current	Measurement range	0-10A
	Accuracy	±1%
Horn base frequency	Measurement range	0-1000Hz
	Accuracy	±1%
Horn sound level	0-13dB
Test times	0-9999999 time
Working temperature	15-40°C
