Product Name:	Safety Test System For Electrically Vehicle	Test Item:	7 Items
Uasge:	Auto Parts Test Equipment For Complete Vehicle Safety Test	Standard:	ISO 6469-1
Test Accuracy:	Basic Accuracy Of Safety Test Is 1.5%	Test Channel:	10 Channels
Insulation Resistance Measurement Range:	0.05-99.99-999.9-3000 MΩ	Leakage Current Measurement Range:	0.50-9.999-20.00 MA
Highlight:	7 Items Safety Test System , ISO 6469-1 Safety Test System , ISO 6469-1 Test System For Vehicle

Product Description

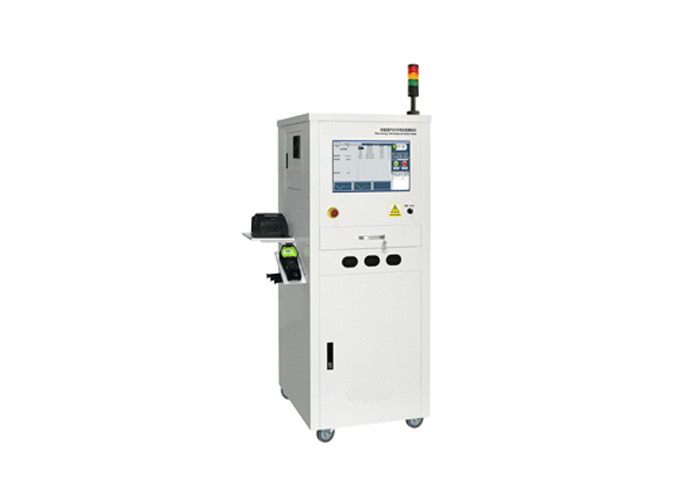

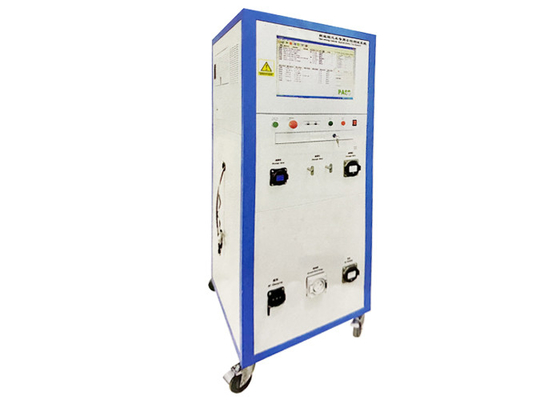

Auto Parts Test Equipment Safety Test System For Electrically Vehicle

Standard:

ISO 6469-1 Electrically propelled road vehicles-Safety specifications-Part1: On-board rechargeable energy storage system (REESS)

GB/T 18384.1 Electrically propelled road vehicles-Safety specifications-Part1: On-board rechargeable energy storage system (REESS)

GB/T 18487.1 Electric vehicle conductive charging system-Part 1: General requirements

GB/T 20234.1 Connection set for conductive charging of electric vehicles-Part 1: General requirements

Feature:

1. Multifunctional integration: AC and DC withstand voltage, charging socket insulation, vehicle insulation, insulation resistance monitoring, leakage current, potential equanlization, fast charging function, slow charging function eight in one;

2. High test accuracy: basic accuracy of safety test is 1.5%, and electrical parameter measurement accuracy is 0.5%;

3. Record the VIN number, VSN number and main parts number of the vehicle, and print a test result for each vehicle;

4. Bar code identification, automatic matching, automatic and intelligent testing;

5. Data storage, query screening, information management;

6. Perfect protection: the device is not plugged in and the high voltage detection is not started; unplugging the plug in the detection state will cut off the power supply to the socket;

7. Extendable docking with MES system; Auto Parts Test Equipment

Parameter:

Potential equanlization
Test channel	10 channels
Test method / no-load output voltage	four-wire system, <12V
Output current setting range	DC:1.00-5.00A 50/60Hz
Output current accuracy	±(1.5% setting value+0.20A)
Ground resistance setting range	Upper limit: 0-600 mΩ; lower limit: 0-600 mΩ; 0=off
Zero resistance	0-200 mΩ
Ground resistance measurement range	0-600 mΩ
Ground resistance measurement accuracy	±(1.5% reading value+3 mΩ)
Test time setting range/accuracy	0.0, 0.1-999.9s; 0.0=continue output; ±(0.1% setting value+0.05s)
Charging socket insulation test; Auto Parts Test Equipment
Rated output load/current		1VA(1000V/1mA), 1mA
Output voltage ripple		Resistance load, 1000V/1mA, <5%
Output voltage setting range/accuracy		DC:100-1000V Continuous Adjustable, ±(1.5% setting value+3V)
Insulation resistance setting range		Upper limit: 0.1-3000 MΩ; 0=off; lower limit: 1-3000 MΩ
Resistance compensation		>30 MΩ
Insulation resistance measurement range		0.05-99.99-999.9-3000 MΩ
Insulation resistance measurement accuracy		100-499V:<100 MΩ: ±(5% reading value+0.5MΩ); 100 MΩ-1000 MΩ: ±(10% reading value+5MΩ)
		500-1000V:<100 MΩ: ±(2% reading value+0.2MΩ); 100 MΩ-1999 MΩ: ±(5% reading value+2MΩ); 2000 MΩ-3000 MΩ: ±(10% reading value+5MΩ);
Delay time setting range		0.5-999.9s
Test time setting range/accuracy		0.0, 0.1-999.9s; 0.0=continue output; ±(0.1% setting value+0.05s)
Vehicle insulation test
Insulation resistance setting range		Upper limit: 0, 0.00-100.00MΩ; 0=off; lower limit: 0.00-100.00 MΩ
Insulation resistance measurement range		0.05-99.99-999.9-3000 MΩ
Insulation resistance measurement accuracy		±(5% reading value +0.03% range)
Test time setting range		4.0-999.9s; 0.0=continue output
Test time setting accuracy		±(0.1% setting value+0.05s)
Insulation monitoring test
Test time setting range		4.0-999.9s; 0.0=continue output
Test time setting accuracy		±(0.1% setting value+0.05s)
AC withstand voltage test
Withstand voltage test type		Cold withstand voltage test
Rated output load		200VA (AC: 5000V/40mA)
Output voltage adjustment rate		<2%(No load to full load)
Output voltage setting range		AC: 100-5000V; 50Hz/60Hz
Output voltage accuracy		±(1.5% setting value+3V)
Breakdown current setting range		Upper limit: 0.000-9.999-40.00mA; lower limit: 0.000-9.999-40.00mA 0.000=off
Zero current		0.000-2.000mA
Breakdown current measurement range		0.050-9.999-40mA
Breakdown current measurement accuracy		±(1.5% setting value+0.005mA)
Rise time/slow down time		0.0-999.9s
Test time setting range		0.0, 0.1-999.9s; 0.0=continue output
Test time setting accuracy		±(0.1% setting value+0.05s)
DC withstand voltage test
Withstand voltage test type		Cold withstand voltage test
Rated output load		60VA (DC: 6000V/10mA)
Output voltage adjustment rate		<2%(No load to full load)
Output voltage setting range		DC: 1000-6000V; 50Hz/60Hz
Output voltage accuracy		±(1.5% setting value+3V)
Breakdown current setting range		Upper limit: 0.000-9.999-10.00mA; lower limit: 0.000-9.999-10.00mA 0.000=off
Zero current		0.000-2.000mA
Breakdown current measurement range		0.050-9.999-10mA
Breakdown current measurement accuracy		±(1.5% setting value+0.005mA)
Rise time/slow down time		0.0-999.9s
Test time setting range		0.0, 0.1-999.9s; 0.0=continue output
Test time setting accuracy		±(0.1% setting value+0.05s)
Leakage current test
Leak type setting		Single phase (static, dynamic)
Output voltage ratio		1.1 times input voltage (output by isolation transformer)/arbitrarily set voltage (output by variable frequency power supply)
Output voltage setting range		AC: 0.0-300.0V
Output voltage measurement range		AC: 5.0-300.0V
Output voltage measurement accuracy		±(1.5% reading value+3V)
Leakage current setting range		Upper limit: 0.000-5.000mA; lower limit: 0.000-5.000mA; 0.000=off
Zero current		0.000-2.000mA
Leakage current measurement range		0.50-9.999-20.00 mA
Leakage current measurement accuracy		±(1.5% reading value+5 words)
Test time setting range		0.0, 0.1-999.9s; 0.0=continue output
Test time setting accuracy		±(0.1% setting value+0.05s)
