13005002300mm Mechanical Pendulum Impact Hammer Tester

Brand Name:	HeJin
Model Number:	HC9921A
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Usage:

Impact Testing Machine

Standard:

IEC 60668-2-75

Impact Height:

According To Standard And Can Adjust

Energy:

2J, 5J, 10J, 20J, 50J

Drop Height:

Scale Display

Dimension:

1300*500*2300mm

Packaging Details:

plywood

Highlight:

Mechanical Pendulum Impact Hammer Tester

13005002300mm Pendulum Impact Hammer

13005002300mm Mechanical Pendulum Hammer Tester

Product Description

IEC60668-2-75 Pendulum Hammer Impact Testing Machine For Severities Of 2 J And Above

Standard:

IEC 60668-2-75-2014 Environmental testing – Part 2-75: Tests – Test Eh: Hammer tests clause 5 Test Eha: Pendulum hammer.

IEC62262 Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK code)

Application:

This device is suitable for mechanical impact strength test to electric cabinets and other sheet metal, shell of Non metal electric energy metering cabinet, substation cable switchboard and cable junction box.

Test sample:

The shell of electric energy metering cabinet, substation cable switchboard and cable junction box and similar equipment

Feature:

The upper and lower impact point height is adjustable, and the impact angle 0-90° is adjustable. The device is a high energy pendulum impact device for 2J and above.

Parameters:

Model	HC9921A
Pendulum rod	Length: 1000mm; external diameter: 9mm, used for 1J and 2J; 15.9mm is used for 5J,10J, 20J and 50J; steel pipe wall thickness: 0.5mm. Composition of the equivalent mass with impact element
Pendulum rod angle	0-90 ° adjustable, scale display
Impact point	Up and down adjustable, stroke 200-1200mm, height can be customized
Impact element	2J, 5J, 10J, 20J, 50J striking elements
Drop height	Scale display
Release mode	Mechanical
Dimension	13005002300mm

Height of fall:

Energy/J	2	5	10	20	50
Equivalent mass kg(±2%)	0.5	1.7	5	5	10
Height of fall mm±1%	400	300	200	400	500

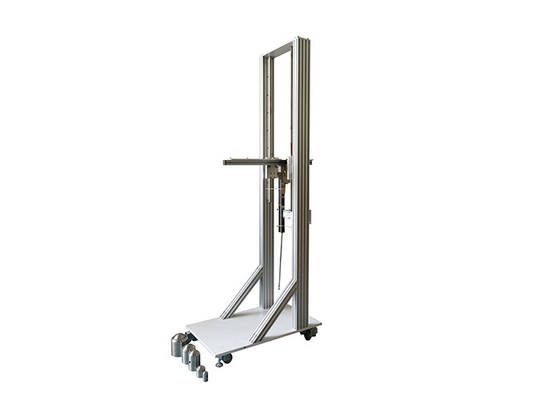

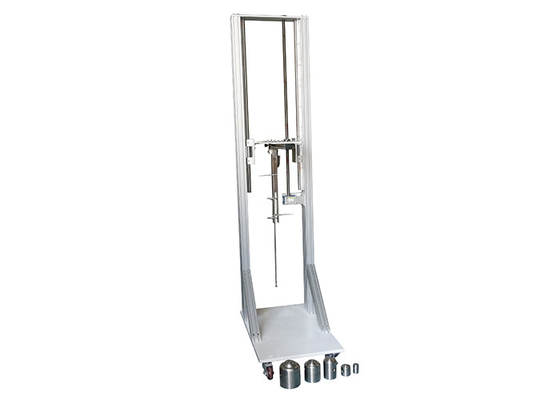

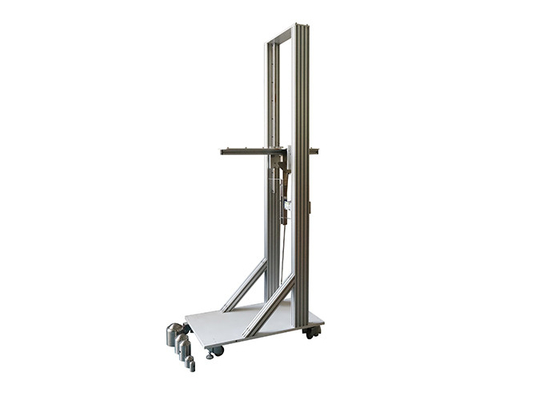

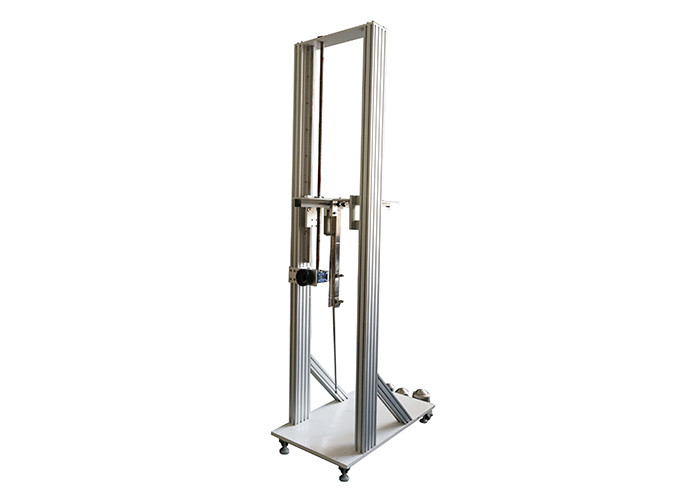

1300*500*2300mm Mechanical Pendulum Impact Hammer Tester 0
