Automotive Battery Explosion-Proof Test Chamber for EV & Power Battery Safety Validation | Thermal Abuse, Overcharge & Fire Containment Testing

Brand Name:	HeJin
Model Number:	HJ-APTE0105
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	L/C,T/T,D/P
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Viewing Window:

250*250mm Double-layered Tempered Glass, Transparent Viewing Window With Stainless Steel Mesh

Control Method:

PLC + Button Control

Test Chambers:

Power Supply:

AC 220V

Power:

200W

Weight:

65kg

Packaging Details:

Plywood

Highlight:

Automotive battery explosion-proof test chamber

EV battery safety validation equipment

Power battery thermal abuse testing chamber

Product Description

Automotive Battery Explosion-Proof Test Chamber for EV & Power Battery Safety Validation

As electric vehicles and energy storage systems continue to evolve, battery safety has become a non-negotiable priority. The HeJin Automotive Battery Explosion-Proof Test Chamber is engineered to protect personnel, facilities, and test integrity during high-risk battery abuse testing.

Manufactured by HeJin, a source factory specializing in Auto Parts Test Equipment, this dual-layer explosion-proof chamber combines reinforced structural design, intelligent control, and reliable safety interlocks. It allows engineers to reproduce real-world failure scenarios—such as thermal runaway or internal short circuits—while maintaining a controlled and observable testing environment.

From R&D labs to automotive OEM validation centers, this equipment supports safer, more repeatable, and regulation-ready battery testing.

Key Features

Dual-Layer Explosion-Proof Structure
Reinforced inner and outer chambers effectively contain shock waves, flames, and debris during battery failure tests.
High-Strength Steel Construction
Industrial-grade materials ensure long-term durability and resistance to high temperature and pressure.
Intelligent Control System
PLC + touchscreen interface enables precise test control, real-time monitoring, and data recording.
Multi-Level Safety Protection
Includes pressure relief design, emergency stop, automatic power cut-off, and alarm systems.
Excellent Sealing Performance
Prevents flame leakage, gas escape, and external contamination during extreme testing events.

International Standards Compliance

UN 38.3 - Transportation of Dangerous Goods – Lithium Battery Testing
T.5 External Short Circuit, T.6 Impact / Crush, T.7 Overcharge
IEC 62660-2
Secondary lithium-ion cells for propulsion of electric road vehicles – Reliability and abuse testing
IEC 62133-2
Safety requirements for portable sealed secondary lithium cells and batteries
ISO 12405-4
Electrically propelled road vehicles – Test specification for lithium-ion traction battery packs and systems
GB/T 31485 / GB/T 31467 Series
Safety and performance requirements for EV power batteries

Technical Specifications

Parameter	Specification
Chamber Structure	Dual-layer explosion-proof design
Inner Chamber Material	High-strength carbon steel
Outer Chamber Material	Reinforced steel plate
Chamber Door	Heavy-duty hinged door with safety lock
Observation Window	Explosion-proof glass
Temperature Range	RT ~ +200°C (customizable)
Temperature Control Accuracy	±1°C
Pressure Relief System	Automatic pressure release
Control System	PLC + touch screen
Power Supply	AC 380V / 50Hz (customizable)
Safety Protection	Emergency stop, alarm, auto power-off
Exhaust System	High-temperature resistant exhaust duct
Fire Containment	Flame-retardant internal design
Data Monitoring	Real-time temperature & status display

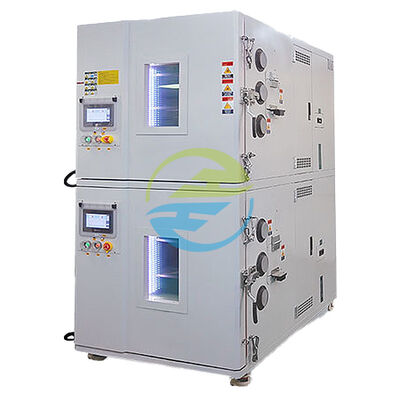

Product Image

Frequently Asked Questions

Can the chamber be customized for large battery packs?

Yes. Chamber dimensions and load capacity can be customized according to battery size and test requirements.

Is the system suitable for lithium-ion battery fire testing?

Yes. The chamber is designed to safely contain fire, explosion, and high-temperature events during battery abuse tests.

What safety protections are included?

The system includes explosion-proof structure, emergency stop, automatic power cut-off, pressure relief, and alarm functions.

Does it support international testing standards?

Yes. The equipment is designed to support major international battery safety standards such as UN 38.3, IEC, ISO, and GB standards.

Is on-site installation support available?

Yes. HeJin provides remote or on-site installation and commissioning support depending on project requirements.
