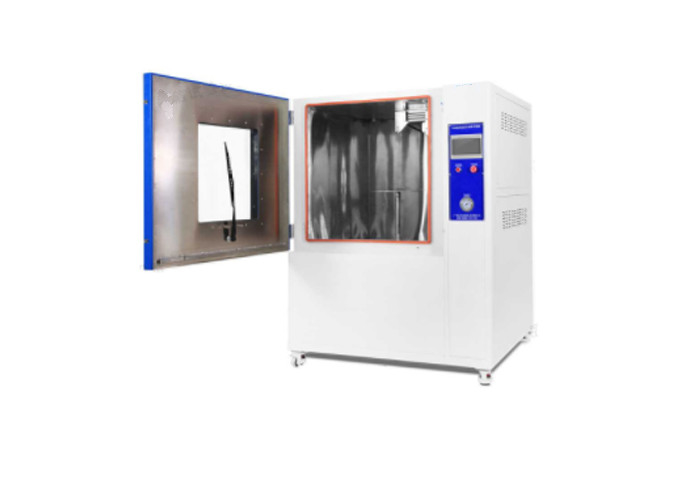

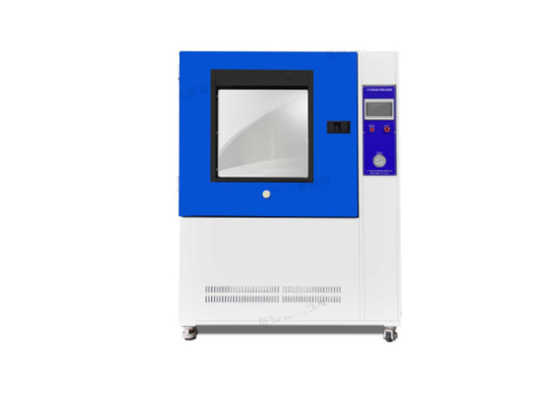

IPX9K Steam Jet Cleaning Test Chamber

Product Details:
Place of Origin: China
Brand Name: HeJin
Certification: Third party calibration certificate(cost additional)
Model Number: HJ-IPX9K-1000L
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 40 days
Payment Terms: T/T, L/C
Supply Ability: 10 set per month

Detail Information

Product Name: IPX9K High-Pressure/Steam-Jet Cleaning Test Chamber Inner Size: 1000 X1000x1000mm
Uasge: IPX9K Auto Parts Test Equipment Standard: ISO 20653, DIN40050-9, IEC60529-1
Jet Nozzle: 4 Pcs Location Of Nozzles: 0°, 30°, 60°, 90°
Distance From Nozzle To Sample: 100-150mm Water Flow: 14-16L/min
Jet Water Pressure: 8000 - 10000Kpa Turntable Rotation: 4-10r/min
High Light:

IPX9K Steam Jet Cleaning Test Chamber


Steam Jet Cleaning Test Chamber


IPX9K Steam Jet Test Chamber

Product Description

Auto Parts Test Equipment High-Pressure/Steam-Jet Cleaning IP9K Test Chamber



IEC60529 degree of protection provided by enclosures (IP Code) of the IPX9K;

DIN40050-9 IP degrees of protection provided by enclosures for the electrical equipment in road vehicles for protecting the electrical equipment inside the enclosure against the effects of the ingress of solid foreign objects, including dust (protection against foreign objects),protecting the electrical equipment inside the enclosure against the effects of the ingress of water (protection against water);

ISO 20653-2013 Road vehicles — Degrees of protection (IP code) — Protection of electrical equipment against foreign objects, water and access, figure 7- Test set-up for determining the protection against high-pressure/steam-jet cleaning; degree of protection against water 9K;



It is used for the testing of IPX9K. Mainly used in Auto parts field, Road vehicles , and Outdoor lighting field- Street lighting, landscape lights, LED flood lights, Outdoor cabinet field-Outdoor cabinet industry such as distribution box, battery box, battery cabinet, etc. Auto Parts Test Equipment



1. The outer chamber of the equipment is made of high quality stainless steel, and the inner chamber and the turntable are all made of SUS304 stainless steel, which has high corrosion resistance.

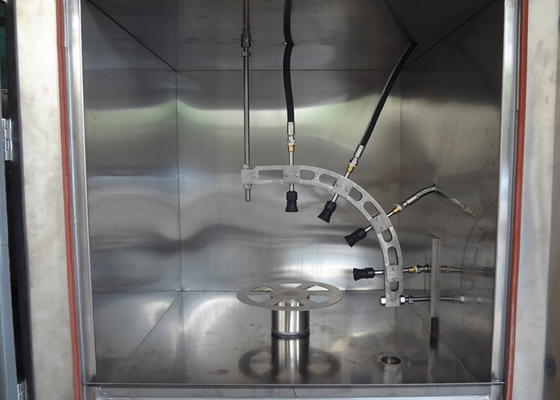

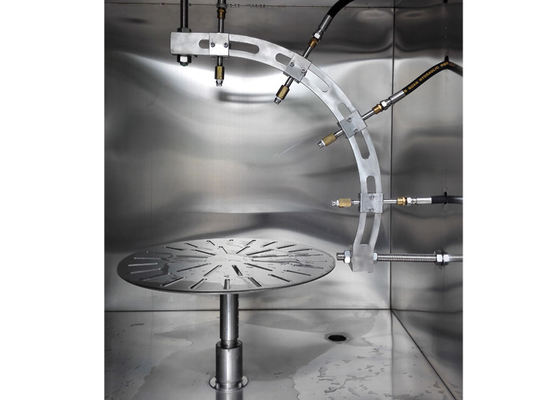

2. There are 4 nozzles for the equipment, the nozzle angle is 0°, 30°, 60°, 90°, and the distance is 100-200mm.

3. 7-inch color touch screen + Panasonic PLC system, the sample can also be controlled by the system, and the remote control function is added.

4. The testing machine test temperature is up to 80±5°C, and the test water pressure can reach 8000~10000Kpa.

5. Inside water tank, cycling use of water.



Model HJ-IPX9K-1000L
Inner size 1000 x1000x1000mm (customizable)
Outer size 1200x980x1750mm
Number of nozzles 4
Location of nozzles 0°, 30°, 60°, 90°, average distribution vertical direction
Distance from nozzle to sample 100-200mm,manully adjustment
Water flow 14-16L/min. Auto Parts Test Equipment
Water temperature Room temperature or 80±5°C (the temperature deviation can be agreement)
Spray pressure 8000~10000Kpa
Rotary table Diameter: Φ600mm. Load bearing≤50kg
Rotating speed of turntable 4-10r/min (precisely adjustable)
Test time 120s (Stay in each position for 30s)
Power AC380V, 50Hz, 100w (customizable)
Protector Leakage protection, short circuit protection, water shortage protection
