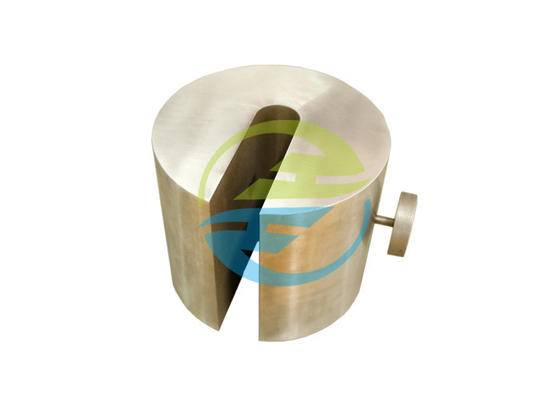

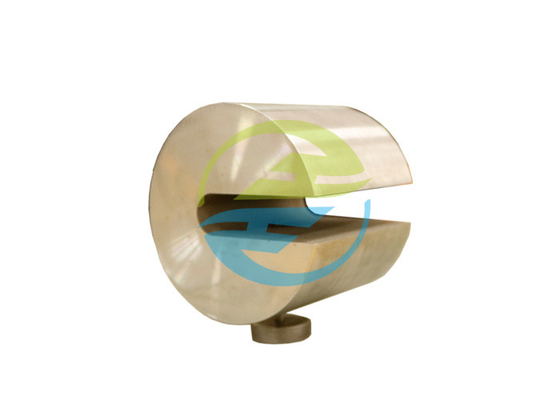

IEC 60335-2-9 Household Appliance Test Equipment Load For Testing Rotating Spits Mass 4.5kg

Brand Name:	HeJin
Model Number:	HJ0629
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	20 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate/ CE(cost additional)

Name:

Load For Testing Rotating Spits

Standard:

IEC 60335-2-6, IEC 60335-2-9

Mass:

4.5kg

Material:

Stainless Steel

Application:

Kitchen Applicance,Home Appliance

Size:

Ф100.5*85.3mm

Packaging Details:

Plywood

Highlight:

IEC 60335-2-9 Household Appliance Test Equipment

Rotating Spits Household Appliance Test Equipment

Product Description

Home Appliances Test Equipment Load For Testing Rotating Spits Mass 4.5kg

Standard of Load For Testing Rotating Spits:

IEC 60335-2-6 Household and similar electrical appliances – Safety – Part 2-6: Particular requirements for stationary cooking ranges, hobs, ovens and similar appliances clause 3.1 .9.104 and Figure 103 – Load for testing rotating spits;

IEC 60335-2-9 Household and similar electrical appliances – Safety – Part 2-9: Particular requirements for grills, toasters and similar portable cooking appliances clause 3 .1.9.111 and Figure 102 – Load for testing rotating spits

Application of Load For Testing Rotating Spits:

Rotating spits in ovens or grills are operated with the load on the rotating spit as shown in Figure 1 03. The appliance is operated taking into account the instructions with regard to

– the heating elements to be operated;

– the setting of the thermal control;

– the position of the door and grill pan.

In the absence of such instructions, the control is adjusted to its highest setting and the door is fully open or is placed in the most unfavourable intermediate position in which it may be left.

Any grill pan is placed in its lowest position.

Parameter of Load For Testing Rotating Spits:

Parameters / Model	HJ0629
Material	Stainless steel
Size	Ф100.5*85.3mm
Load	Mass approximately 4.5 kg

IEC 60335-2-9 Household Appliance Test Equipment Load For Testing Rotating Spits Mass 4.5kg 0
