Product Description

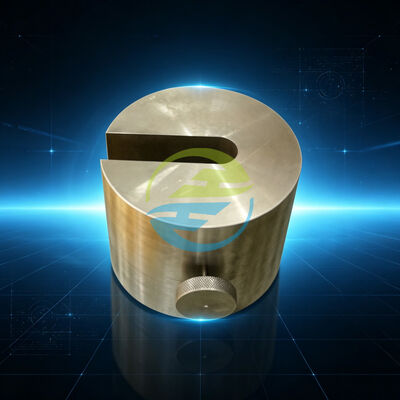

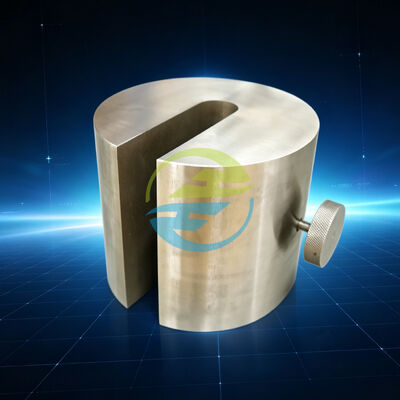

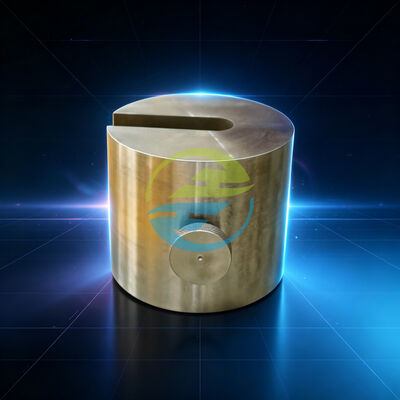

HeJin Rotary Grill Load Testing Fixture is a precision stainless steel load device designed for evaluating the load-bearing capability of rotating spits used in rotary grills and similar portable cooking appliances.

Designed with reference to GB 4706.14-2008 Clause 3.1.9.102 and Figure 102, as well as IEC 60335-2-9, the fixture provides a standardized physical load for rotary grill testing. With a mass of 4.5 kg and dimensions of Ø100.5 * 85.3 mm, it is suitable for household appliance laboratories, quality inspection departments, product development and compliance testing.

Product Introduction

Rotary Grill Load Testing Fixture for Reliable Spit Load Evaluation

A rotating grill can look simple from the outside, but the rotating spit carries an important mechanical responsibility during operation. When the appliance is working with its specified load, the spit and its supporting structure must be able to maintain reliable operation.

The HeJin Rotary Grill Load Testing Fixture provides a standardized load for this type of evaluation.

The fixture is manufactured from stainless steel and has a specified mass of 4.5 kg. Its dimensions are Ø100.5 * 85.3 mm, matching the supplied product specification. The fixture is placed on the rotating spit according to the applicable test procedure to evaluate the appliance's ability to operate with the required load.

The device is particularly useful for manufacturers and laboratories that need a dedicated household appliance testing equipment accessory rather than an improvised weight.

According to the standard text, rotary grills are operated with the load placed on the rotating spit shown in Figure 102. The relevant requirement is identified in the supplied reference as Clause 3.1.9.102.

For customers developing products for international markets, using a clearly defined test load helps make laboratory procedures more consistent and easier to document.

Product Features

1. Standard-Referenced Load Design

The fixture is designed with reference to GB 4706.14-2008 Clause 3.1.9.102 and Figure 102, corresponding to the rotary grill load test requirement.

2. 4.5 kg Standard Test Load

The supplied technical specification identifies the fixture mass as 4.5 kg, providing a defined load condition for rotary spit testing.

3. Stainless Steel Construction

The load device is manufactured from stainless steel, providing a solid and durable structure suitable for repeated laboratory testing.

4. Compact Cylindrical Load Form

The specified overall size is Ø100.5 * 85.3 mm, giving the fixture a compact form for positioning on the rotating spit.

5. Dedicated Testing Accessory

Instead of using general-purpose weights, the fixture is purpose-designed for rotary grill load testing.

Applicable Standards

GB 4706.14-2008 — Clause 3.1.9.102

The supplied equipment reference identifies:

GB 4706.14-2008, Clause 3.1.9.102, Figure 102

The clause specifies that rotary grills are operated with the load placed on the rotating spit shown in Figure 102.

The Chinese national standard database records GB 4706.14-2008 as the former standard for household and similar electrical appliances — particular requirements for grills, toasters and similar portable cooking appliances. It has subsequently been replaced by GB/T 4706.14-2024.

IEC 60335-2-9

IEC 60335-2-9 — Household and similar electrical appliances – Safety – Particular requirements for grills, toasters and similar portable cooking appliances.

Technical Specifications

HeJin Manufacturing Advantages

Direct Factory Supply

HeJin is not positioned simply as a reseller of laboratory accessories. The company integrates R&D, engineering design, manufacturing and technical service.

According to HeJin's company information, the company was founded in Guangzhou in 2012 and focuses on industrial testing equipment and production-line/laboratory testing solutions. Its product portfolio includes household appliance test equipment, mechanical strength testing equipment, leak testing equipment, IP testing equipment and automotive component testing equipment.

Learn more about HeJin

Engineering Rather Than Simple Trading

For customers with non-standard test requirements, working directly with the manufacturer can make technical communication much easier.

HeJin's factory information specifically describes OEM/ODM support and engineering assistance from development through production.

Test Objects

• Rotary grills
• Rotisserie appliances
• Portable cooking appliances with rotating spits
• Household rotary cooking appliances
• Rotary grill assemblies

IEC 60335-2-9 covers household and similar portable cooking appliances with cooking functions including baking, roasting and grilling, and specifically includes rotary grills and rotisseries within its scope.

FAQ

1. What is the Rotary Grill Load Testing Fixture used for?

It is used to provide the specified load for evaluating the load-bearing capability and operation of the rotating spit in rotary grills.

2. What is the test load?

The supplied product specification identifies the load mass as 4.5 kg.

3. What is the fixture made of?

The fixture is made of stainless steel.

4. What are the dimensions?

The specified dimensions are Ø100.5 * 85.3 mm.

5. Which standard is the fixture based on?

The supplied reference identifies GB 4706.14-2008 Clause 3.1.9.102 and Figure 102, with IEC 60335-2-9 as the international reference.

6. Is IEC 60335-2-9 still applicable?

IEC currently lists IEC 60335-2-9:2019 as the valid edition.

7. Is this a complete rotary grill testing machine?

No. It is a dedicated test load fixture for rotary spit testing rather than a complete automated test bench.
