IEC 60335-2-9 Household Appliance Test Equipment Load For Testing Rotating Spits Mass 4.5kg
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsApp : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 30 days |
| Payment Terms : | T/T, L/C | Supply Ability : | 10 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Third party calibration certificate/ CE(cost additional) | Model Number: | HJ0613A |
|
Detail Information |
|||
| Standard: | IEC 60335-2-15 | Output Voltage: | 0-250V |
|---|---|---|---|
| Test Station: | Single | Application: | Kitchen Applicance,Home Appliance |
| Control: | PLC Control, Touch Screen Operation | Withdrawn Rate: | 10 Times Per Minute |
| High Light: | Cordless Kettle Endurance Test Equipment,250V Kettle Endurance Test Equipment |
||
Product Description

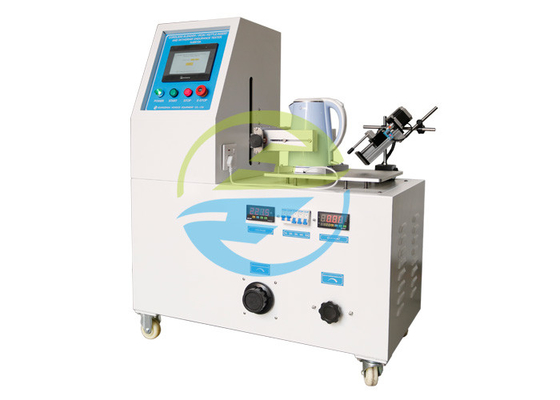

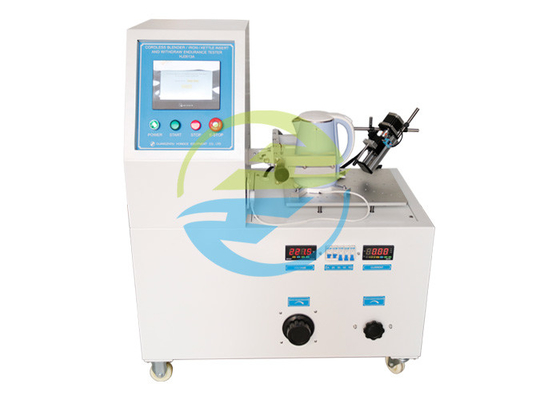

Home Appliances Cordless Kettle Endurance Test Equipment Voltage Output 0-250V
Standard of Cordless Kettle Endurance Test Equipment:
IEC 60335-2-15 ‘Household and similar electrical appliances – Safety – Part 2-15: Particular requirements for appliances for heating liquids’ clause 22.103.
Application of Home Appliances Test Equipment:
The appliance coupler of cordless appliances shall be constructed to withstand the stresses occurring during normal use.
Feature Cordless Kettle Endurance Test Equipment:
The two live pins of the cordless kettles are connected together and an external resistive load is connected in series with the supply. The external load is such that the current is 1.1 times rated current.
The cordless kettles is placed on its stand and withdrawn 10000 times at a rate of approximately 10 times per minute. The test is continued without current flowing for a further 10 000 times for cordless kettles.
The test device can be connected to external load or has built-in load (optional), the test cycles can be preset (maximum 999999),the test system can record the test cycles and conduction cycles automatically during test, when the preset test cycles have been completed, the test device will stop testing automatically.
Parameter of Home Appliances Test Equipment:
| Parameters / Model | HJ0613A |
| Input Power | AC240V 50Hz |
| Control | PLC control, touch screen operation |
| Station | Single station |
| Drive Method | motor-driven |
| Test Sample | Cordless water kettle/iron/blender |
| Insert & Plug Stroke | 0-100mm, can be preset on touch screen |
| Insert & Plug Speed | 0-30 times/min, can be preset on touch screen |
| Test Cycles | 0-999999, can be preset on touch screen |
| Conduction Cycles | 0-999999, can be displayed |
| Mechanical action | insert & plug action and kettle switch open and close movement |
| Load | Built-in 0-250V, 0-15A |
| Sample judgment | Judge conduction according to the current |
| Dimensions and Weight | 1000×500×1200mm, 200kg |
