60 Times / Min Two Stations Plug Socket Test Equipment For Cord Retention

Brand Name:	HeJin
Model Number:	HC9917
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Apparatus For Testing Cord Retention

Working Station:

One, Two Stations Option

Test Time:

0-9999, Preset

Standard:

IEC 60884-1

Test Weights:

10N*1, 60N*1, 20N*2

Pull Applied Time:

Packaging Details:

Plywood

Highlight:

Two Stations Plug Socket Test Equipment

Cord Retention Plug Socket Test Equipment

Product Description

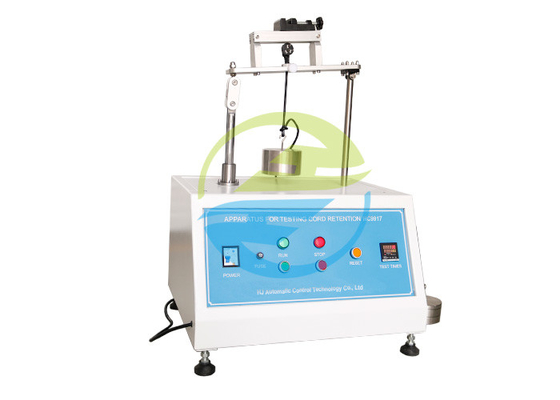

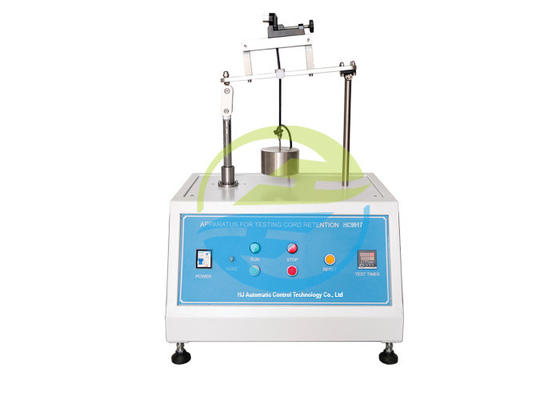

Plug Socket Test Equipment For Testing Cord Retention 60 Times/Min

Standard of Apparatus for testing cord retention:

IEC 60884-1 ‘Plugs and socket-outlets for household and similar purposes – Part 1: General requirements’ clause 23.2 and figure 20.

Application of Apparatus for testing cord retention:

Rewirable plugs and rewirable portable socket-outlets shall be provided with a cord anchorage such that the conductors are relieved from strain, including twisting, where they are connected to the terminals and that their covering is protected from abrasion.

Apparatus for testing cord retention is used to check the effectiveness of the retention of the cable by the cord anchorage.

Parameter of Apparatus for testing cord retention:

Power supply	AC 220V 50Hz
Test weights	10N1, 60N1, 20N*2
Rate of testing	60 times / min
Test times	0-9999, preset. Default 100 times.
Pull	– 50 N if the rated current is 2,5 A, – 60 N if the rated current is above 2,5 A, but not more than 16 A and the rated voltage is up to and including 250 V, – 80 N if the rated current is above 2,5 A, but not more than 16 A and the rated voltage is above 250 V, – 100 N if the rated current greater than 16 A.
Pull applied time	1s without jerks

60 Times / Min Two Stations Plug Socket Test Equipment For Cord Retention 0
