IEC 60811-1-4 Compliant Low Temperature Impact Test Apparatus with 100 mm Drop Height and Single or Three Station Configuration

Name: IEC 60811-1-4 Compliant Low Temperature Impact Test Apparatus with 100 mm Drop Height and Single or Three Station Configuration
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HC9924
Availability: InStock

Brand Name:	HeJin
Model Number:	HC9924
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T,L/C
Supply Ability:	20 set /month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Low Temperature Impact Test Apparatus HC9924

Height Of The Impact (mm):

100

Function:

Plug Socket Test Equipment

Standard:

IEC 60884-1，IEC60811-1-4

Operation:

Manual, Mechanical Release

Station:

Single Station Or Three Stations

Packaging Details:

Carton Box

Highlight:

Low Temperature Impact Test Apparatus

IEC 60811-1-4 Impact Test Apparatus

Product Description

IEC 60811-1-4 Low Temperature Impact Test Apparatus (100 mm Drop Height)

The IEC 60811-1-4 Low Temperature Impact Test Apparatus evaluates the impact resistance of electrical cables, insulation, and sheath materials under low-temperature conditions. Compliant with IEC 60811-1-4 standard requirements, this device is widely used by cable manufacturers, third-party testing laboratories, and quality control departments to verify material performance in cold environments.

When used together with a low-temperature chamber, the apparatus delivers reliable, repeatable impact testing results, ensuring products meet international safety and durability standards.

Applicable Standards

IEC 60811-1-4 – Common test methods for insulating and sheathing materials of electric cables – Low temperature test
IEC 60884-1 – Plugs and socket-outlets for household and similar purposes (relevant clauses)

Key Features

Designed in strict accordance with IEC 60811-1-4 requirements
Used inside a low-temperature chamber for accurate environmental simulation
Impact device placed on a 40 mm thick rubber pad during testing
Simple, durable manual mechanical release structure
Available in single-station or three-station configurations for higher testing efficiency

Technical Parameters

Model	Impact test apparatus HC9924	Impact test apparatus HC9924A
Station	Single station	Three stations
Weight of the impact hammer (g)	1000±2 and 100±1	100, 200, 300, 400, 500, 600, 750, 1000, 1250, 1500 (See table 1 and 2)
Height of the impact (mm)	100	100
Steel intermediate piece	Φ20, bottom end rounded R300, 100g	Φ20, bottom end rounded R300, 100g
Standard	IEC60884-1 24.4 Figure 27 IEC60884-1 30.4 Figure 42	IEC60811-1-4
Operation	Manual, mechanical release	Manual, mechanical release

Table 1: Hammer Mass for Power Cables (Fixed Installation)

Overall diameter (mm) Above	Overall diameter (mm) Up to and including	Mass of hammer (g)
-	4.0	100
4.0	6.0	200
6.0	9.0	300
9.0	12.5	400
12.5	20.0	500
20.0	30.0	750
30.0	50.0	1000
50.0	75.0	1250
75.0	-	1500

Table 2: Hammer Mass for Flexible Cables and Telecommunication Cables

Overall diameter (mm) Above	Overall diameter (mm) Up to and including	Mass of hammer (g)
For flat cords	-	100
-	6.0	100
6.0	10.0	200
10.0	15.0	300
15.0	25.0	400
25.0	35.0	500
35.0	-	600

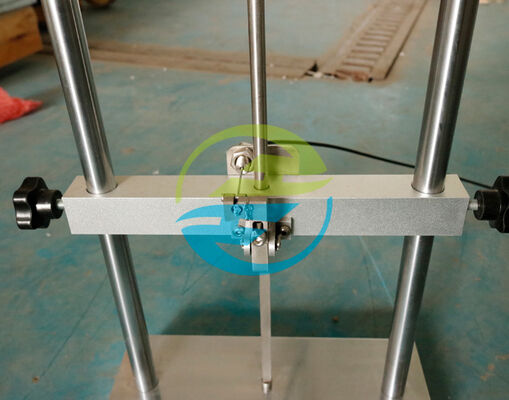

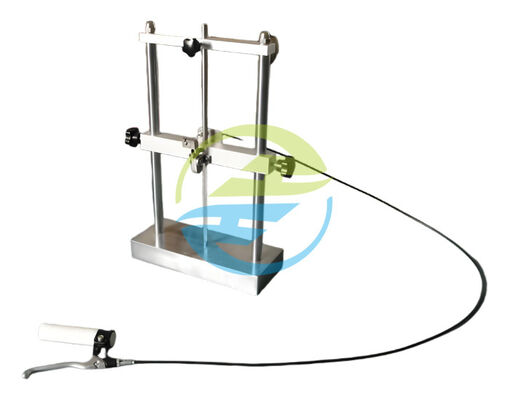

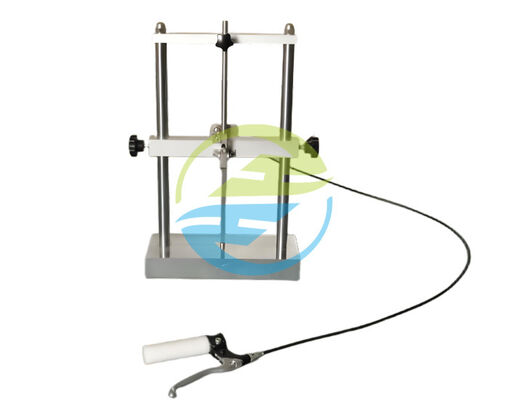

Product Structure Diagram

Why Choose This Low Temperature Impact Test Apparatus?

With a robust mechanical design, strict standard compliance, and flexible configuration options, this IEC 60811-1-4 impact tester provides accurate, repeatable, and internationally recognized test results, helping manufacturers ensure product reliability and regulatory compliance before market entry.
