IEC60695 Horizontal Vertical Flammability Testing Equipment

Minimum Order Quantity : 1 set Price : Negotiatable
Packaging Details : Plywood Delivery Time : 30 days
Payment Terms : L/C, T/T Supply Ability : 15 set per month
Place of Origin: China Brand Name: HeJin
Certification: Calibration Certificate(cost additional) Model Number: HVF-3

Detail Information

Flame Power: 50W&500W Test Methods: Horizontal And Vertical Burning Test
Combustion Angle: 0°,20°,45° Gas Pressure: 0.1MPa
Height Of Flame: 20±2mm/125mm Copper Block: Ф5.5mm/Ф9mm
Weight Of Copper Block: 1.76 G±0.01 G/10g±0.05 G Name: Horizontal And Vertical Flame Test Apparatus
High Light:

Vertical Flammability Testing Equipment

,

Horizontal Flammability Testing Equipment

,

IEC 60695 Flame Test Apparatus

Product Description

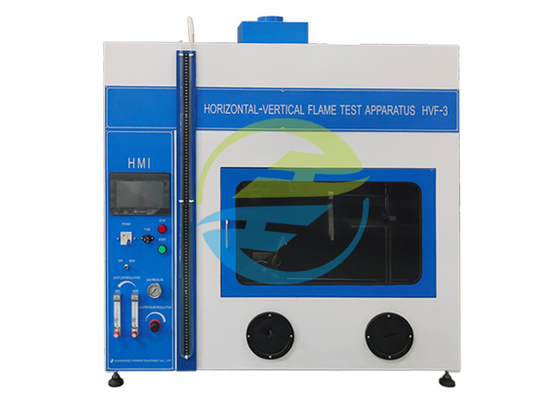

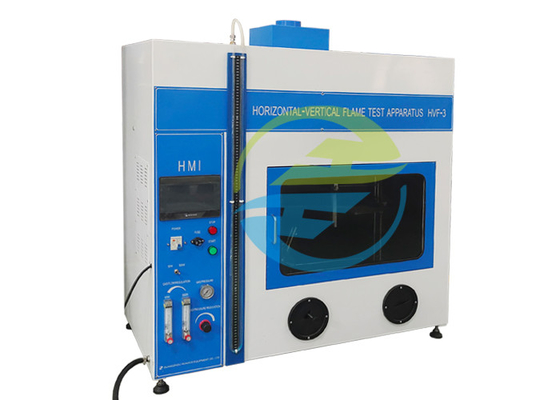

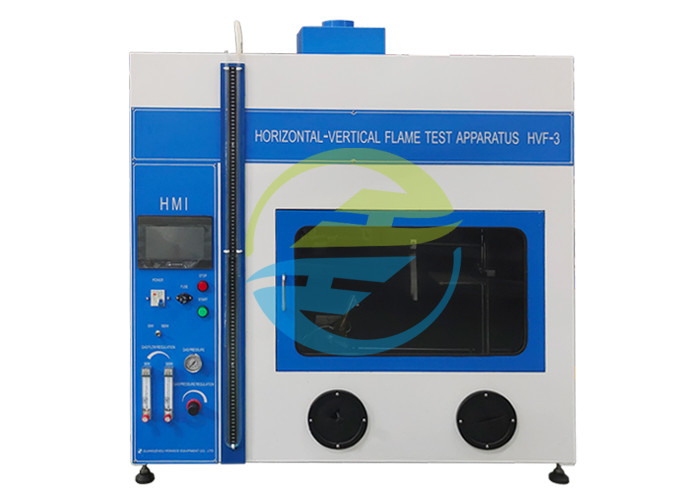

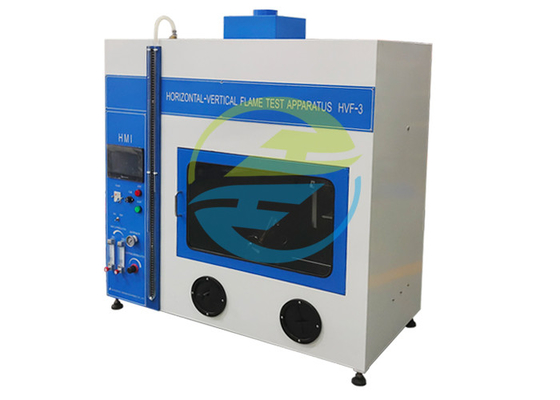

IEC60695 Horizontal And Vertical Flammability Testing Equipment PLC Control



Standard:

IEC60695-11-3 ‘Fire hazard testing – Part 11-3: Test flames – 500 W flames – Apparatus and confirmational test Methods’;

IEC60695-11-4 ‘Fire hazard testing – Part 11-4: Test flames – 50 W flames – Apparatus and confirmational test Methods’;

IEC60695-11-10 ‘Fire hazard testing – Part 11-10: Test flames – 50 W horizontal and vertical flame test methods’;

IEC60695-11-20 ‘Fire hazard testing – Part 11-20: Test flames – 500W flame test method’.



Application:

This horizontal and vertical flame test apparatus is intended to compare the burning behaviour of different materials used in electrotechnical products when vertically or horizontally oriented test bar specimens are exposed to a small flame ignition source with a nominal thermal power of 50 W and 500 W. Flammability Testing Equipment



Parameter:

ParametersModel HVF-3(Touch screen)
Working voltage 220V/50Hz
Power/grade 50W and 500W double power switching
Control operation mode PLC control, 7 inch color touch screen operation, with infrared remote control
Blast burner standard IEC60695-11-3/IEC60695-11-4/10,UL94, inner diameter: Φ9.5±0.3mm, length:100mm, made of brass
Gas pressure 0.1MPa
Gas flow 50W:105±5ml/min or 18±1mm; 500W: 965±30ml/min or 117±3 mm, flow meter adjustment
U type pressure gauge back pressure water column height 50W:10mm; 500W:125±5 mm
Test angle 50W: 0°,45°; 500W: 20°
Burning time 0-9999X0.1S, Can be preset
Burning times 0-9999 times, Can be preset
Residual flame/Residual glow 0-9999X0.1S Can be displayed. Flammability Testing Equipment
Test flame calibration

Temperature measuring copper head:

50W: Ф5.5mm±0.01mm, weight before drilling 1.76 ± 0 .01 g;

500W: Ф9mm±0.01mm. weight before drilling 10 ± 0 .05g

Thermocouple: The American original Omega φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple, temperature resistance 1100°

Distance between the bunsen burner port to temperature measuring copper block:50W: 10±1 mm; 500W: 55±1 mm

Flame height: 50W: 20±2mm(there is no internal and external flame); 500W: Inner flame:40±2mm, Outer flame:125±10mm

Temperature rise time from100±2° to 700°±3°50W: 44±2S; 500W: 54±2S
Lighting Equip with lighting in the test chamber, with control
Test chamber and dimension > 0.75 cube,black inwall, with exhaust fan, dimension:1100*550*1200mm, 140kg



IEC60695 Horizontal Vertical Flammability Testing Equipment 0
