IEC 60529 Verify Protection Against Dust IP Test Equipment

Name: IEC 60529 Verify Protection Against Dust IP Test Equipment
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HH0810A
Availability: InStock

Brand Name:	HeJin
Model Number:	HH0810A
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	5 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate(cost additional)

Product Name:

Sand And Dust Test Chamber HH0810A

Test Sample:

Electric And Electronic Components, Dust-proof Luminaires

Temperature Range:

RT+10-70°C

Inner Size:

W2000*D1000*H1000mm

Test Dust:

Talcum Powder

Vacuum Range:

0-10.0Kpa Adjustable

Inner Material:

SUS304 Stainless Steel Plate

Standard:

IEC60598-1, IEC 60529

Packaging Details:

Plywood

Highlight:

IEC 60529 IP Test Equipment

Talcum Powder IP Test Equipment

10.0Kpa Adjustable IP Test Equipment

Product Description

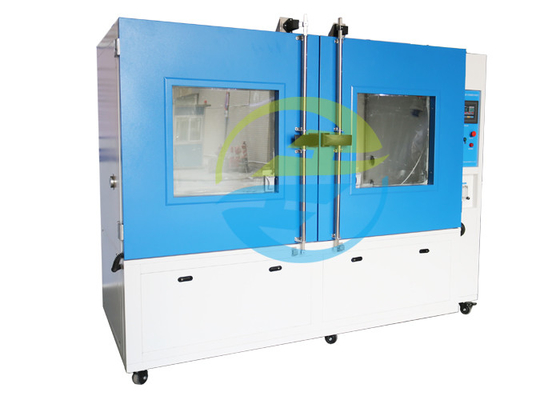

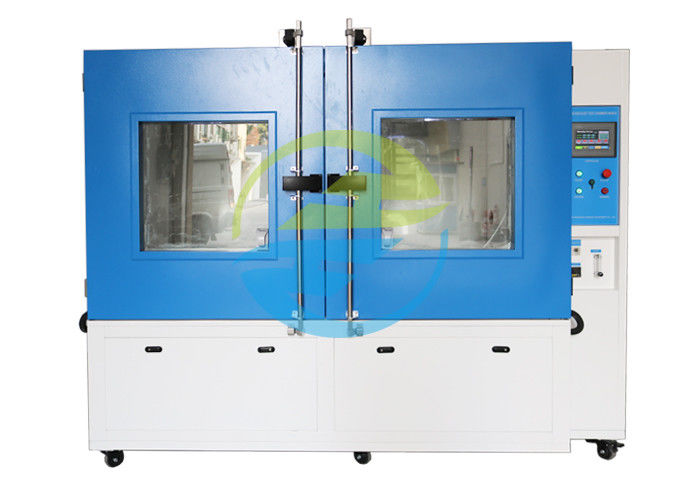

Test Device To Verify Protection Against Dust IP Test Equipment

Standard:

IEC 60529 Degrees of protection provided by enclosures (IP Code) clause 13.4, figure 2, dust test for first characteristic number 5 and 6.

IEC 60598-1 Luminaires – Part 1: General requirements and test clause 9.2 test for ingress of dust, solid objects and moisture.

Standard description of IEC 60598-1:

Dust-proof luminaires (first characteristic IP number 5) shall be tested in a dust chamber similar to that shown iv figure 6, in which talcum powder for every cubic metre of its volume. The talcum powder used shall be able to pass through a square-meshed sieve whose nominal wire diameter is 50 μm and whose nominal free distance between wires is 75μm. It shall not have been used for more than 20 tests. IP Test Equipment

Parameter:

Inner size	W2000D1000H1000mm (can be customized)
Inner material	SUS304 stainless steel plate
Square-meshed sieve	Nominal wire diameter is 50μm, nominal width of a gap between wires is 75μm

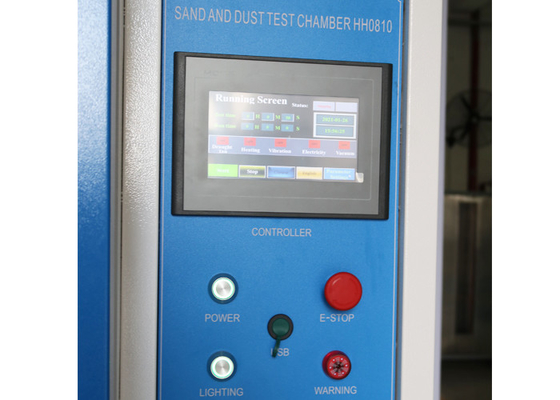

Control system	PLC and touch screen intelligent control system
Controller	programmable controller (this controller has the following functions of arbitrary setting) 1. blowing dust time (stop, blowing) can be adjusted 2. Cycle period: arbitrarily adjustable 3. Preset test time: 0s ~ 999h99m99s, adjustable 4. Power on: off-on-off
Temperature sensor	PT100 test sensor
Door	Tempered glass door. IP Test Equipment

IEC 60529 Verify Protection Against Dust IP Test Equipment 0
