IEC 60335-1 Household Appliance Test Equipment Power Cord Flexing Test Apparatus

Brand Name:	HJ
Model Number:	HJ0608A
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	10 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate/ CE(cost additional)

Application:

Home Appliance Power Cord Flexing Test Equipment

Weight:

5N And 10N

Standard:

IEC 60335-1 Figure 8

Flexing Speed:

10~60 Rpm, Can Be Preset

Flexing Angle:

45° (90°), 60° (120°), 90° (180°), And 180° (360°) Left And Right

Fixture:

1 Set Universal Fixture

Output Voltage:

0-250V

Test Station:

Single Station, 3 Stations Option

Packaging Details:

Plywood

Highlight:

IEC 60335-1 Household Appliance Test Equipment

Figure 8 Household Appliance Test Equipment

Power Cord Flexing Test Apparatus

Product Description

Household Appliance Test Equipment IEC 60335-1 Power Cord Flexing Test Apparatus

Standard:

IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements clause 23.3 and 25.14, figure 8.

IEC 60335-1 Household Appliance Test Equipment Power Cord Flexing Test Apparatus 0

Application:

It is used to check the power cord flexing (bending) resistance performance of the small household appliances (such as Coffee pot / electric iron) and lamps, also applicable for power cord flexing endurance tester of plugs and sockets. Household Appliance Test Equipment

Feature:

The flexing test apparatus is controlled by PLC and operated by 7-inch color human-machine interface. The bending angle, the number of tests and the test rate can be preset. The test is automatically carried out according to the start-up test. When the test reaches the preset number of times, the device automatically stops and gives the test completion signal prompt. The built-in load of the device, can also supply load current to test sample.

Parameter:

Item Name	Parameters
Test station	Single station, with 1set fixture
Flexing angle	45° (90°), 60° (120°), 90° (180°), and 180° (360°) left and right. Other angles from 0 to 360° can be set, and single-sided bending can be selected.
Flexing speed	10~60 rpm, can be preset
Load weights	5N1,10N1. Household Appliance Test Equipment
Test times	0~999999 times, can be preset and displayed; One bend cycle is a 90° movement.
Starting position (origin) selection	The starting position can be set arbitrarily so that the irregular sample cord exit is perpendicular and substantially coincides with the center of rotation to minimize lateral displacement.
Operation principle	The servo motor drive system is adopted, high regulation precision of swing angle and speed.
Built-in load	The device has a built-in load 5KW voltage regulator, which can adjust the voltage from 0 to 250V and display the current and voltage digitally.
Power	230V 60Hz (customizable)
Control	With visual touch screen display and PLC control, control and parameter settings are very intuitive and convenient.
Signal indication	Test completion and disconnection alarm indicator display

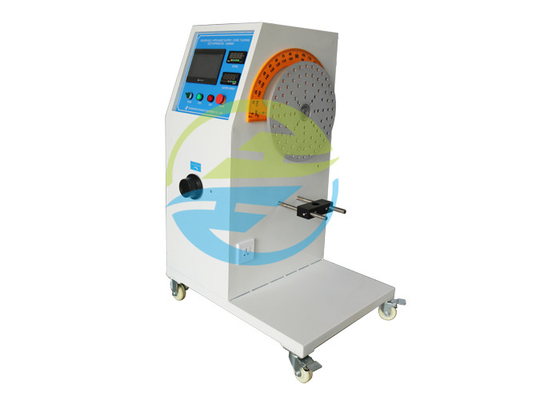

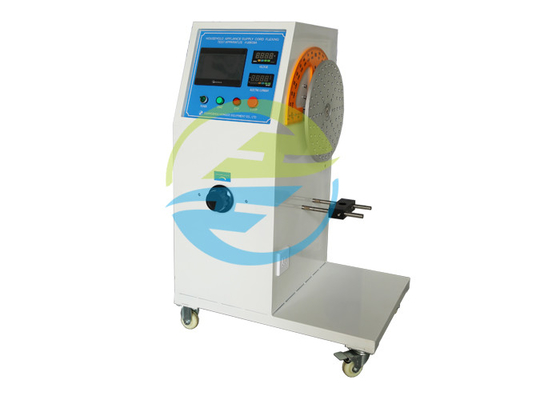

IEC 60335-1 Household Appliance Test Equipment Power Cord Flexing Test Apparatus 1
