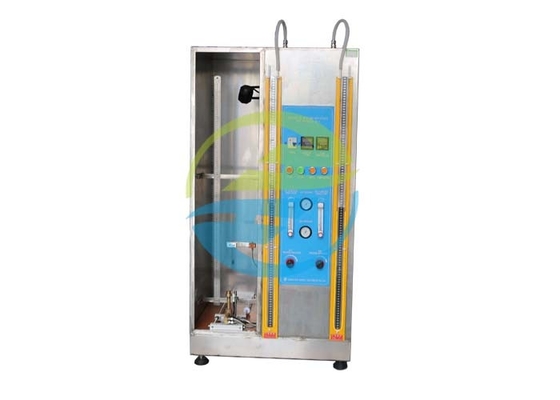

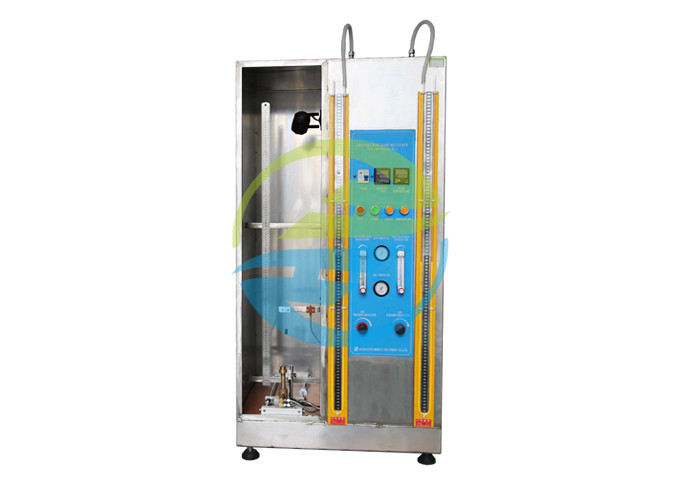

IEC 60332 Flammability Testing Equipment For Vertical Flame Propagation Single Insulated Cable

IEC 60332 Flammability Testing Equipment For Vertical Flame Propagation Single Insulated Cable

Brand Name:	HJ
Model Number:	VF-1
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	15 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Copper Block:

9mm In Diameter, 10 ± 0 .05g Before Drilling

Temperature Rise Time:

From 100±5°C To 700°±3°C Shall Be 45±5s

Product Name:

Flammability Test Chamber

Standard:

IEC 60332

Function:

Single Cable Burning Test

Metallic Screen:

H*W*D-1200*300*450

Distance Of Upper And Lower Support:

550 ± 5 Mm

Gas Pressure:

650±30mL/min Propane; 10±0.5L/min Air

Packaging Details:

Plywood

Highlight:

IEC 60332 Flammability Testing Equipment

9999S Flammability Testing Equipment

Vertical Flammability Testing Equipment

Product Description

Flammability Testing Equipment For Vertical Flame Propagation For Single Insulated Cable

Standard:

IEC 60332-1-1 Tests on electric and optical fibre cables under fire conditions –Part 1-1: Test for vertical flame propagation for a single insulated wire or cable – Apparatus;

IEC 60332-1-2 Tests on electric and optical fibre cables under fire conditions –Part 1-2: Test for vertical flame propagation for a single insulated wire or cable – Procedure for 1 kW pre-mixed flame;

IEC 60332-1-3 Tests on electric and optical fibre cables under fire conditions –Part 1-3: Test for vertical flame propagation for a single insulated wire or cable – Procedure for determination of flaming droplets/particles.

Application:

It is use for testing the resistance to vertical flame propagation for a single vertical electrical insulated conductor or cable, or optical fibre cable, under fire conditions. Flammability Testing Equipment

Positioning of test piece:

The test piece shall straightened and be secured to two horizontal supports by means of a suitable size of copper wire, in a vertical position in the centre of the metal screen, as described in 4.2 of IEC 60332-1 -1 , so that the distance between the bottom of the upper

support and the top of the lower support is (550 ± 5) mm. In addition, the test piece shall be positioned so that the bottom of the specimen is approximately 50 mm from the base of the screen (see Figure 1).

IEC 60332 Flammability Testing Equipment For Vertical Flame Propagation Single Insulated Cable 0

The vertical axis of the test piece shall be arranged centrally within the screen (i.e. 150 mm from each side and 225 mm from the rear).

Parameter:

Working voltage	220V/50Hz
Control operation mode	Electrical control, button operation

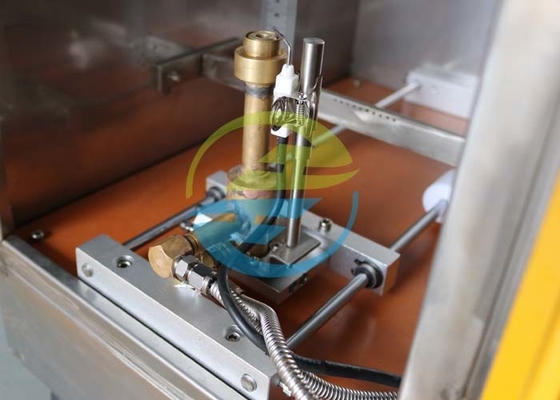

Burner standard	IEC60695-11-2 Annex A, Burner opening:Φ7±0.05mm, made of brass
Gas flow and gas category	Mixture gas: 650±30mL/min propane; 10±0.5L/min air, Dual flow meter adjustment
Burning time	9999S. Flammability Testing Equipment
Burning angle	Tilt 45°±2°, Adjustable
Test flame calibration	Temperature measuring copper block: Ф9mm±0.01mm, weight before drilling:10 ± 0 .05g
	Thermocouple: The American original Omega φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple, temperature resistance 1100°
	Distance between the burner port to temperature measuring copper block: 95 mm
	Flame height: Inner flame:55±5mm, Outer flame:180±10mm
	The time for the temperature of the copper block, to increase from 100±5°C to 700°±3°C shall be 45±5s
Metallic screen	(1 200 ± 25) mm high, (300 ± 25) mm wide and (450 ± 25) mm deep with open front and closed top and bottom
Gas	>95% propane or coal gas
Test sample	Length: 600±25mm
Fixed horizontal support of the sample	2, distance:550mm
