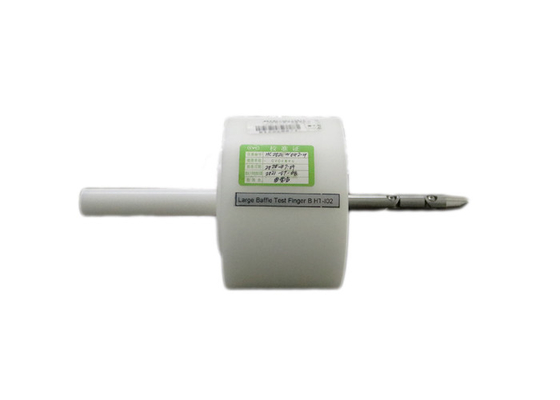

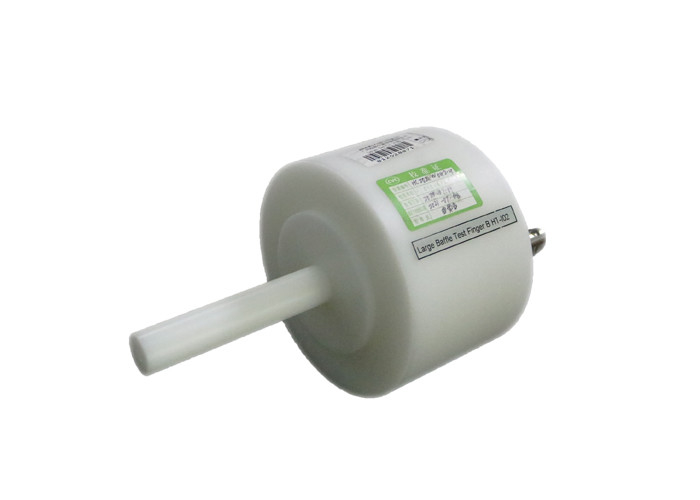

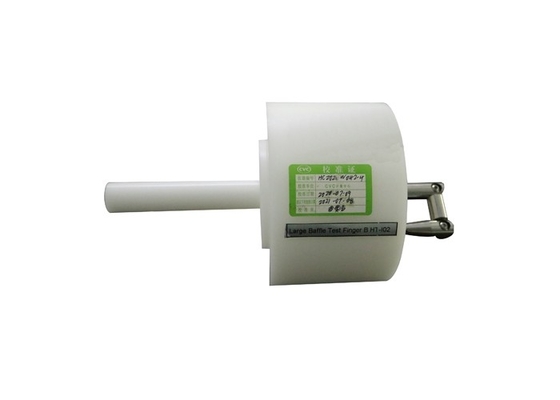

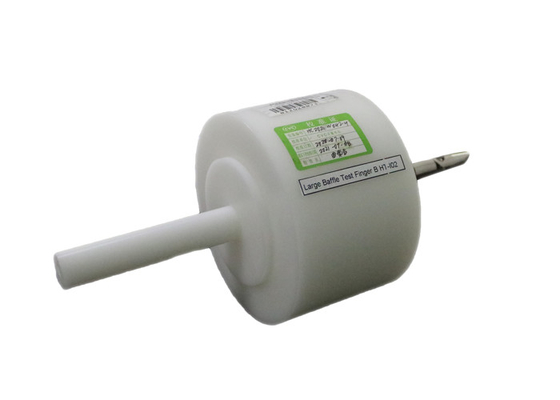

IEC60335-2-14 Household Appliance Test Equipment Probe With 125mm Diameter Stop Face

IEC60335-2-14 Household Appliance Test Equipment Probe With 125mm Diameter Stop Face

IEC60335-2-14 Household Appliance Test Equipment Probe With 125mm Diameter Stop Face

Brand Name: HeJin
Model Number: HT-I02B
MOQ: 1 Set
Price: Negotiatable
Payment Terms: T/T, L/C
Supply Ability: 20 set per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
China
Certification:
Third party calibration certificate/ CE(cost additional)
Product Name:
Large Baffle Test Probe HT-I02B
Stop Face Diameter:
125mm
Stop Face Thickness:
80mm
Tip To Stop Face Length:
100mm
Usage:
Test Stability And Mechanical Hazards
Standard:
IEC60335-2-14
Application:
Kitchen Applicance Test Equipment
Body Material:
Nylon Handle
Packaging Details:
Carton box
Highlight:

IEC 60335-2-14 Household Appliance Test Equipment

,

Nylon Handle Household Appliance Test Equipment

,

125mm Diameter Test Probe

Product Description

Household Appliance Test Equipment Test Probe With 125mm Diameter Stop Face



Standard:

IEC 60335-2-14 Household and similar electrical appliances – Safety – Part 2-14: Particular requirements for kitchen machines clause 20.2;

IEC 61032 Protection of persons and equipment by enclosures – Probes for verification.



Application:

It is used to test stability and mechanical hazards for blenders, detachable parts. The test is carried out with a test probe similar to that of test probe B of IEC 61032 but having a circular stop face with a diameter of 125 mm instead of the non-circular face, the distance between the tip of the test finger and the stop face being 100 mm. Household Appliance Test Equipment



Parameter:

Model HT-I02B
Name Large Baffle Test Finger
Joint 1 length 30±0.2
Joint 2 length 60±0.2
Tip of the test finger to the stop face length 100±0.2
Cylindrical R2±0.05
Spherical R4±0.05
Fingertip cutting bevel angle 37o 0 -10′
Fingertip taper 14 o 0 -10′
Test finger diameter Ф12 0 -0.05
Stop face diameter Ф125±0.2
Stop face thickness 80
Guard diameter Ф75
Applied standard IEC60335-2-14
