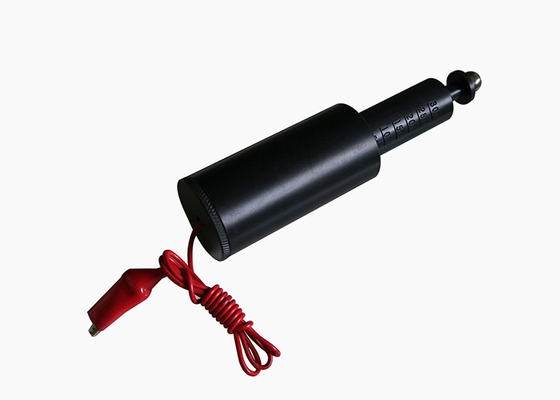

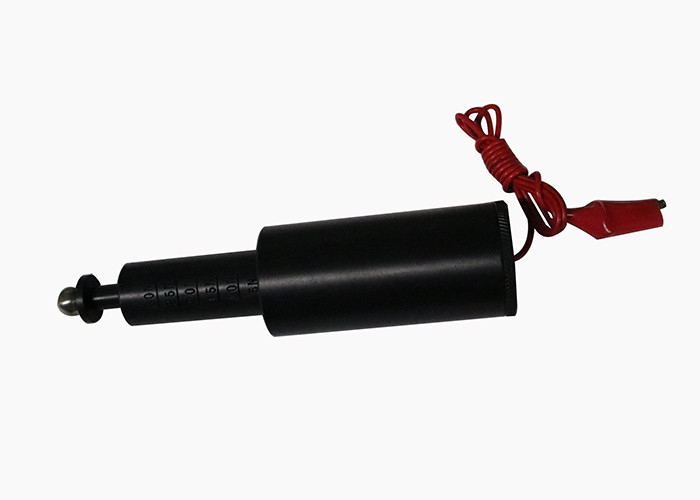

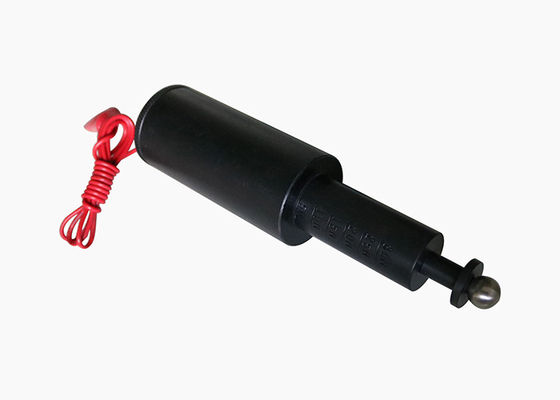

Name: 12.5mm Diameter Object Probe IEC 60529 Rigid Sphere 30N Force
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HT-I06T
Availability: InStock

Brand Name:	HeJin
Model Number:	HT-I06T
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	20 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Standard:

IEC60529 P2X

Test Force:

30N±10%

Item Name:

Test Probe 2 With Force HT-I06T

Rigid Sphere Diameter:

12.5mm

Material:

Rigid Sphere And Nylon Handle

Usage:

Object Probe

Application:

Suspension Dust-proof Test

Warranty:

12 Months

Packaging Details:

Plastic box

Highlight:

12.5mm Diameter Object Probe

IEC 60529 Object Probe

Rigid Sphere Object Probe

Product Description

12.5mm Diameter Object Probe of IEC 60529 Rigid Sphere With 30N Force

Standard:

IEC 61032 ‘Protection of persons and equipment by enclosures – Probes for verification’ figure 6 test probe 2.

IEC 60529 Degrees of protection provided by enclosures (IP Code) IP2X.

Application:

It is used to test for protection against solid foreign objects indicated by the first characteristic numeral.

The object probe is pushed against any openings of the enclosure with the force specified in table 7. Test Finger Probe

Parameter:

Model	HT-I06T
Name	Test probe 2 with force
Steel ball diameter	SФ12.5+0.2 0
Force	With force of 30N
Applied standard	IEC60529 Test Finger Probe

12.5mm Diameter Object Probe IEC 60529 Rigid Sphere 30N Force 0
