IEC60529 Water IP Test Equipment IPX5 IPX6 Jet Nozzle Tester

Minimum Order Quantity : 1 Set Price : Negotiatable
Packaging Details : Plastic box Delivery Time : 3 days
Supply Ability : 20 set per month
Place of Origin: China Brand Name: HeJin
Certification: calibration certificate (cost additional) Model Number: HH0804

Detail Information

Standard: IEC60529 PX5/IPX6 Pressure Gauge: 0-0.25MPa
Water Flow: 12.5 L/min ± 5 % For IPX5; 100 L/min ± 5 % For IPX6 Nozzle Diameter: Ф6.3mm And Ф12.5mm
Testing Time: Minimum Test Duration: 3 Min Warranty: 1 Year
Nozzle Material: SUS#304 Stainless Steel Usage: Waterproof Tester
High Light:

IEC60529 Water IP Test Equipment

,

IPX5 Handheld Jet Nozzle Tester

,

IPX6 Jet Nozzle Tester

Product Description

IEC60529 Water IP Test Equipment IPX5 IPX6 Handheld Jet Nozzle Tester With Electronic Fuel Meter



Conforms To:

IEC60529 degree of protection provided by enclosures (IP Code) of the IPX5 and IPX6, IEC60884-1, IEC60335-1, IEC60598-1.



Application:

IPX5 and IPX6 call for a specimen to be sprayed with water from all practicable directions. IPX5 specifies a nozzle with a 6.3mm diameter opening and a flow of 12.5l/min. IPX6 specifies a nozzle with a 12.5mm diameter opening and a flow rate of 100L/min. Ingress Protection Test Equipment



Feature:

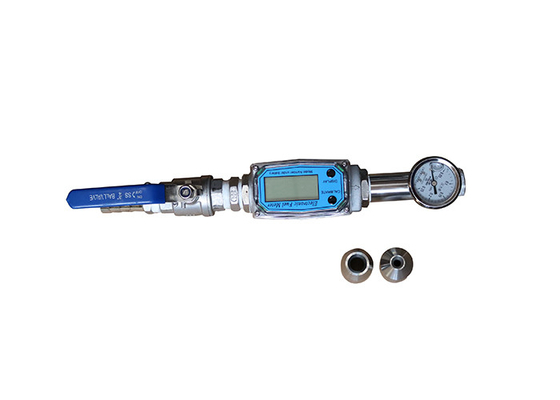

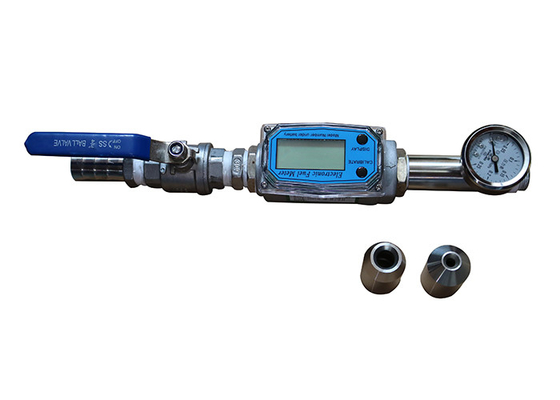

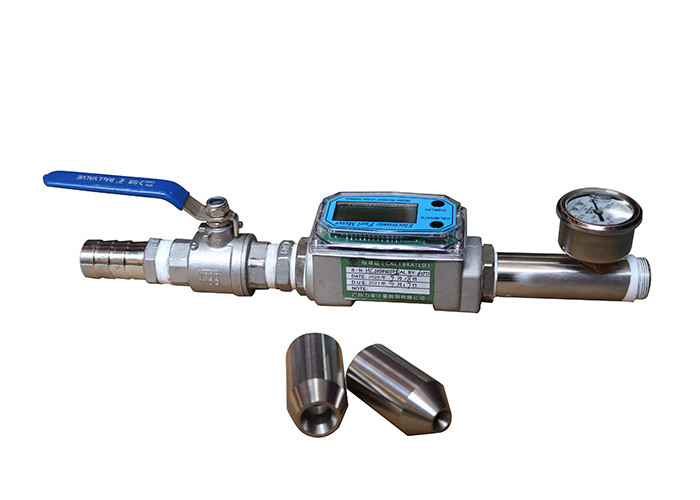

The IPX5-6 Jet Nozzle consists of a jet handle that is equipped with a pressure gauge,an electronic fuel meter and an easy-to-adjust flow valve. The interchangeable nozzles assemble easily to the jet handle. The nozzles are made from stainless steel.



Parameters:

Model

HH0804-1

HH0804-2

Item

IPX5

IPX6

The nozzle diameter

Ф6.3mm

Ф12.5mm

Water flow

12.5±0.625L/min,Flow meter is adjustable

100±5 L/min,Flow meter is adjustable

The distance from jet nozzle to enclosure

2.5~3m Ingress Protection Test Equipment

Testing time

Not less than 1min/m²(not less than 3 mins)

Pressure gauge

0~0.25MPa

Site requirements

Dedicated IP waterproof test room whose width is more than 3m,

With good function of inflow and drainage. Wall installation

Water supply

Water flow rate > 12.5L/min±5% clean water without inclusion.

It can be achieved by the stainless steel water tank and pressurized equipment

Water flow rate >100L/min±5% clean water without inclusion.

It can be achieved by the stainless steel water tank and pressurized equipment



IEC60529 Water IP Test Equipment IPX5 IPX6 Jet Nozzle Tester 0
