Sand And Dust Test Chamber Vacuum Pump 60-600 L/H IP Test Equipment HH0810
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsApp : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plastic box | Delivery Time : | 3 days |
| Supply Ability : | 20 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate (cost additional) | Model Number: | HH0803 |
|
Detail Information |
|||
| Standard: | IEC60529, ISO 20653 | Pressure Gauge: | 0-0.25MPa |
|---|---|---|---|
| Shower Tube: | External Diameter: Ф102mm | Apertures No.: | 121 |
| Apertures Diameter: | 0.5mm | Moveable Cover: | Made From Aluminium |
| Shower Tube: | Made From Copper–zinc Alloy (brass) | Testing Time: | Manual Control, At Least 5min |
| Highlight: | IP Test Equipment Against Water 3,IP Test Equipment Shower Tube Protection |
||
Product Description

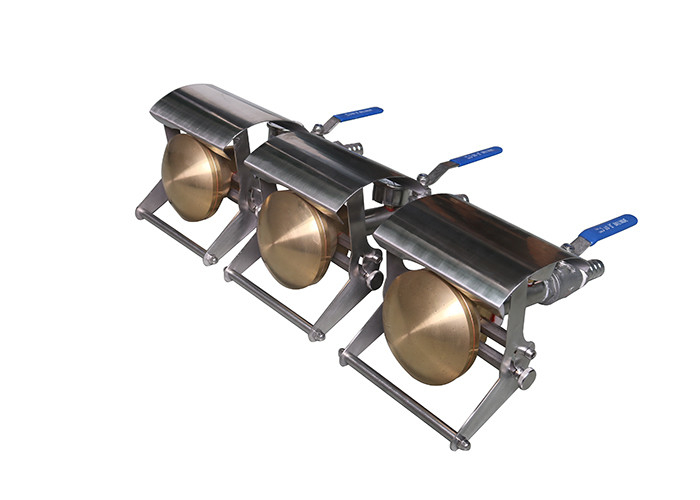

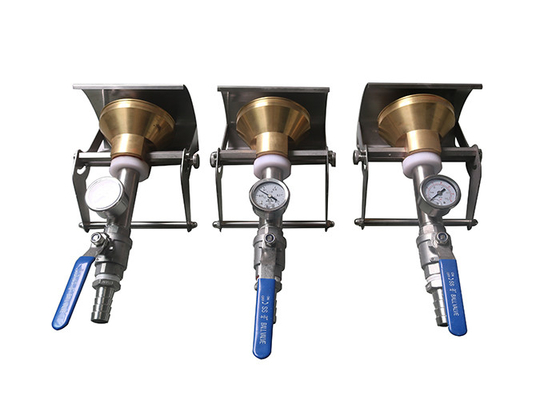

IP Test Equipment Splash Water Shower Tube Protection Against Water 3 And 4
Standard:
IEC60529 degree of protection provided by enclosures (IP Code), Figure 5 – Hand-held device to verify protection against spraying and splashing water; second characteristic numerals 3 and 4 (spray nozzle);
ISO 20653-2013 Road vehicles — Degrees of protection (IP code) — Protection of electrical equipment against foreign objects, water and access, Figure 5 — Manual test set-up for determining the protection against splash water and water spray (shower tube); degrees of protection against water 3 and 4.
Application:
This device performs IPX3 and IPX4 testing, it is ideal for big specimens. Ingress Protection Test Equipment

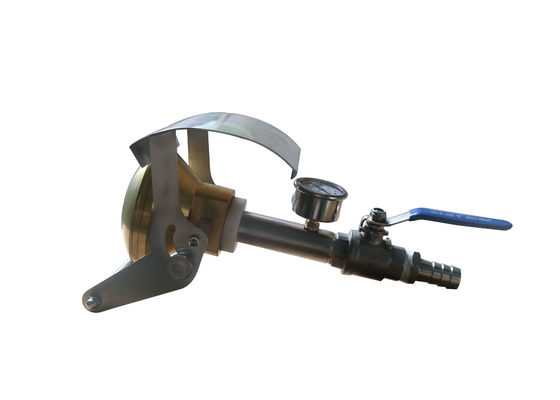

For checking the protection against water, to prove the degree of protection IPX3 and IPX4. Moveable cover allows for both "Protection against Spraying Water" and "Protection against Splashing Water" tests. The spray tester is the low cost alternative to the Oscillating Spray test for IPX3 and IPX4. Complete test device includes shower tube, moveable cover, pressure gauge, handle, flow control and shut off valve, and any connecting hose. Spherical cap of the shower tube is nickel-plated brass, all other metallic parts of stainless or nickel-plated steel.
Parameter:
| Item | Parameter |
| Water supply | Water flow rate is ＞10L/min±5%, pressure is 50-150kpa clean water without inclusion. |
| Shower tube parameters |
External diameter: Ф102mm spherical diameter: SФ75.5mm 121 apertures with diameter 0.5 mm: — 1 centre aperture, — 2 inner circles (12 apertures at 30° pitch), — 4 outer circles (24 openings at 15° pitch), and — a moveable cover made from aluminium. The shower tube shall be made from copper–zinc alloy (brass). |
| Water flow | 10L/min±5%, Flow meter is adjustable |
| Pressure gauge | 50-150Kpa, Range of pressure gauge 0-0.25Mpa |
| Cover | Removable. Ingress Protection Test Equipment |
| Site requirements |
Dedicated IP waterproof test room, The ground should be flat with illumination With good function of inflow and drainage. |
| Testing time | Manual control, at least 5min |
