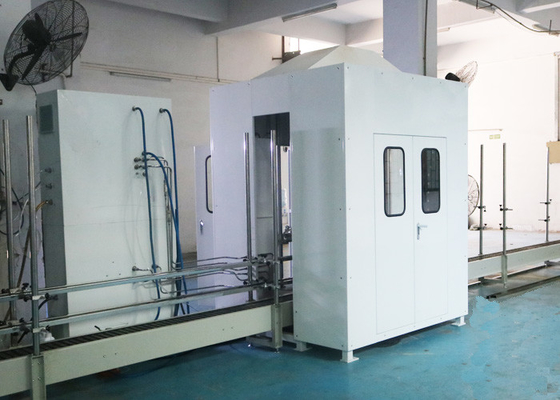

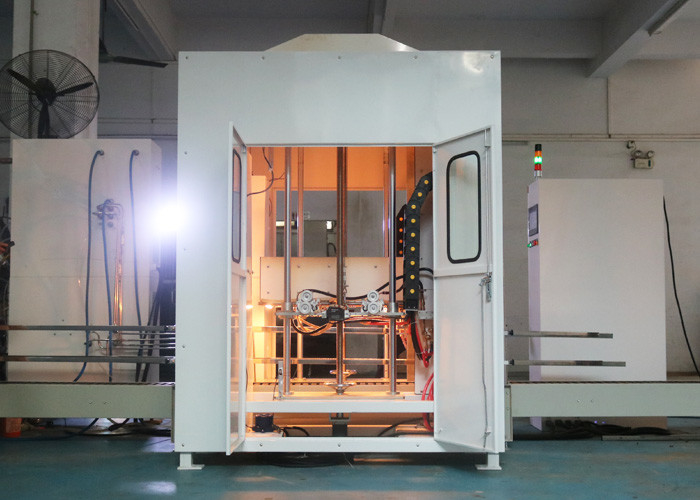

2.5m/Min Automatic Brazing Machine

Product Description

Auto Flame Brazing Machine For Heat Exchanger With 1-2.5m/min Production Line

Main Function:

1. Automatically ignite and extinguish fire; Automatically switch the strength of the flame; keep flame stable, avoid tempering

2. With faulty alarm and self-diagnostic functions

3. Gas concentration detection function: when the gas concentration reaches to the 50% of explosive limit, the system will automatically shut down or close the gas valve, and alarm occurs.

4. Extinguishing with nitrogen: can avoid deflagration.

5. Power-off protection: the equipment will automatically fill in nitrogen

6. Emergency button: In urgent cases, the electrical and pneumatic system can be shut-off immediately and starts extinguishing protection.

Feature:

The combustion gas flow, welding time and other parameters can be adjusted in the production process, and various process parameters can be real-time monitored; The preset process parameters can be stored (maximum: 30 groups), can call the appropriate preset process parameters directly according to the different pieces to be welded. Automatic Brazing Machine

Specification:

Benefits analysis:

Every 8 hours of production can reach 2500 pieces or more. The device can operate 20 hours continuously. Calculated in accordance with professional welders’ stage salaries, the investment cost of the equipment can be recovered by one year.
