HC9927 Portable Socket Outlet Tester for Mechanical Strength

Name: HC9927 Portable Socket Outlet Tester for Mechanical Strength
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HC9927
Availability: InStock

Brand Name:	HeJin
Model Number:	HC9927
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	20 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Portable Socket-outlets Mechanical Strength Tester HC9927

Drop Height:

750mm

Distance To Fixed End:

2250mm

Standard:

IEC 60884-1

Test Times:

8 Times

Function:

Plug Socket Test Equipment

Test Sample:

Multiple Portable Socket-outlets

Operation:

Manual Release

Packaging Details:

Plywood

Highlight:

HC9927 Socket Outlet Tester

Socket Outlet Tester For Mechanical Strength

HC9927 Portable Socket Outlet Tester

Product Description

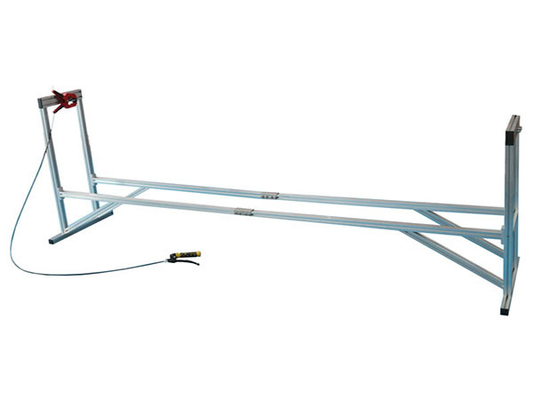

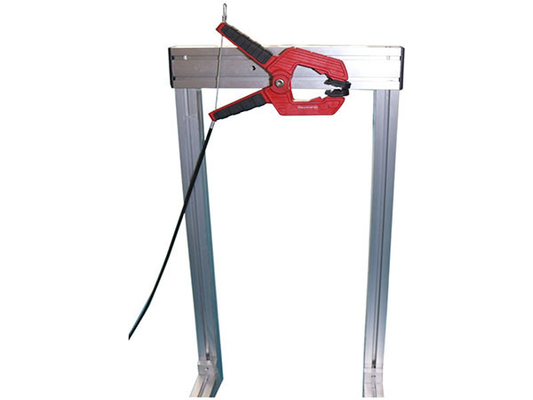

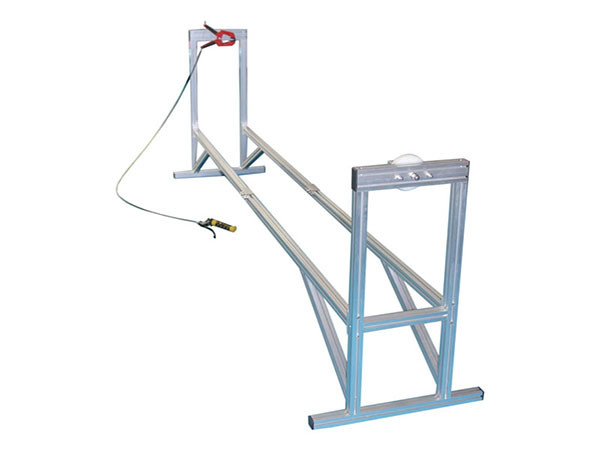

Plug Socket Test Equipment Portable Socket-outlets Mechanical Strength Tester With 750mm Drop Height

Standard:

IEC 60884-1 2013 ‘Plugs and socket-outlets for household and similar purposes - Part 1: General requirements ’ clause24.9 and figure 29

Application:

This device is use for test the mechanical strength of multiple portable socket-outlets when rewirable multiple portable socket-outlets are fitted with the lightest type of flexible cable of the smallest nominal cross-sectional area.

Test sample:

Multiple portable socket-outlets. Plug Socket Test Equipment

Parameters:

Drop height	750mm
Distance to fixed end	2250mm. Plug Socket Test Equipment
Test times	8 times
Rotation device	every 45°, 8 directions can be rotated
Operation	manual release

HC9927 Portable Socket Outlet Tester for Mechanical Strength 0
