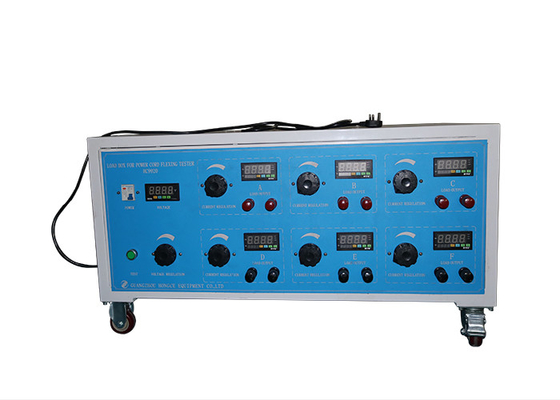

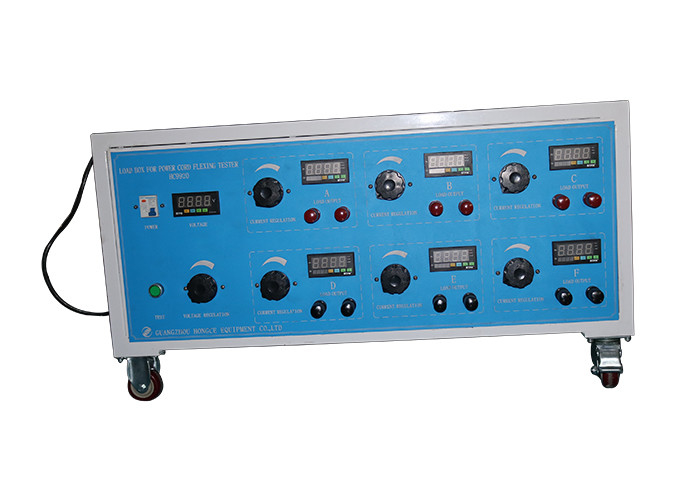

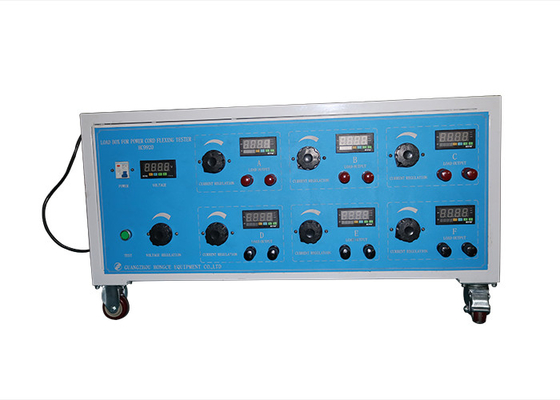

AC220V 50Hz 6 Stations Plug Socket Test Equipment Load Box

Name: AC220V 50Hz 6 Stations Plug Socket Test Equipment Load Box
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HC9920
Availability: InStock

Brand Name:	HeJin
Model Number:	HC9920
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Load Box For Power Cord Flexing Tester HC9920

Power Supply:

AC220V±5% 50Hz

Output Current:

0 ~ 40A Is Arbitrary Adjustable

Standard:

IEC 60884-1

Output Voltage:

12V

Function:

Plug Socket Test Equipment

Test Station:

6 Stations

Ammeter Accuracy:

±1%

Packaging Details:

Plywood

Highlight:

50Hz Socket Test Load Box

AC220V Socket Test Load Box

AC220V 6 Stations Load Box

Product Description

Plug Socket Test Equipment Load box for Power Cord Flexing Tester With Six Test Station

Standard:

IEC 60884-1 2013 ‘Plugs and socket-outlets for household and similar purposes - Part 1: General requirements ‘clause 23.4.

UL817, VDE0620

Application:

This device is used for test the flexing properties of non-rewirable plugs (terminals) and non-rewirable portable socket-outlets with power cord flexing tester.

Test sample:

Non-rewirable plugs and non-rewirable portable socket-outlets. Plug Socket Test Equipment

Feature:

The box type floor structure is adopted, provide 6 channels of low voltage and high current output.

Parameters:

Power supply	AC220V±5% 50Hz
Output current	0 ~ 40A is arbitrary adjustable
Output voltage	12V. Plug Socket Test Equipment
Test station	6 stations
Ammeter Accuracy	±1%
Connecting wire	7 PIN Aviation wire
Environment temperature	80~106kpa, 5~50℃, (20~90)%RH
