Ф8.6 Children Test Finger Probe 18

Name: Ф8.6 Children Test Finger Probe 18
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HT-I12
Availability: InStock

Brand Name:	HeJin
Model Number:	HT-I12
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	30 sets / per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Children Finger Probe HT-I12

Handle Length:

451.6±0.8

Finger Probe Length:

57.9±0.15

Standard:

IEC 61032

Material:

Metal Wire + Nylon Handle

Application:

Test Finger Probe. Test Probe 18(small Finger Probe Ф8.6)

Finger Probe Diameter:

Ф8.6±0.1

Hemispherical:

R4.3±0.05

Packaging Details:

Cartoon Box

Highlight:

Ф8.6 Test Finger Probe 18

Ф8.6 Children Test Finger Probe 18

Ф8.6 Children Test Finger Probe

Product Description

IEC61032 Test Finger Probe Children Test Probe 18 Small Finger Probe Ф8.6

Standard:

IEC61032 Protection of persons and equipment by enclosures - Probes for verification figure 12 finger probe 18.

IEC60335-1 Safety of Household and Similar Electrical Appliances Part 1: General Requirements.

UL1017 Standard for safety vacuum cleaners,blower cleaners,and household floor finishing machines.

Application:

It is used to simulate the children who are older than 36 months and younger than 14 years to test whether the hazardous parts can be touched.

Test sample:

Easily accessible enclosure live parts or mechanical parts.

Feature:

Can be combined with the push-pull gauge to achieve force of 10N load test.

Parameters:

Name/Model	Children Finger Probe 18 /HT-I12
Hemispherical	R4.3±0.05
Finger probe diameter	Ф8.6±0.1
Finger probe length	57.9±0.15
Joint distance	19.3
Axes of joints diameter	Ф38.4±0.3
Axes of joints length	101.6±0.3
Handle diameter	Ф38.1±0.3
Handle length	451.6±0.8

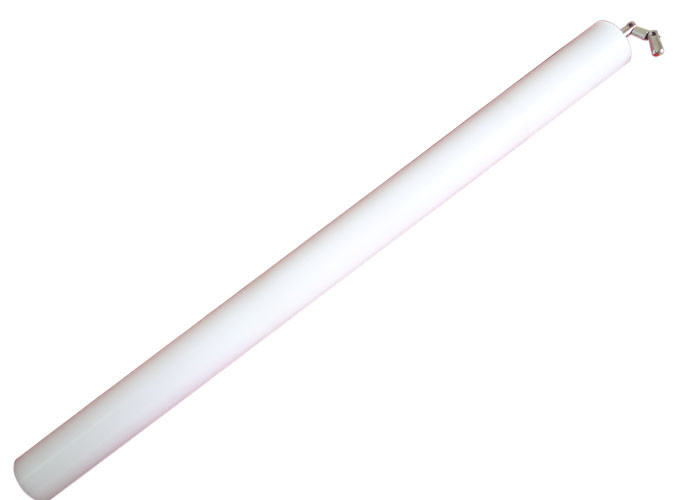

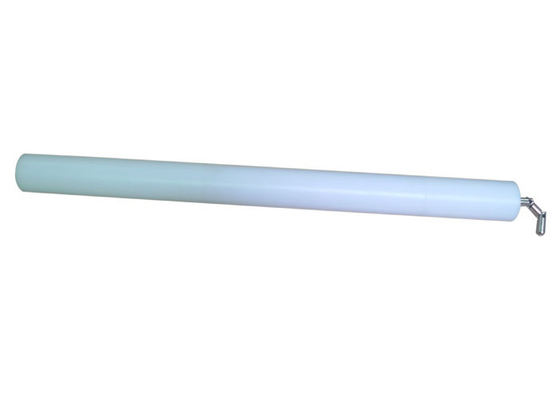

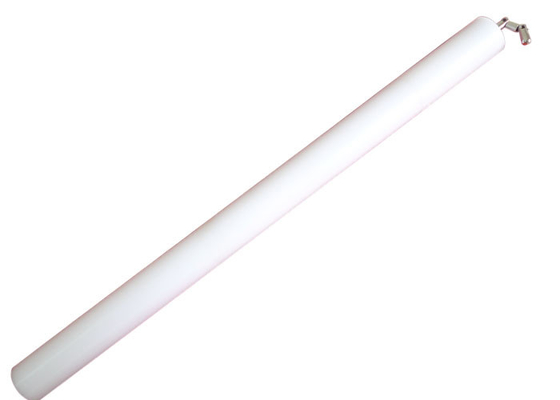

Ф8.6 Children Test Finger Probe 18 0

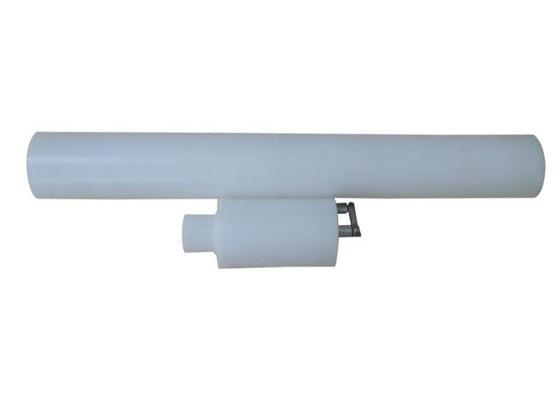

Ф8.6 Children Test Finger Probe 18 1
