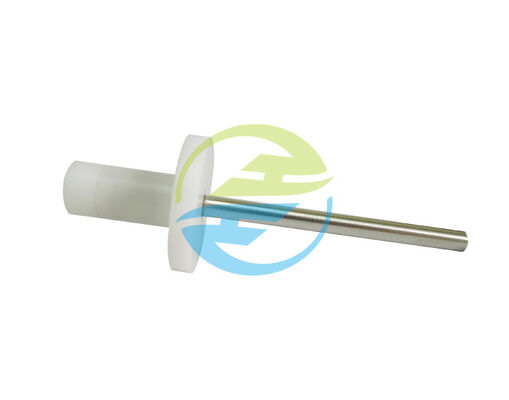

Baffle thickness 4 Test Finger Probe HT I08 Test Finger Diameter 12 optimized for accurate and safety compliance testing

Product Description:

The Test Finger Probe is a precision-engineered tool designed specifically for Laboratory Test Finger Simulation, making it an essential piece of IP Code Test Equipment. This device is meticulously crafted to replicate the dimensions and movements of a human finger, enabling accurate and reliable testing of various enclosures and devices to ensure compliance with international protection (IP) standards. Its design and specifications focus on precision, durability, and ease of use, making it an indispensable instrument in laboratories dedicated to safety and quality testing.

One of the key physical attributes of the Test Finger Probe is its handle diameter, which measures Ф10. This diameter is optimized to provide a comfortable and secure grip for operators during testing procedures, allowing for precise manipulation and control. The handle’s ergonomic design reduces user fatigue, which is especially beneficial during repetitive testing cycles, thereby improving overall efficiency and accuracy in Laboratory Test Finger Simulation tasks.

The metal pin of the probe, a critical component that simulates the fingertip, has a diameter of Ф4±0.05. This precise measurement is crucial in mimicking the exact size needed to test ingress protection accurately. The tolerance of ±0.05 ensures that the metal pin remains within strict manufacturing standards, guaranteeing consistent and repeatable test results. The metal pin’s robust construction allows it to withstand repeated use without deformation, maintaining the integrity of each test.

Complementing the metal pin is the baffle, which plays a vital role in the overall function of the Test Finger Probe. The baffle thickness is set at 4 millimeters, providing the necessary rigidity and stability during testing. Additionally, the baffle diameter is Ф25±0.2, a specification designed to ensure the probe fits precisely into test openings and gaps, replicating the size constraints of a human finger. This dimension is particularly important for simulating real-world scenarios where devices must prevent the intrusion of fingers or similar objects to meet IP protection standards.

The aesthetic design of the Test Finger Probe features a clean and professional color scheme of white and gray. These colors are not only visually appealing but also serve practical purposes. The white and gray tones enhance visibility against various test surfaces, allowing operators to easily monitor contact points during testing. This color combination also contributes to a modern and professional laboratory environment, reinforcing the product’s role as reliable IP Code Test Equipment.

Designed with Laboratory Test Finger Simulation in mind, this probe is compatible with a wide range of testing protocols and devices. It is commonly used in the evaluation of electrical enclosures, consumer electronics, industrial equipment, and other products where ingress protection is critical. By accurately simulating finger intrusion attempts, the Test Finger Probe helps manufacturers and testing laboratories verify that their products meet stringent safety and quality standards, thereby protecting end-users from electrical shocks, mechanical injuries, and contamination risks.

In summary, the Test Finger Probe is a highly specialized instrument engineered for precision and reliability in Laboratory Test Finger Simulation. Its carefully defined handle diameter of Ф10, metal pin diameter of Ф4±0.05, baffle thickness of 4, and baffle diameter of Ф25±0.2, combined with its distinctive white and gray color scheme, make it a standout choice for IP Code Test Equipment. Whether used in rigorous laboratory environments or quality control departments, this probe ensures that IP protection tests are conducted accurately and efficiently, supporting product safety and compliance worldwide.

Features:

• Product Name: Test Finger Probe
• Model: HT-I08
• Handle Length: 20 mm
• Handle Diameter: Ф10 mm
• Metal Pin Length: 50 ± 0.15 mm
• Baffle Diameter: Ф25 ± 0.2 mm
• Designed for use as IP Code Test Equipment
• Complies with Test Finger Probe IEC standards
• Ideal Appliance Safety Test Probe for electrical safety testing

Technical Parameters:

Applications:

The Test Finger Probe, model HT-I08, branded as Test Fixture 12 (test Long Pin), is a precision testing tool designed to meet rigorous safety and compliance standards. Originating from China, this product is crafted with high-quality materials, featuring a white and gray color scheme that ensures both durability and visibility during testing procedures. With a baffle diameter of Ф25±0.2 and a baffle thickness of 4mm, along with a metal pin length of 50±0.15mm, the HT-I08 is engineered to provide accurate simulation of human finger access in safety testing environments.

This Test Finger Probe IEC is widely used in various product safety assessments, especially in electrical and electronic device manufacturing where compliance with IEC 61032 standards is mandatory. It serves as an essential tool in verifying the adequacy of protective enclosures by simulating finger access to hazardous parts, thereby preventing accidental contact and ensuring user safety. The IEC 61032 Probe is indispensable for quality control laboratories, certification bodies, and manufacturers who need to validate the safety features of their products before market release.

In practical scenarios, the Test Finger Probe is utilized during product development and final inspections to test devices such as household appliances, industrial machinery, and consumer electronics. It is particularly beneficial in situations where precise and standardized finger probe testing is required to meet regulatory requirements. The availability of a calibration certificate (at an additional cost) ensures that the probe maintains accuracy over time, which is crucial for repeatable and reliable testing results.

With a minimum order quantity of just 1 set and a negotiable price, the HT-I08 model is accessible to both small-scale testing labs and large manufacturing facilities. The product is securely packaged in a cartoon box to prevent damage during shipping, with a typical delivery time of 14 days. Payment terms include T/T and L/C, facilitating flexible transaction options. The supply ability of 30 sets per month ensures steady availability for ongoing testing needs.

Overall, the Test Finger Probe IEC HT-I08 is an essential instrument for ensuring product safety compliance. Its precise dimensions and robust construction make it ideal for a variety of testing occasions, including routine quality checks, certification processes, and compliance verifications in industries that prioritize user safety and regulatory adherence.

Support and Services:

Product Technical Support and Services for the Test Finger Probe are designed to ensure optimal performance and user satisfaction. Our technical support team is available to assist with installation, calibration, troubleshooting, and maintenance of the device. We provide detailed product manuals and online resources to help users understand the features and proper usage of the Test Finger Probe.

In addition to technical assistance, we offer comprehensive training services to help users maximize the benefits of the Test Finger Probe. Our support includes firmware updates and software integration guidance to keep the device operating at the highest standards. We are committed to providing timely and effective solutions to any technical issues that may arise.

For warranty service and repairs, our product support ensures that the Test Finger Probe is handled by qualified technicians using genuine replacement parts. We also offer extended service plans and routine maintenance packages to prolong the life and accuracy of your device. Our goal is to deliver reliable, high-quality support throughout the lifespan of your Test Finger Probe.

Packing and Shipping:

Product Packaging:

The Test Finger Probe is carefully packaged to ensure maximum protection during transit. Each probe is individually sealed in a sterile, tamper-evident blister pack to maintain hygiene and prevent contamination. The blister pack is then placed inside a sturdy, cushioned box designed to absorb shocks and prevent damage. The outer packaging includes clear labeling with product information, instructions for use, and safety warnings.

Shipping:

All Test Finger Probe orders are processed promptly and shipped using reliable carriers to ensure timely delivery. The product is shipped in temperature-controlled conditions when necessary to maintain its integrity. Tracking information is provided for all shipments, and careful handling is ensured to avoid exposure to moisture, extreme temperatures, or physical impact. International shipments comply with all applicable regulations and customs requirements to guarantee smooth delivery to the destination.

FAQ:

Q1: What is the brand and model number of the Test Finger Probe?

A1: The Test Finger Probe is branded as Test Fixture 12 (test Long Pin) with the model number HT-I08.

Q2: Where is the Test Finger Probe manufactured?

A2: The Test Finger Probe is manufactured in China.

Q3: Is a calibration certificate available for the Test Finger Probe?

A3: Yes, a calibration certificate is available for the Test Finger Probe, but it is provided at an additional cost.

Q4: What is the minimum order quantity and price for the Test Finger Probe?

A4: The minimum order quantity is 1 set, and the price is negotiable depending on your order requirements.

Q5: What are the packaging and delivery details for the Test Finger Probe?

A5: The Test Finger Probe is packaged in a cartoon box, with a delivery time of approximately 14 days.

Q6: What payment terms are accepted for purchasing the Test Finger Probe?

A6: Payment can be made via T/T (Telegraphic Transfer) or L/C (Letter of Credit).

Q7: What is the supply capacity for the Test Finger Probe?

A7: The supply ability is 30 sets per month.
