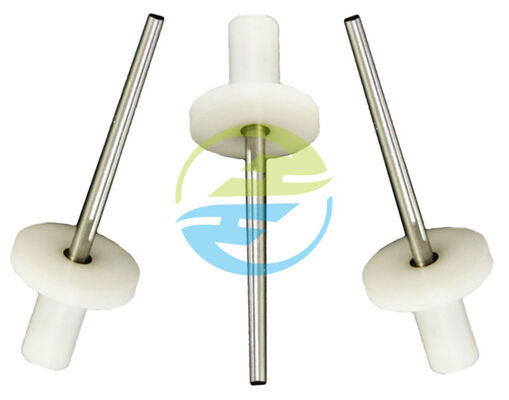

Metal pin length 50±015 Test Finger Probe white and gray color featuring baffle thickness 4 optimized for electronic component testing accuracy

Product Description:

The Long Pin Test Probe 12, model HT-I08, is a precision-engineered testing instrument designed to meet stringent safety standards and ensure reliable performance in various testing environments. This probe is an essential tool for manufacturers, quality control professionals, and safety engineers who require accurate and consistent results when assessing the safety compliance of electrical and electronic devices. Manufactured with meticulous attention to detail, the Long Pin Test Probe 12 is fully compliant with IEC 61032 standards, making it an indispensable component in safety testing protocols.

One of the key features of the HT-I08 model is its metal pin, which has a diameter of Ф4±0.05 mm. This precise measurement ensures that the probe can accurately simulate potential contact points and penetration scenarios during testing procedures. The metal pin's consistency in diameter is critical for replicating the exact conditions specified in the IEC 61032 Probe guidelines, thus guaranteeing that safety compliance tests produce valid and repeatable results. The probe’s long pin design allows it to reach deeper into enclosures or devices, facilitating comprehensive testing of areas that are otherwise difficult to access.

The handle of the Long Pin Test Probe 12 is designed for ergonomic use and durability. With a handle diameter of Ф10 mm, it provides a comfortable grip that enhances user control and precision during testing operations. The handle’s robust construction ensures that the probe remains stable and easy to maneuver, even during extended periods of use. This design consideration helps reduce operator fatigue and increases the overall efficiency of safety compliance assessments.

Another important aspect of the HT-I08 probe is its baffle, which has a diameter of Ф25±0.2 mm. The baffle serves as a safety barrier and positioning guide, enabling testers to maintain the correct alignment and depth when inserting the probe into device openings. This feature is crucial for maintaining test integrity, as it prevents the probe from being inserted too deeply or at incorrect angles, which could otherwise lead to inaccurate test outcomes. The baffle’s precise dimensions are in accordance with the IEC 61032 Probe specifications, further reinforcing the probe’s suitability for standardized safety testing.

As a Safety Compliance Probe, the Long Pin Test Probe 12 plays a vital role in verifying that products meet established safety requirements before they reach the market. By using this probe, testing personnel can effectively identify potential hazards such as electrical shock risks, mechanical entrapment, or other dangerous conditions that could pose a threat to end users. The probe’s compliance with IEC 61032 ensures that it can be reliably used in a wide range of testing scenarios, including those mandated by international safety certification bodies.

In summary, the Long Pin Test Probe 12 (model HT-I08) is a high-quality IEC 61032 Probe designed for rigorous safety compliance testing. Its metal pin diameter of Ф4±0.05 mm, handle diameter of Ф10 mm, and baffle diameter of Ф25±0.2 mm make it a precise and dependable tool for assessing product safety. This Safety Compliance Probe is built to meet the demands of professional testing environments, helping manufacturers and safety engineers uphold the highest standards of product safety and regulatory compliance. Whether used in electrical, electronic, or mechanical product testing, the Long Pin Test Probe 12 is an essential instrument for ensuring that products are safe for consumer use and adhere to international safety standards.

Features:

• Product Name: Test Finger Probe
• Model: HT-I08
• Name: Long Pin Test Probe 12
• Metal Pin Diameter: Ф4±0.05
• Handle Diameter: Ф10
• Color: White and Gray
• Designed for Laboratory Test Finger Simulation
• Test Probe suitable for IP1X–IP4X protection level testing
• Effective Accessibility Test Tool for ensuring compliance

Technical Parameters:

Applications:

The Test Finger Probe, branded as Test Fixture 12 (test Long Pin) with model number HT-I08, is an essential tool designed for a variety of product application occasions and testing scenarios. Manufactured in China, this high-quality testing probe is specifically engineered to meet stringent industry standards, making it an ideal choice for professionals engaged in electrical safety and ingress protection testing.

This test probe is widely used in IEC Safety Testing Tools applications, where it serves to ensure that electrical devices comply with international safety regulations. It is particularly effective for verifying the safety of enclosures against accidental contact with hazardous parts. The Long Pin Test Probe 12 is designed with a metal pin length of 50±0.15 mm and a handle diameter of Ф10, providing precise and reliable measurements during testing procedures.

One of the key application scenarios for the HT-I08 model is in IP Code Test Equipment for assessing protection levels against solid object ingress. This probe is suitable for testing devices rated from IP1X through IP4X, making it indispensable for quality control in manufacturing plants and certification laboratories. The probe’s baffle thickness of 4 mm ensures accurate simulation of finger ingress, which is critical in validating product compliance with IP codes.

Due to its robust construction featuring white and gray colors, the Test Finger Probe is easy to handle and distinguish in busy testing environments. It comes packaged in a sturdy cartoon box, ensuring safe delivery and storage. With a supply ability of 30 sets per month and a minimum order quantity of just one set, this product offers flexibility for both small-scale and large-scale testing operations.

Calibration certificates are available at an additional cost, providing customers with verified accuracy and confidence in their testing results. The delivery time is approximately 14 days, and payment terms are negotiable, including T/T and L/C options, accommodating various procurement needs.

In summary, the Test Fixture 12 Long Pin Test Probe HT-I08 is an indispensable tool for professionals conducting IEC safety testing and IP ingress protection assessments. Its precise dimensions, solid construction, and compliance with international standards make it a reliable choice for ensuring product safety and quality in diverse industrial and laboratory settings.

Support and Services:

Our Test Finger Probe is designed to provide accurate and reliable biometric readings for various testing applications. To ensure optimal performance, please follow the usage guidelines carefully and maintain the device as instructed.

If you experience any issues with the Test Finger Probe, first verify that the device is properly connected and the software is correctly installed. Clean the probe surface regularly with a soft, lint-free cloth to avoid any interference with sensor accuracy.

For troubleshooting, consult the user manual provided with the product. It includes detailed instructions on calibration, error codes, and maintenance tips to help you resolve common problems.

We offer comprehensive technical support to assist with installation, configuration, and operation of the Test Finger Probe. Our support team is available to guide you through any technical challenges and ensure your device functions effectively.

Additionally, we provide repair and replacement services under the product warranty. Please review the warranty terms to understand the coverage and claim procedures.

For software updates and additional resources such as FAQs and instructional videos, visit our official support website. Keeping your device's firmware and software up to date is essential for maintaining compatibility and performance.

Your satisfaction and the reliability of the Test Finger Probe are our top priorities. Do not hesitate to seek assistance should you require further help or information regarding our product and services.

Packing and Shipping:

Product Packaging and Shipping for Test Finger Probe

The Test Finger Probe is carefully packaged to ensure it arrives safely and in perfect working condition. Each probe is individually sealed in a protective plastic cover to prevent contamination and damage during transit. The probe is then placed in a sturdy, cushioned box with foam inserts to absorb shocks and vibrations.

For bulk orders, multiple probes are securely arranged in a larger carton with additional padding to maintain stability and prevent movement. All packaging materials used are eco-friendly and compliant with international shipping regulations.

Shipping options include standard, expedited, and express services to accommodate various delivery timeframes. Each shipment is tracked with a unique tracking number, providing real-time updates until delivery. We ensure timely dispatch and reliable delivery to your specified address worldwide.

Before shipping, every Test Finger Probe undergoes a final quality inspection to verify functionality and accuracy. Detailed user manuals and warranty information are included in the package to assist with proper usage and support.

FAQ:

Q1: What is the brand and model number of the Test Finger Probe?

A1: The brand name is Test Fixture 12 (test Long Pin) and the model number is HT-I08.

Q2: Where is the Test Finger Probe manufactured?

A2: The Test Finger Probe is made in China.

Q3: Is a calibration certificate available for the Test Finger Probe?

A3: Yes, a calibration certificate is available for an additional cost.

Q4: What is the minimum order quantity and price for the Test Finger Probe?

A4: The minimum order quantity is 1 set and the price is negotiable.

Q5: What are the packaging details and delivery time for the Test Finger Probe?

A5: The product is packaged in a cartoon box and the delivery time is typically 14 days.

Q6: What payment terms are accepted for purchasing the Test Finger Probe?

A6: Payment terms accepted include T/T (Telegraphic Transfer) and L/C (Letter of Credit).

Q7: What is the supply ability of the Test Finger Probe?

A7: The supply ability is 30 sets per month.
