IEC60884-1 Single Station Plug Socket Test Equipment For Plug Pins

Name: IEC60884-1 Single Station Plug Socket Test Equipment For Plug Pins
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HC9928
Availability: InStock

Brand Name:	HeJin
Model Number:	HC9928
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	20 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

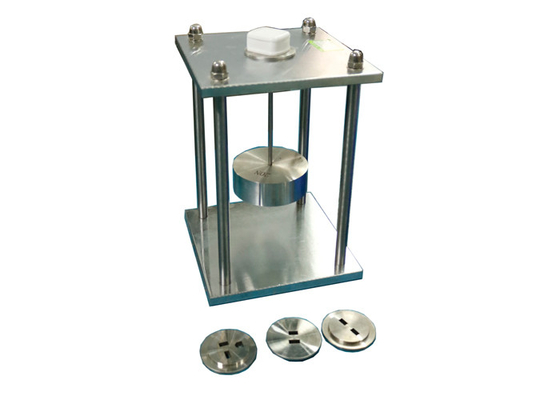

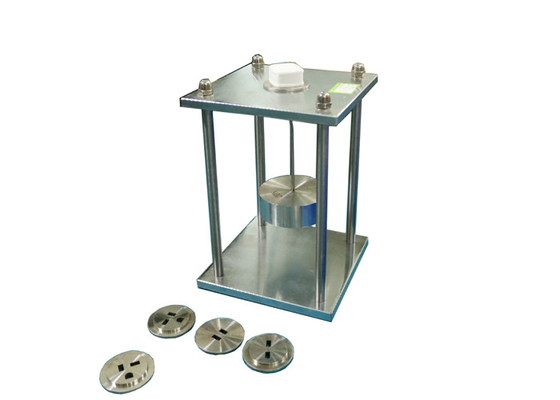

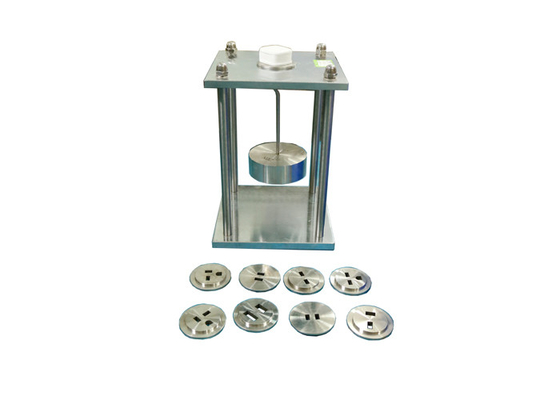

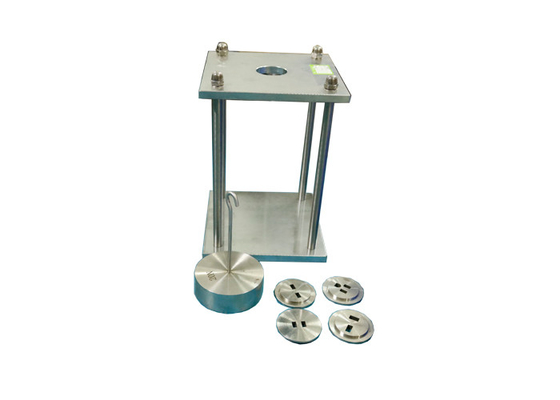

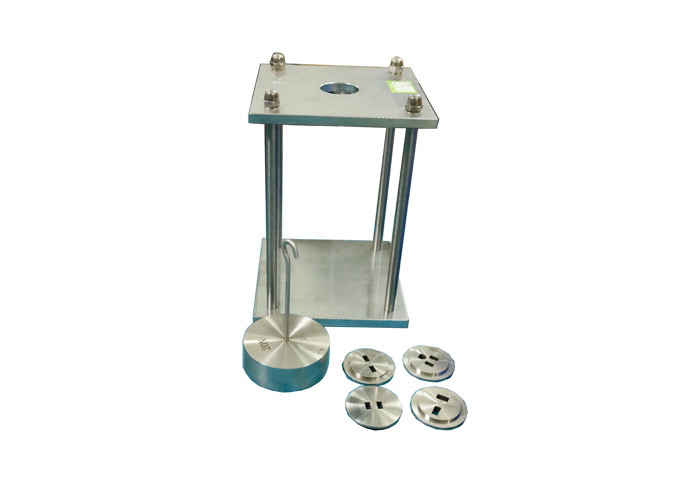

Apparatus To Verify The Fixation Of Pins In The Body Of The Plug HC9928

Test Sample:

Plug Pins

Function:

Plug Socket Test Equipment

Standard:

IEC 60884-1

TEST WEIGHT:

50N*1, 20N*2, 30N*1, 4N*1

Test Station:

Single Station

Packaging Details:

Plywood

Highlight:

IEC60884-1 Plug Socket Test Equipment

IEC60884-1 Single Station Plug Socket Test

IEC60884-1 Test Equipment For Plug Pins

Product Description

Plug Socket Test Equipment Apparatus To Verify The Fixation Of Pins In The Body Of The Plug

Standard:

IEC 60884-1 2013 ‘Plugs and socket-outlets for household and similar purposes -- Part 1: General requirements’ clause 24.10 and figure 30

Application:

This device is use to verify the fixation of pins in the body of the plug.Plug Socket Test Equipment

Test sample: Plug pins.

Feature:

In according with standard requirements, to verify the fixation of pins in the body of the plug

Parameters:

Station	1 station. Plug Socket Test Equipment
Weights	4N, 20N, 30N for ordinary hole, one in each; 50N, 20N with hook, one in each
Gauges	provide 6A plug gauge, 10A plug gauge, 16A plug gauge, one each；For flat pins, hole size equal to pin size plus 4±0.44mm；For round pins, hole size equal to pin diameter plus 6±0.5mm. (Customizable)
Clamp unit	plug pin clamp unit, 1 set

To be test within a heating cabinet at a temperature of (70 ± 2) °C

Table 16 – Maximum and minimum withdrawal force for plugs and socket-outlets

Ratings of the accessory	Number of the poles of the accessory	Withdrawal force N
		Multi-pin gauge maximum	Multi-pin gauge maximum	Single-pin gauge maximum^a
Up to and including 13 A	2	40	1.5	17
	3	50
	5	70
Up to and including 13 A	2	50	2.0	25
	3	54
	More than 3	70
Above 16 A up to and including 32 A	2	80	3.0	27
	3	80
	More than 3	100
a These withdrawal forces are only for testing the resilient earthing contact assembly of a plug.
