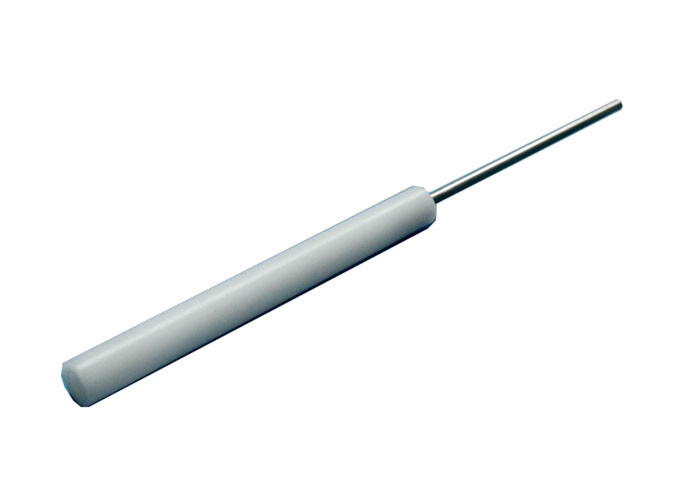

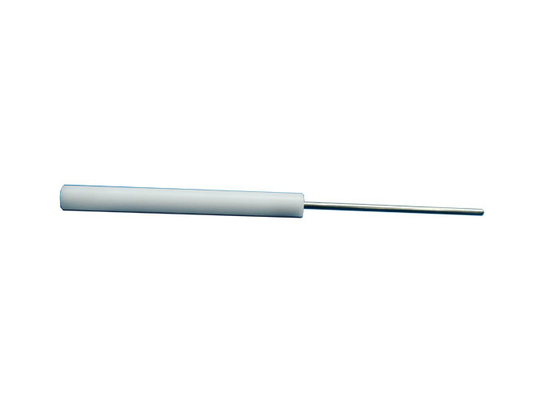

Nylon Handle 3mm Cylindrical Steel Rod With SUS304

Name: Nylon Handle 3mm Cylindrical Steel Rod With SUS304
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HC9929
Availability: InStock

Brand Name:	HeJin
Model Number:	HC9929
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	50 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

3mm Cylindrical Steel Rod HC9929

Test Sample:

Portable Socket-outlet

Function:

Plug Socket Test Equipment

Standard:

IEC 60884-1

Steel Rod:

Diameter 3mm

Syeel Rod Material:

SUS304

End Of The Rod:

Hemispherical With A Radius Of 1.5 Mm

Handle:

Nylon

Packaging Details:

Carton Box

Highlight:

Cylindrical Steel Rod With SUS304

3mm Cylindrical Steel Rod

Nylon Handle 3mm Cylindrical Rod

Product Description

Plug Socket Test Equipment 3mm Cylindrical Steel Rod With SUS304

Standard:

IEC 60884-1 2013 ‘Plugs and socket-outlets for household and similar purposes -- Part 1: General requirements’ clause 24.11

Standard description:

Barriers, between the space intended for the suspension means fixed to the mounting surface and the live parts, likely to be subjected to mechanical strain when the portable socket-outlet is suspended on a mounting surface, are tested as follows.

A cylindrical steel rod, having a diameter of 3 mm and a hemispherical end with a radius of 1.5 mm, is pushed perpendicular to the supporting mounting surface, in the most unfavourable position, for 10 s against the barrier, the force being equal to 1.5 times the maximum plug withdrawal force (as specified in 22.2, table 16).

Application:

This device is use to test mechanical strain ability of portable socket-outlet

Test sample:

Portable socket-outlet

Parameters:

Steel rod	Diameter 3mm, SUS304
End of the rod	hemispherical end with a radius of 1,5 mm
Handle	Nylon, the end of the handle with M6 threaded hole to match push pull meter

Nylon Handle 3mm Cylindrical Steel Rod With SUS304 0
