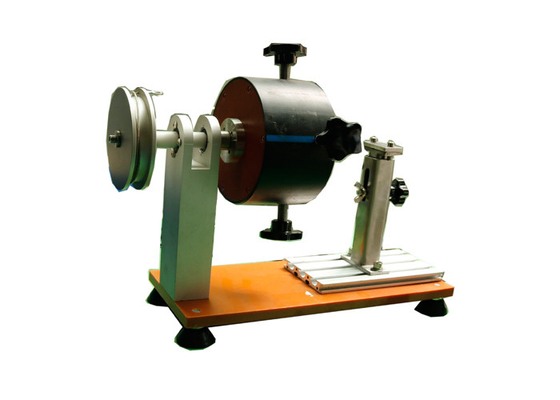

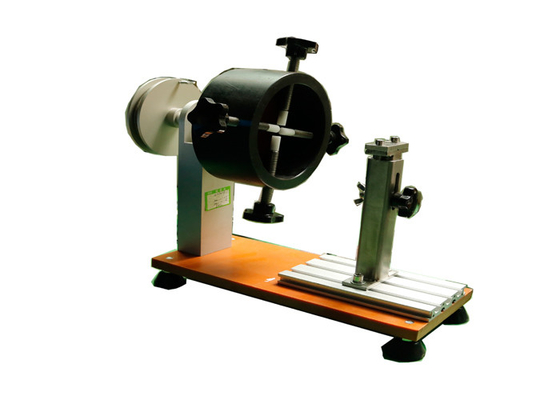

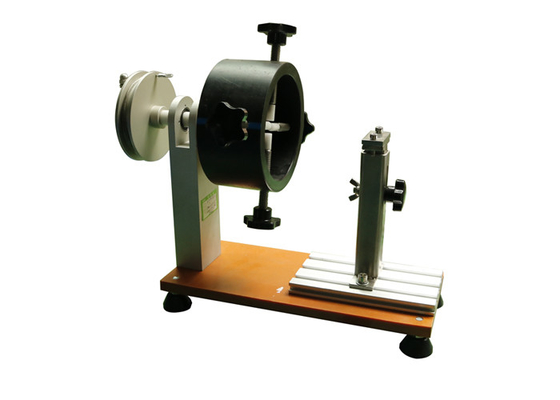

IEC 60884 100mm Torque Disc Flexing Cable Torque Tester

Name: IEC 60884 100mm Torque Disc Flexing Cable Torque Tester
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HC9918
Availability: InStock

Brand Name:	HeJin
Model Number:	HC9918
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	20 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Flexing Cable Torque Tester For Testing The Wear Resistance Ability HC9918

Torque Disc:

Diameter 100mm

Function:

Plug Socket Test Equipment

Standard:

IEC 60884-1

Test Weight:

2N, 3N, 5N, 7N, 8.5N

1. Torque Disc:

Diameter 100mm

Packaging Details:

Carton Box

Highlight:

IEC 60884 Flexing Cable Torque Tester

100mm Disc Flexing Cable Torque Tester

Flexing Cable Torque Tester

Product Description

IEC 60884 Plug Socket Test Equipment Flexing Cable Torque Tester For Testing The Wear Resistance Ability

Standard:

IEC 60884-1 2013 ‘Plugs and socket-outlets for household and similar purposes -- Part 1: General requirements’ clause 23.2

Application:

This device is used for testing the wear resistance ability of flexing cable with protective sheath of plug, portable socket-outlet, fixed accessories with conductor and connectors, not including the stress of twist. Plug Socket Test Equipment

Test sample:

Power cords and wires for household and similar purposes.

Feature:

In according with standard requirements. Plug Socket Test Equipment

Parameters:

Torque disc: diameter 100mm

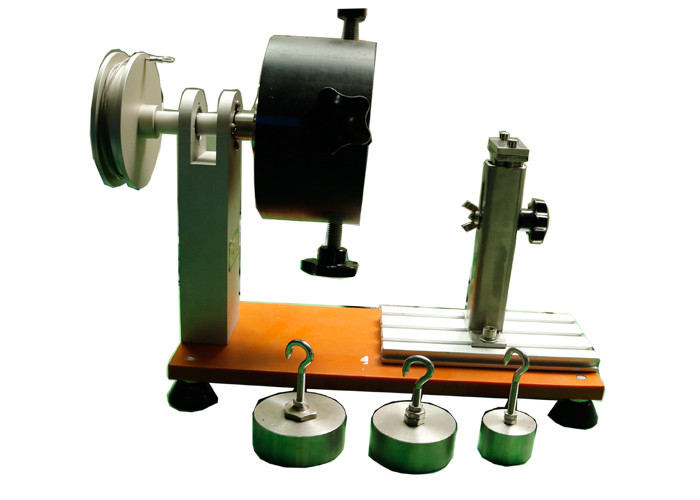

Weights: 2N, 3N, 5N, 7N, 8.5N, one each. To achieve 0.1, 0.15, 0.25, 0.35, 0.425N.m torque respectly
Torque test values for cord anchorages

Rating of plug or portable socket-outlet	Flexible cable (number of cores × nominal cross-sectional area in mm2)
Rating of plug or portable socket-outlet	2×0.5	2×0.75	3×0.5	2×0.75	(2 or more)×1
Up to and including 16A and 250V	0.1N.m	0.15N.m	0.15N.m	0.25N.m	0.25N.m
16A and above 250V					0.35N.m
Above 16A					0.425N.m

IEC 60884 100mm Torque Disc Flexing Cable Torque Tester 0
