60Times/Min AC220V 50Hz Plug Socket Test Equipment

Name: 60Times/Min AC220V 50Hz Plug Socket Test Equipment
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HC9917
Availability: InStock

Brand Name:	HeJin
Model Number:	HC9917
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Apparatus For Testing Cord Retention HC9917

Power Supply:

AC 220V 50Hz

Rate Of Testing:

60 Times / Min

Standard:

IEC 60884-1

Weight:

10N*1, 60N*1, 20N*2

Test Time:

0-9999, Preset

Packaging Details:

Plywood

Highlight:

50Hz Plug Socket Test Equipment

AC220V Plug Socket Test Equipment

60Times/Min Plug Socket Test Equipment

Product Description

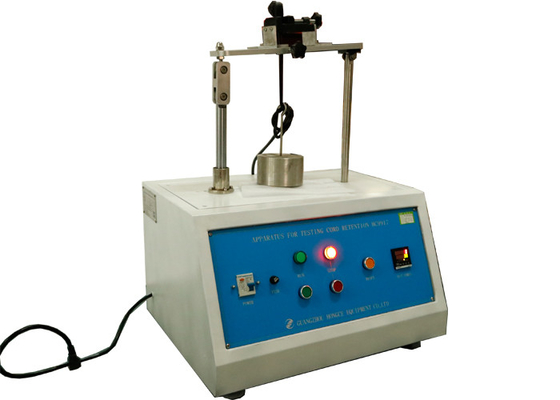

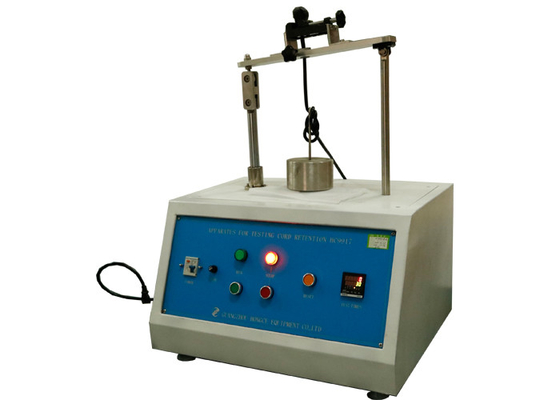

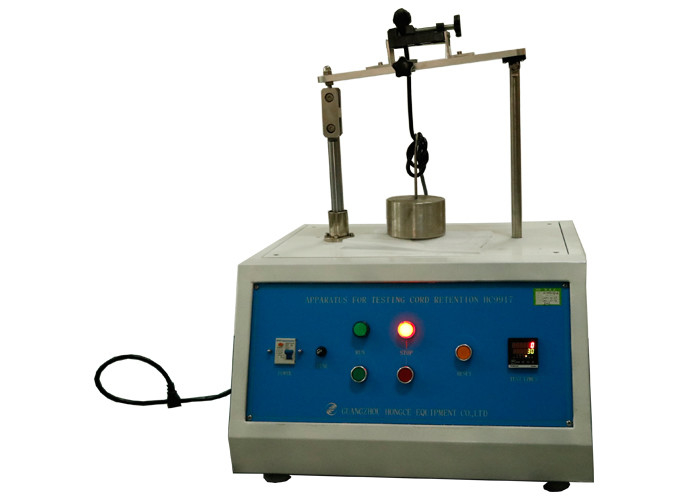

IEC60884 Plug Socket Test Equipment Apparatus for Testing Cord Retention

Standard:

IEC 60884-1 2013 ‘Plugs and socket-outlets for household and similar purposes -- Part 1: General requirements’ clause 23.2 and figure 20

Application:

This device is used for test the firmness of the plug wire and electrical accessories. Plug Socket Test Equipment

Test sample:

Non-rewirable plug and socket-outlet, rewirable plug and socket-outlet. Plug Socket Test Equipment

Feature:

In according with standard requirements. To test the firmness of the plug wire and electrical accessories.

Parameters:

Power supply	AC 220V 50Hz
Weights	10N1, 60N1, 20N*2
Rate of testing	60 times / min
Test times	0-9999, preset. Default 100 times

The pull force to the flexible cable:

The rated current of the flexible cable(A)	The rated voltage of the flexible cable(V)	The tensile force
2.5	—	50
2.5～16	<250	60
2.5～16	>250	80
>16	—	100
