AC220V Screwless Terminals Thermal Stress Tester Plug Socket Test Equipment

Name: AC220V Screwless Terminals Thermal Stress Tester Plug Socket Test Equipment
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HC9904
Availability: InStock

Brand Name:	HeJin
Model Number:	HC9904
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	20 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

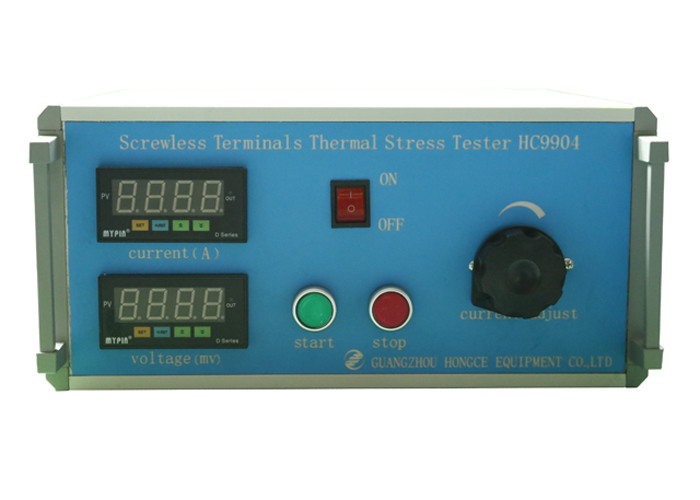

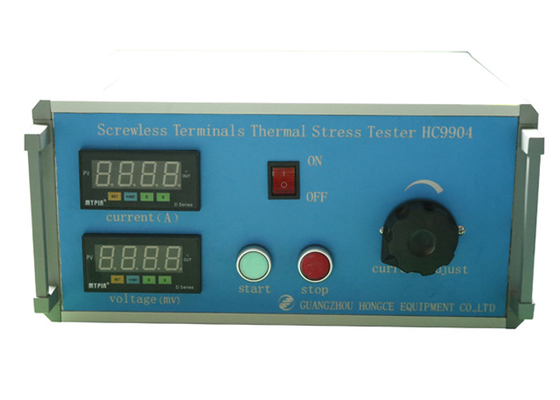

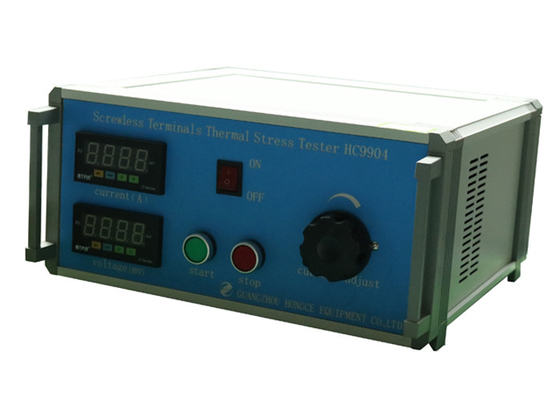

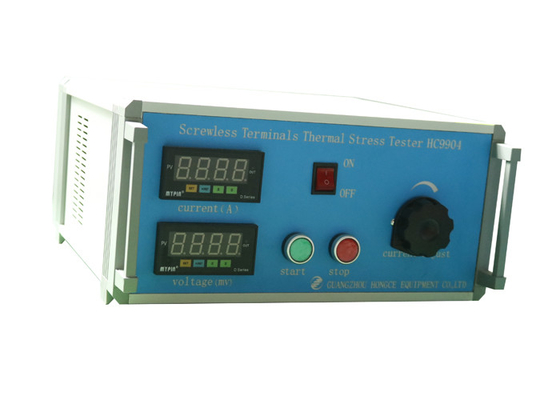

Screwless Terminals Thermal Stress Tester HC9904

Test Sample:

Screwless Terminals

Standard:

IEC 60884-1

Test Current:

AC 1~99.9A±(3%±1A)

Power Supply:

AC220V 5A 50HZ

Voltage Drop Measurement:

0~199.9±(3%±1mv)

Packaging Details:

Carton Box

Highlight:

Screwless Terminals Thermal Stress Tester

AC220V Plug Socket Test Equipment

AC220V Screwless Terminals Test Equipment

Product Description

Plug Socket Test Equipment Screwless Terminals Thermal Stress Tester IEC 60884-1

Standard:

IEC 60884-1 2013 ‘Plugs and socket-outlets for household and similar purposes -- Part 1: General requirements’ clause 12.3.11

Application:

Screwless terminals shall withstand the electrical and thermal stresses occurring in normal use.

This device is use to check whether the screwless terminals can withstand the electrical and thermal stresses occurring in normal use. Plug Socket Test Equipment

Test sample:

Screwless Terminals. Plug Socket Test Equipment

Feature:

Loading the screwless terminals for 1 h with an alternating current as specified in table 10 and connecting rigid solid conductors 1 m long having the nominal cross-sectional area as specified in the same table. Then measure the voltage drop.

Table 10- Test current for the verification of electrical and thermal stresses in normal use for screwless terminals

Rated current

Test current

Nominal cross-sectional area of the conductor

mm²

10 and 13

17.5

1.5

2.5

NOTE For socket-outlets having rated currents lower than 10 A, the test current is proportionally determined and the cross-sectional area of the conductors is 1.5 mm ² .

Parameters:

Test cycles	192 cycles, current flow for 30min, no current flow for 30min
Power supply	AC220V 5A 50HZ
Test current	AC 1~99.9A±(3%±1A)
Voltage drop measurement	0~199.9±(3%±1mv)
