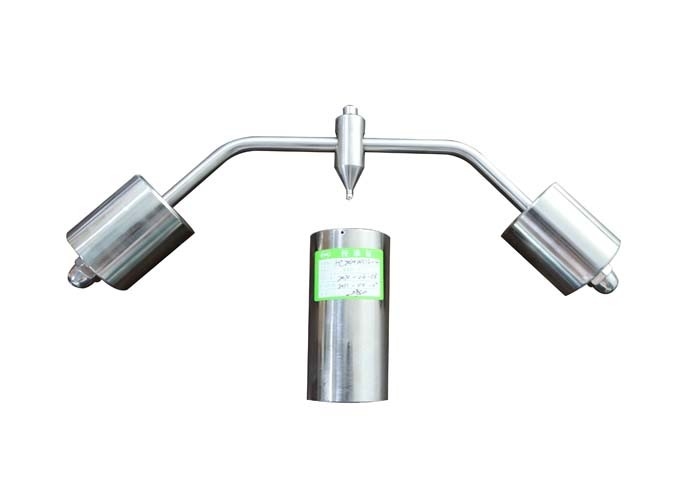

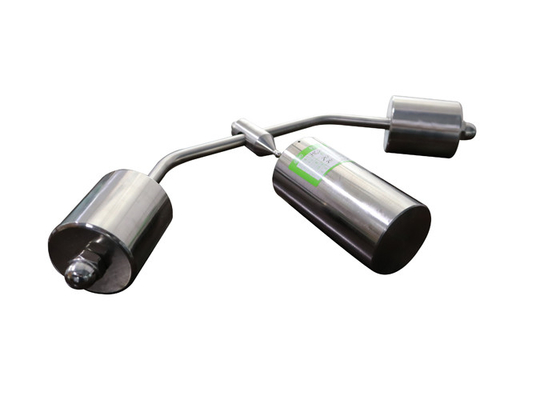

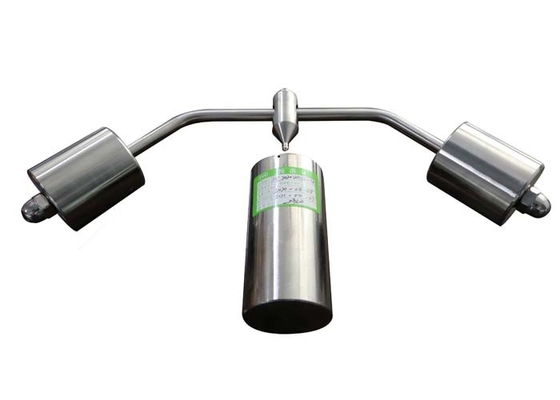

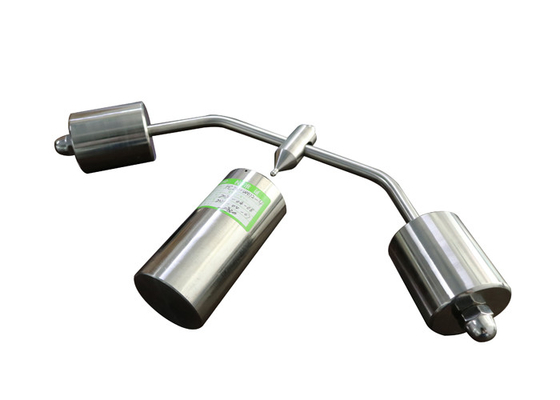

20N Press Force SS Ball Pressure Tester Plug Socket Test Equipment

Name: 20N Press Force SS Ball Pressure Tester Plug Socket Test Equipment
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HC9933
Availability: InStock

Brand Name:	HeJin
Model Number:	HC9933
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	100 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Ball Pressure Test Apparatus HC9933

Radius Of Steel Ball:

SR2.5mm

Standard:

IEC 60884-1

Material:

Stainless Steel

Press Force:

20N

Support Base:

Diameter 50mm, Length 100mm, With A Thermometer Hole, Made Of Stainless Steel

Packaging Details:

Aluminum Box

Highlight:

20N Ball Pressure Tester

20N Ball Pressure Test Equipment

20N SS Ball Pressure Tester

Product Description

Plug Socket Test Equipment Ball Pressure Test Apparatus Made Of Stainless Steel

Standard:

IEC 60884-1 2013 ‘Plugs and socket-outlets for household and similar purposes -- Part 1: General requirements’ clause 25.2, 25.3 and figure 37

Application:

This device is use for heat resistance test to verify the heat resistant performance of insulating material covers and outer parts of the electric appliance . Plug Socket Test Equipment

Test sample:

Insulating material covers and outer parts of the electric appliance. Plug Socket Test Equipment

Feature:

This device is made in according with figure 37.

The test is made in a heating cabinet at a temperature of (125 ± 2) °C. After 1 h the ball shall be removed from the specimen, which is then immersed within 10 s, in cold water for cooling down to approximately room temperature. The diameter of the impression caused by the ball is measured and shall not exceed 2 mm.

Parameters:

Radius of steel ball	SR2.5mm
Press force	20N
Support base	Diameter 50mm, length 100mm, with a thermometer hole, made of stainless steel

20N Press Force SS Ball Pressure Tester Plug Socket Test Equipment 0
