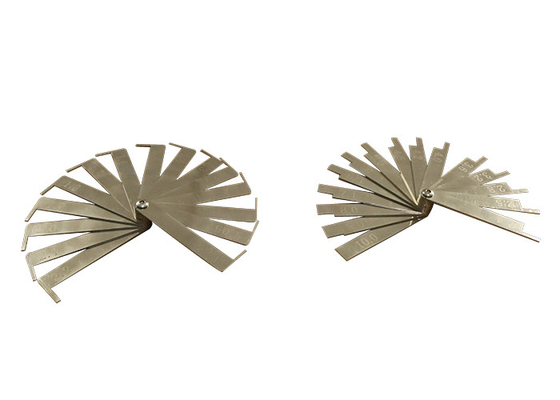

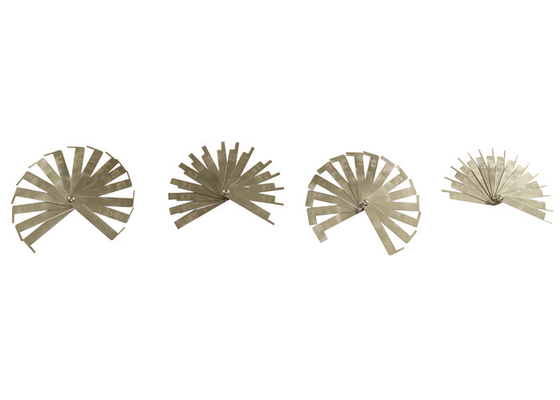

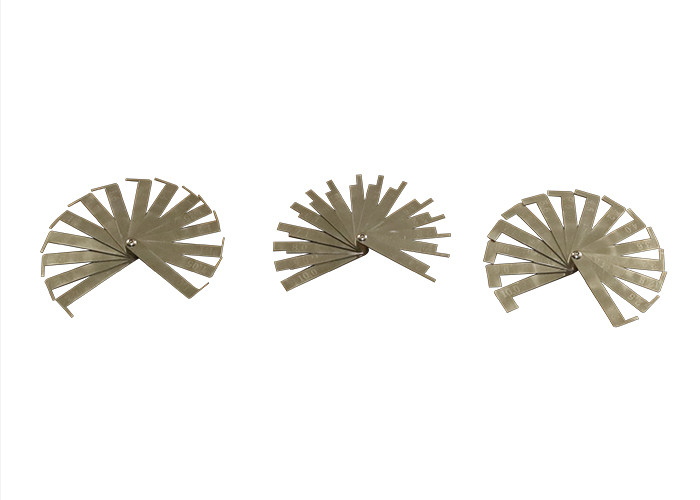

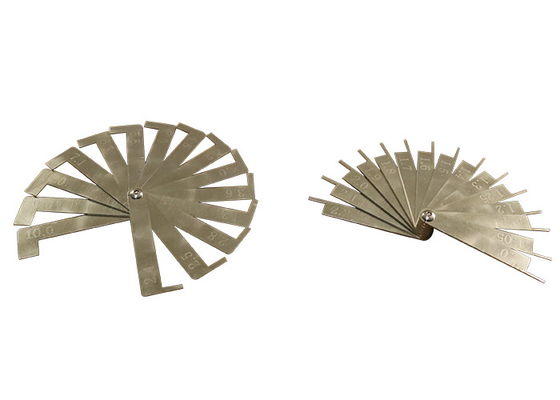

SS Creepage Distance Test Cards For Electrical Conductive Parts

Brand Name:	HeJin
Model Number:	HC9934A/HC9934D
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	40 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Creepage Distance Test Gauge HC9934D

Test Sample:

Electrical Conductive Parts

Standard:

IEC 60884-1, IEC 60335-1

Material:

Stainless Steel

Function:

Creepage Distance Test Cards

Total Size:

15 Or 30 Creepage Distance Gauges

Packaging Details:

Carton Box

Highlight:

Creepage Distance Test Cards

SS Creepage Distance Test Cards

Distance Test Cards For Electrical Conductive

Product Description

Plug Socket Test Equipment Creepage Distance Test Cards For Electrical conductive parts

Standard:

IEC 60884-1 2013 ‘Plugs and socket-outlets for household and similar purposes -- Part 1: General requirements’clause 27

IEC60335-1 ‘Safety of Household And Similar Electrical Appliances - Part 1: General Requirements’

Application:

This device is use for test the creepage distances, clearances and distances through sealing compound between two conductive parts or from a conductive part to surface of device.

They are used to determine the shortest path between two conductive parts, or between a conductive part and the bounding surface of the equipment, measured along the surface of the insulation, with specifications made according to the requirements.

Test sample:

Electrical conductive parts.Plug Socket Test Equipment

Feature:

Stainless steel, pawn type, to verify the creepage distance between conductive components

Parameters:

Model No.	Size Specification
HC9934A	1mm/1.5mm/2mm/2.5mm/3mm/3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.5mm/7mm/7.5mm/8mm. Total 15 creepage distance gauges
HC9934D	1.0mm/1.05mm/1.1mm/1.2mm/1.25mm/1.3mm/1.4mm/1.5mm/1.6mm/1.7mm/1.8mm/1.9mm/2.0mm/2.1mm /2.2mm/2.4mm/2.5mm/2.8mm/3.2mm/3.6mm/4.0mm/4.2mm/4.5mm/5.0mm/5.6mm/6.3mm/7.1mm/8.0mm/9.0mm/10.0mm. Total 30 creepage distance gauges

SS Creepage Distance Test Cards For Electrical Conductive Parts 0
