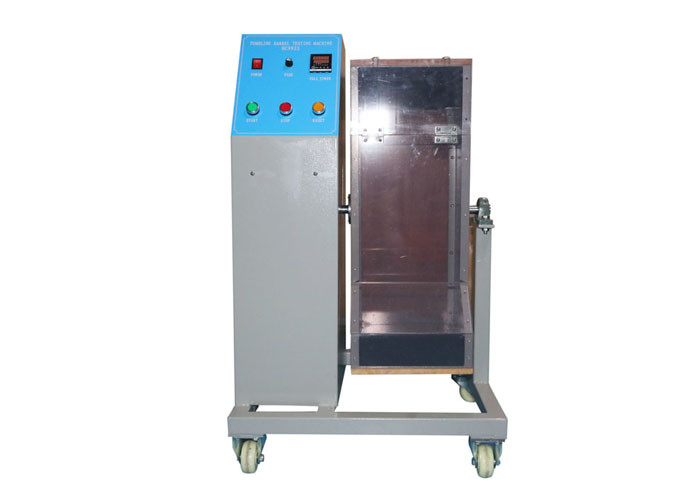

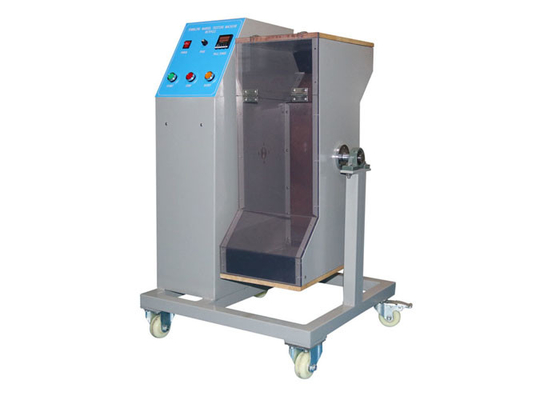

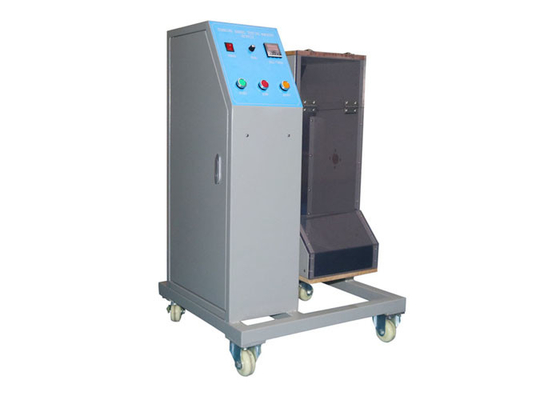

500mm Drop Height 5rpm Speed Tumbling Barrel Tester

Name: 500mm Drop Height 5rpm Speed Tumbling Barrel Tester
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HC9922
Availability: InStock

Brand Name:	HJ
Model Number:	HC9922
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	20 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Barrel Testing Machine HC9922

Rotate Speed:

5rpm

Drop Rate:

10 Time Per Min

Standard:

IEC 60884-1, IEC 60068-2-31

Test Times:

0~9999

Drop Height:

500mm

Barrel Number:

Single

Function:

Fall Test For Plugs And Socket-outlets

Packaging Details:

Plywood

Highlight:

5rpm Tumbling Barrel Tester

500mm Drop Height Tumbling Barrel Tester

500mm 5rpm Tumbling Tester

Product Description

Plug Socket Test Equipment Tumbling For Barrel Testing Machine

Standard:

IEC 60884-1 2013 ‘Plugs and socket-outlets for household and similar purposes -- Part 1: General requirements’ clause 24.2.

Standard description:

The specimens are individually subjected to the test Ec:Rough handling shocks, primarily for equipment-type specimens, procedure 2 of IEC 60068-2-31, the number of falls being

– 1 000 if the mass of the specimen without flexible cable does not exceed 100 g,

– 500 if the mass of the specimen without flexible cable exceeds 100 g, but does not exceed

200 g, and

– 100 if the mass of the specimen without flexible cable exceeds 200 g.

The barrel is turned at a rate of five revolutions per minute, 10 falls per minute thus taking place.

Application:

This device is suitable for test the drop resistance of plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories.Plug Socket Test Equipment.

Test sample:

plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories.Plug Socket Test Equipment.

Feature:

This tester can preset test times, automatic stop when set test times completed.

Parameters:

Model	HC9922
Rotate speed	5rpm
Drop rate	10 time per min
Material	Sideways 1.5mm high-quality steel plate, upper and lower for 3mm steel pad in the 10-19mm wood and oblique part slide surface is plastic laminate, with triangle rubber pad
Test times	0~9999
Drop height	500mm (1000mm for option)
Barrel number	Single or double
Application	Plug and socket and similar electrical accessories
Standards	IEC60884-1, IEC 60068-2-31
Power supply	220V 50Hz

500mm Drop Height 5rpm Speed Tumbling Barrel Tester 0
