Manual Release 100MM Height Rubber Hemisphere Impact Tester

Brand Name:	HeJin
Model Number:	HJ0639
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	15 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate(cost additional)

Product Name:

Rubber Hemisphere Impact Tester

Test Sample:

Spin Extractors, Washing Machines

Impact Height:

100mm, Adjustable

Locking Method:

Self Lock When Upward The Hammer

Release Method:

Manual Release

Standard:

IEC 60335-2-4,IEC 60335-2-7

Function:

Verify The Impact Strength Properties Of The Cover

Impact Hammer:

70mm Rubber Hemisphere

Packaging Details:

Plywood

Highlight:

Rubber Hemisphere Impact Tester

100MM Hemisphere Impact Tester

Manual Release Rubber Hemisphere Impact Tester

Product Description

Household Appliance Test Equipment Rubber Hemisphere Impact Tester With Impact Height Of 100 MM

Standard:

IEC 60335-2-4 ‘household and similar electrical appliances – safety: part 2-4: particular requirements for spin extractors’ clause 21.101;

IEC 60335-2-7 ‘household and similar electrical appliances – safety: part 2-7:particular requirements for washing machines’ clause 20.101.

Application:

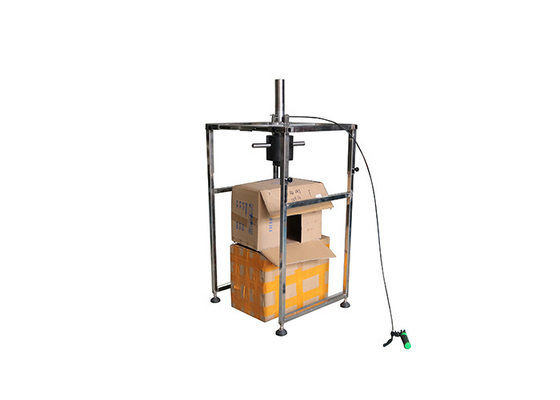

The device is used to verify the impact strength properties of the cover of electrical appliances loaded from the top. Household Appliance Test Equipment

Test sample:

Spin extractors, washing machines

Feature:

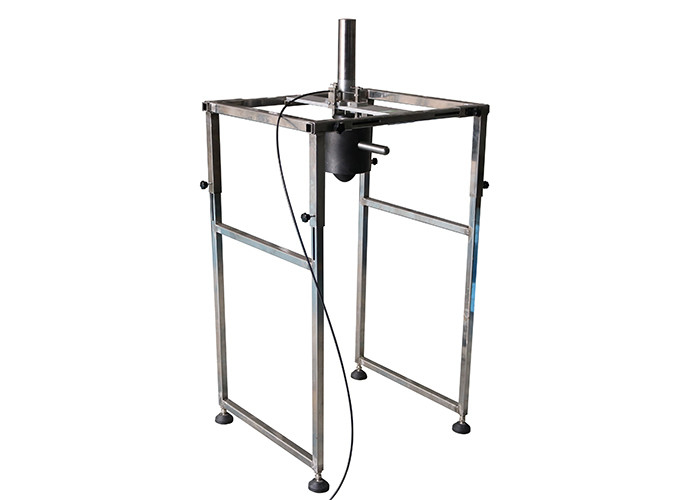

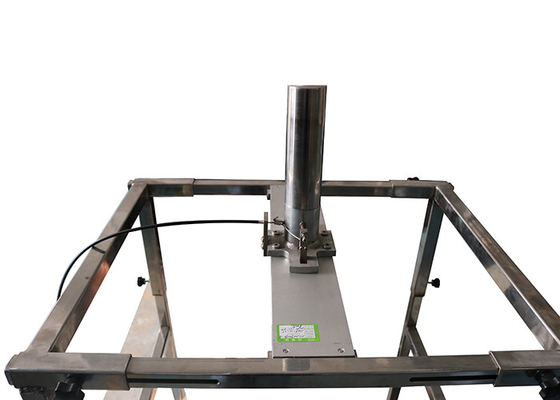

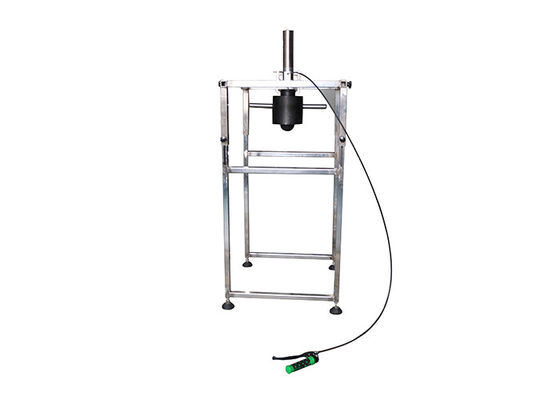

The device is provided with a self locking mechanism of impact hammer and is released through a handle; Stainless steel frame, 200mm-800mm width adjustable

Parameters:

Impact hammer	70mm rubber hemisphere, hardness between 40IRHD and 50IRHD; handle made of stainless steel, mass of 20kg
Impact height	100mm, adjustable. Household Appliance Test Equipment
Locking method	self lock when upward the hammer
Release method	manual release
Sample size	WD=(200~800)480mm

Manual Release 100MM Height Rubber Hemisphere Impact Tester 0
