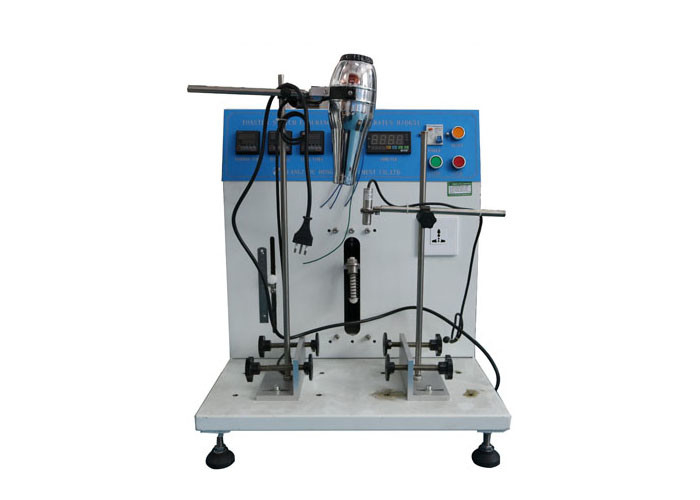

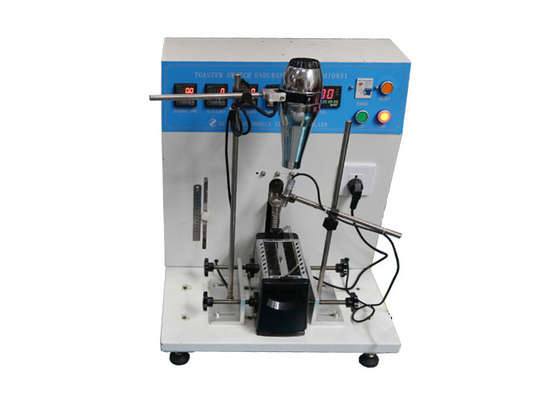

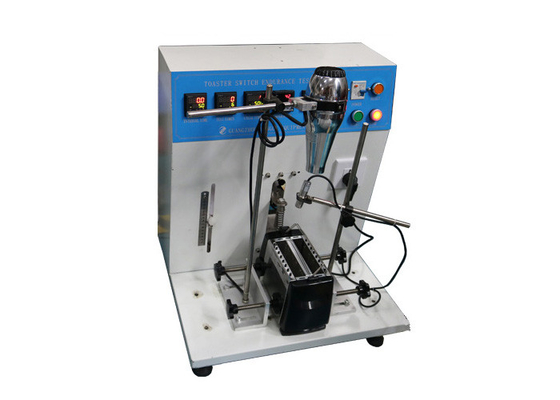

HJ0631 100W Cooling Fan Toaster Switch Endurance Tester

Name: HJ0631 100W Cooling Fan Toaster Switch Endurance Tester
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HJ0631
Availability: InStock

Brand Name:	HeJin
Model Number:	HJ0631
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	10 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate/ CE(cost additional)

Product Name:

Toaster Switch Endurance Tester HJ0631

Control:

Electrical Control

Test Station:

Single Station

Drive Method:

Motor-driven

Cooling Fan Power:

100W

Test Cycles:

0-999999

Temperature Measuring Device:

Infrared Thermometer

Function:

Household Appliance Test Equipment

Packaging Details:

Plywood

Highlight:

Toaster Switch Endurance Tester

100W Cooling Fan Switch Endurance Tester

HJ0631 Switch Endurance Tester

Product Description

Household Appliance Test Equipment Toaster Switch Endurance Tester

Standard:

IEC 60335-2-9 ‘Household and similar electrical appliances – Safety – Part 2-9: Particular requirements for grills, toasters and similar portable cooking Appliances’ clause 19.101.

Application:

It is used to check the breaking capacity that the toasters are operated at rated power supply and under normal operation. Household Appliance Test Equipment.

Feature:

Toasters are operated at rated power input and under normal operation, but without bread, for six cycles of operation. The appliance is then allowed to cool to approximately room temperature.

This test is carried out 500 times.

Parameter:

Parameters / Model	HJ0631, Household Appliance Test Equipment
Input Power	220V/ 50Hz
Test Cycles	1~999999
Cooling Fan Power	100W
Temperature Measuring Device	infrared thermometer
Drive Mode	Motor-driven
Equipped with vertical and horizontal keys, with spring to do the buffer to protect the sample keys
With the device which can detect the test sample’s current automatically; current detection upper and lower limits is adjustable, and with a light for status indication;
The baking and cooling actions can automatically repeat starting according preset parameters; with count and temperature discrimination functions; the baking cycles, test cycles, the interval time (0 ~ 99min) can be preset.
Dimensions and weight: L500mm × W620mm × H800mm, 100kg
