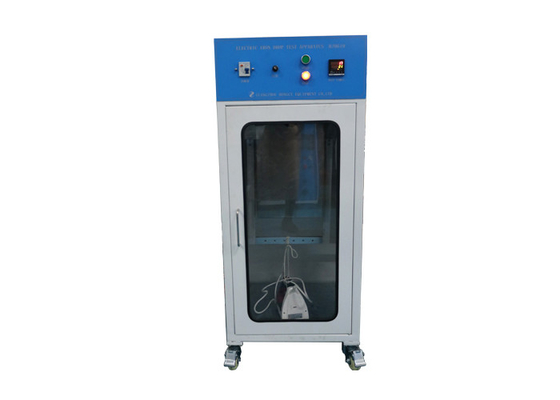

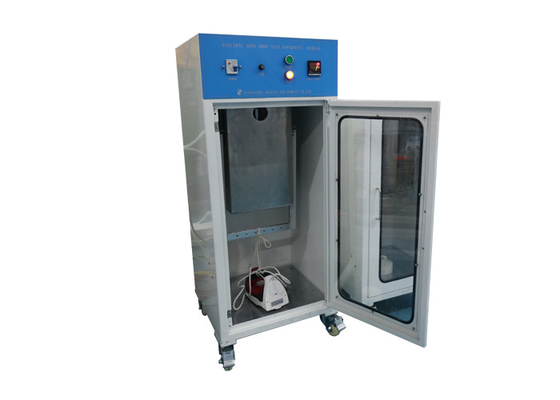

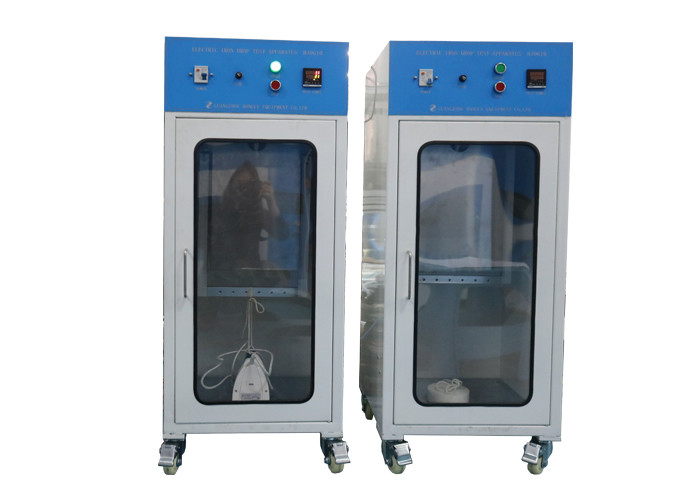

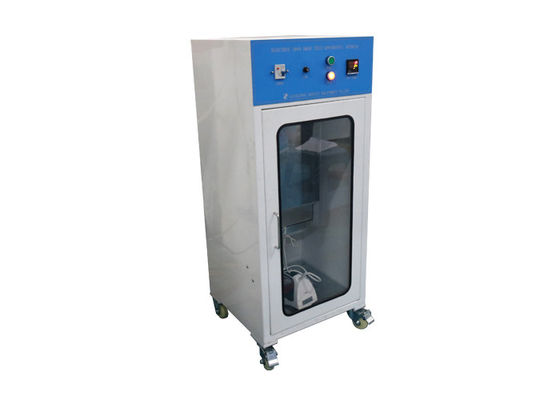

40mm Height 100kg 50HZ Electric Iron Drop Tester

Name: 40mm Height 100kg 50HZ Electric Iron Drop Tester
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HJ0610
Availability: InStock

Brand Name:	HeJin
Model Number:	HJ0610
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	10 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate/ CE(cost additional)

Product Name:

Electric Iron Drop Test Equipment HJ0610

Drive Mode:

Electric Moto Driven

Test Time:

1-999999

Test Speed:

≤20 R/minute

Dropping Height:

40mm

Rigidly Supported Steel Plate:

Thickness >15mm, Weight >15kg

Standard:

IEC60335-2-3

Function:

Household Appliance Test Equipment

Packaging Details:

Plywood

Highlight:

50HZ Electric Iron Drop Tester

100kg Electric Iron Drop Tester

40mm Height Electric Iron Drop Tester

Product Description

Household Appliance Test Equipment Iron Drop Test From 40mm Height

Standard:

IEC 60335-2-3 ‘Household and similar electrical appliances – Safety – Part 2-3: Particular requirements for electric irons clause 21.101

Application:

It is used to test the mechanical strength of the iron in the normal operating conditions and with rated input power. Household Appliance Test Equipment

The iron is operated under normal operation at rated power input and, except for cordless irons, the soleplate temperature is maintained under these conditions throughout the test.

Feature:

The iron is then suspended by its handle with the soleplate in the horizontal position. It is dropped from a height of 40 mm onto a rigidly supported steel plate having a thickness of at least 15 mm and a mass of at least 15 kg. The test is carried out 1 000 times at a rate not exceeding 20 drops per min.

The test is conducted so that the iron rests on the steel plate for approximately 15 % of the time.

Parameter:

Parameters / Model	HJ0610, Household Appliance Test Equipment
Input Power	AC220V 50HZ
Drive Mode	Electric moto driven, the drop action is achieved through the cam mechanism.
Test Cycles	1~999999, adjustable
Working Speed	≤20 r/minute
Dropping Height	40mm
Support Steel Plate	Thickness >15mm, weight >15kg
Dimension & Weight	5305601050mm,100kg
