AC380V 3KW Fuchsine Solution Pressure Tester For Ceramic Material

Minimum Order Quantity : 1 Set Price : Negotiatable
Packaging Details : Plywood Delivery Time : 30 days
Payment Terms : T/T, L/C Supply Ability : 10 set per month
Place of Origin: China Brand Name: HeJin
Certification: Third party calibration certificate/ CE(cost additional) Model Number: HJ0607

Detail Information

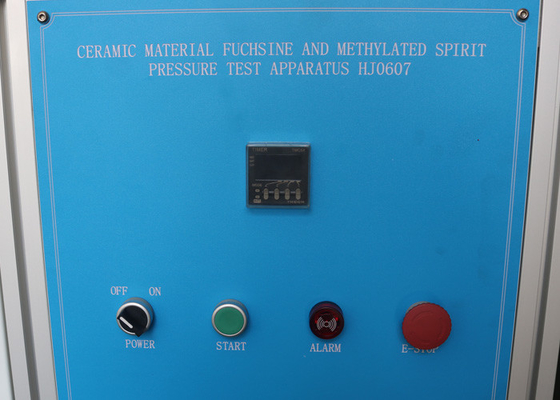

Product Name: Ceramic Material Fuchsine And Methylated Spirit Pressure Test Apparatus HJ0607 Usage: Determine If Ceramic Material Is Tightly Sintered
Power: 3kw, Household Appliance Test Equipment Test Pressure: 0.5-20MPa±0.5MPa
Test Solution: 1g Of Fuchsine In Each 100g Of Methylated Spirit Test Time: 1-999H
Test Pieces: Ceramic Material Standard: GB4706-1, IEC60335-1, EN60335-1
High Light:

Fuchsine Solution Pressure Tester

,

3KW Fuchsine Solution Pressure Tester

,

AC380V Fuchsine Solution Pressure Tester

Product Description

Household Appliance Test Equipment Fuchsine Solution Pressure Test For Ceramic Material



Standard:

IEC 60335-1 ‘Household and similar electrical appliances – Safety – Part 1: General requirements’ clause 22.32



Application:

Used to determine if ceramic material is tightly sintered.



Feature:

Household Appliance Test Equipment

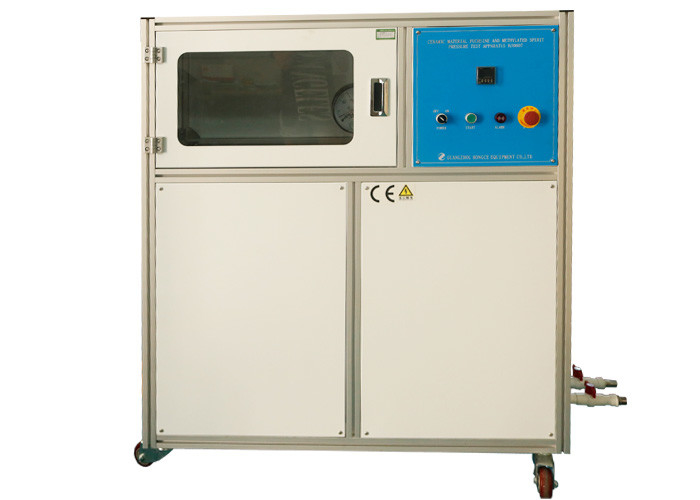

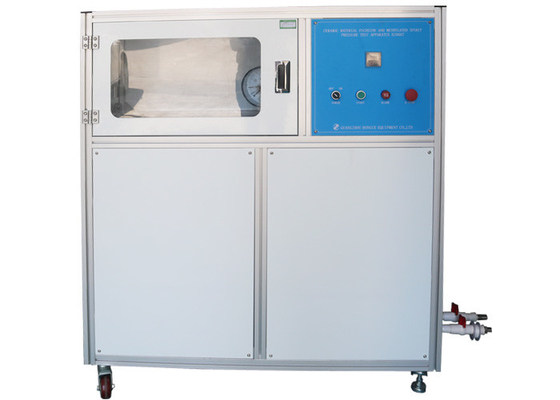

It consists of two parts: Fuchsine and Methylated Spirit test bottle and pressure boosting device.

The ceramic material is broken into pieces that are immersed in a solution containing 1 g of fuchsine in each 100 g of methylated spirit. The solution is maintained at a pressure not less than 15 MPa for a period so that the product of the test duration in hours and the test pressure in megapascals is approximately 180.

The pieces are removed from the solution, rinsed, dried and broken into smaller pieces.

The freshly broken surfaces are examined and shall not show any trace of dye visible to the naked eye.



Operation Steps:
1. Fill the tank with water.
2. The sample is placed in a container bottles.
3. Set pressure.
4. Tighten the pressure relief valve.
5. Turn on the power switch.
6. Set the test time. Note: This time is only to prompt the test time is up. It does not automatically relieve pressure. How to relief: Please loosen the pressure relief valve.
7. Press the start switch for testing.
8. Test to complete. Note: the need to manually unscrew the pressure relief valve.



Parameter:

No. Item Parameter
1 Power source AC380V,50Hz
2 Power 3KW
3 Test pressure 0.5-20MPa±0.5MPa
4 Reminder time of test completion 3 minutes, Household Appliance Test Equipment
5 Test time 1~999H
6 Dimensions L*W*H=1200mmX450mmX1500mm



AC380V 3KW Fuchsine Solution Pressure Tester For Ceramic Material 0
