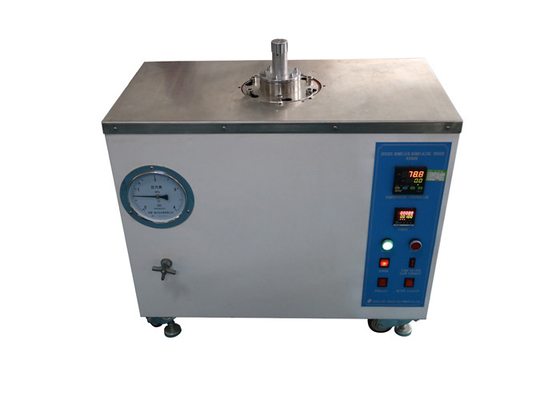

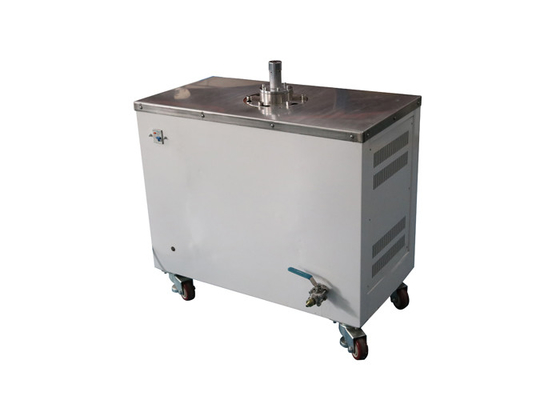

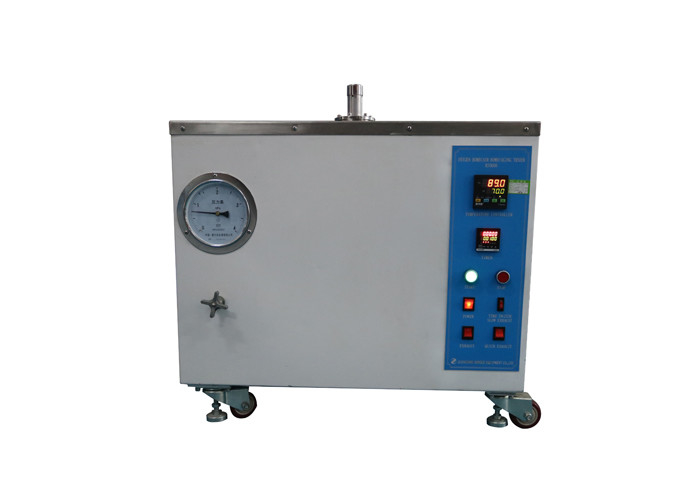

820×420×670mm 2.4KW Heater Oxygen Bomb Ageing Tester

Name: 820×420×670mm 2.4KW Heater Oxygen Bomb Ageing Tester
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HJ0606
Availability: InStock

Brand Name:	HeJin
Model Number:	HJ0606
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	10 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate/ CE(cost additional)

Product Name:

Oxygen Bomb (air Bomb) Ageing Tester HJ0606

Usage:

Rubber Part Has To Be Resistant To Ageing

Material:

Stainless Steel

Temperature Range:

0-200℃

Size:

820×420×670mm

Tank Volume:

4000cm3

Temperature Deviation:

±1℃, Household Appliance Test Equipment

Test Pressure:

2.1 MPa ± 0.07 MPa

Test Gas:

Oxygen / Air

Test Time:

96h

Packaging Details:

Plywood

Highlight:

Oxygen Bomb Ageing Tester

2.4KW Heater Oxygen Bomb Ageing Tester

820×420×670mm Oxygen Bomb Ageing Tester

Product Description

Household Appliance Test Equipment Oxygen Bomb For Resistant To Ageing

Standard:

IEC 60335-1 ‘Household and similar electrical appliances – Safety – Part 1: General requirements’ clause 22.32

Application:

Used for ageing resistance test of rubber part, Household Appliance Test Equipment

Feature:

The part is suspended freely in an oxygen bomb, the effective capacity of the bomb being at least 10 times the volume of the part. The bomb is filled with oxygen not less than 97% pure, to a pressure of 2.1 MPa ± 0.07 MPa and maintained at a temperature of 70 °C ± 1 °C.

The part is kept in the bomb for 96 h. It is then removed from the bomb and left at room temperature out of direct sunlight for at least 16 h.

Parameter:

Parameters Name Household Appliance Test Equipment	Parameter Data
Power	AC 220V±10%, 50Hz
Tank volume	4000cm³
Heater power	2.4KW
Maximum Working Pressure	4MP/cm²
Security Burst Pressure	2.7－3.3MP/cm²
Temperature Deviation	±1℃
Temperature self-control range	Room temperature 0-200℃
Temperature control	Digital display automatic control
Dimensions	820×420×670mm
Tank materials	Stainless steel

820×420×670mm 2.4KW Heater Oxygen Bomb Ageing Tester 0
