Home Appliances Cordless Kettle Endurance Test Equipment Voltage Output 0-250V
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsApp : +8618027403449
| Minimum Order Quantity : | 1 set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 30 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Third party calibration certificate(cost additional) | Model Number: | HJ0605 |
|
Detail Information |
|||
| Product Name: | Automatic Cord Reels Endurance Testing Equipment HJ0605 | Gas Source: | Compressed Air 5 ~ 7kg / Cm² |
|---|---|---|---|
| Test Speed: | 5-30 Times / Min Adjustable | Test Cycles: | 0-9999 Times |
| Drive Mode: | Pneumatic | Withdrawable Angle: | 30-70°, Household Appliance Test Equipment |
| Withdrawable Stroke: | Maximum 1000mm | Control Mode: | Button Control |
| Highlight: | 30times/Min Household Appliance Test Equipment,30times/Min Cord Reels Endurance Test,Automatic Cord Reels Endurance Test |
||
Product Description

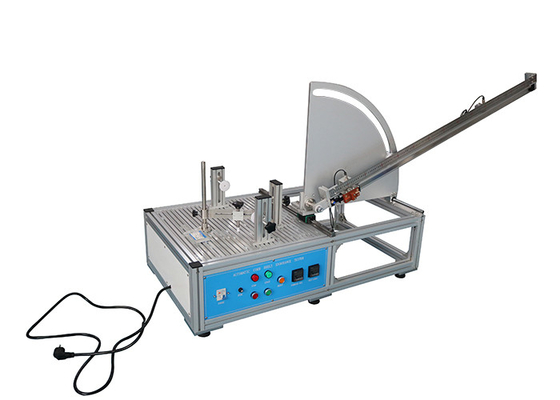

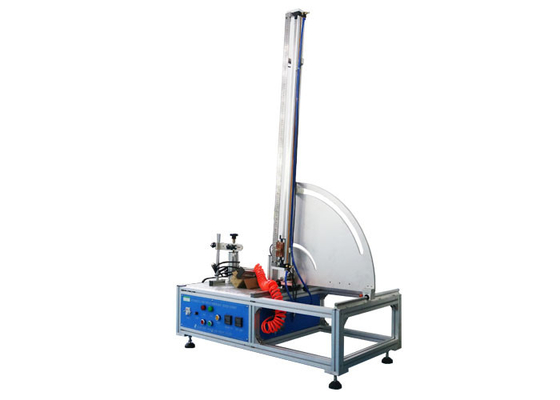

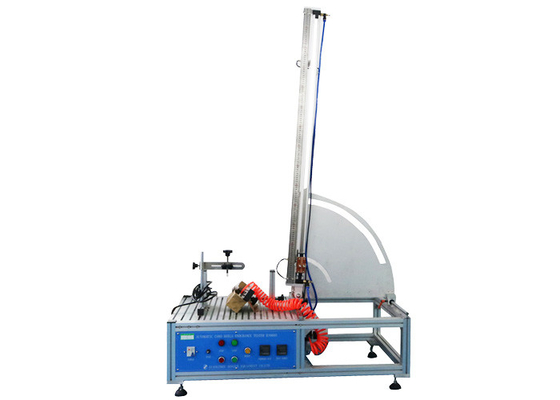

Household Appliance Test Equipment for Automatic Cord Reels Endurance Test With 30 times / min Speed
Standard:
IEC 60335-1 ‘Household and similar electrical appliances – Safety – Part 1: General requirements’ clause 22.16
Application:
Used to detect whether the structure of automatic reel for household and similar electrical appliances has caused undue abrasion or damage to the sheath of the flexible cord, breakage of conductor strands, undue wear of contacts.
Test sample:
Automatic cord reels of household appliances and similar electrical appliances.
Feature:
Two-thirds of the length of the cord is unreeled. If the withdrawable length of the cord is less than 225 cm, the cord is unreeled so that a length of 75 cm remains on the reel. An additional length of 75 cm of the cord is then unreeled and pulled in a direction so that the greatest abrasion occurs to the sheath, taking into account the normal position of use of the appliance. Where the cord leaves the appliance, the angle between the axis of the cord during the test and the axis of the cord when it is unreeled without substantial resistance is approximately 60°. The cord is allowed to be recoiled by the reel.
If the cord does not recoil at the angle of 60°, this angle is adjusted to the maximum that will allow recoil.
The test is carried out 6000 times at a rate of approximately 30 times per minute or at the maximum rate allowed by the construction of the cord reel if this is less.
Parameter:
| Input Power | 220±10V/50HZ |
| Gas Source | Compressed air 5 ~ 7kg / cm² |
| Test Speed | 30 cycles / min (or at the maximum rate allowed by the construction of the cord reel if this is less) |
| Test Cycles | 0~9999 times, the test device will stop working automatically when the preset test cycles are finished |
| Drive Mode | Pneumatic, Household Appliance Test Equipment |
| Withdrawable Angle | 30~70°, can be preset |
| Fixture | Quick clamping fixtures, easy for clamping the test sample |
| Withdrawable Stroke | Maximum 1000mm, can be adjusted |
