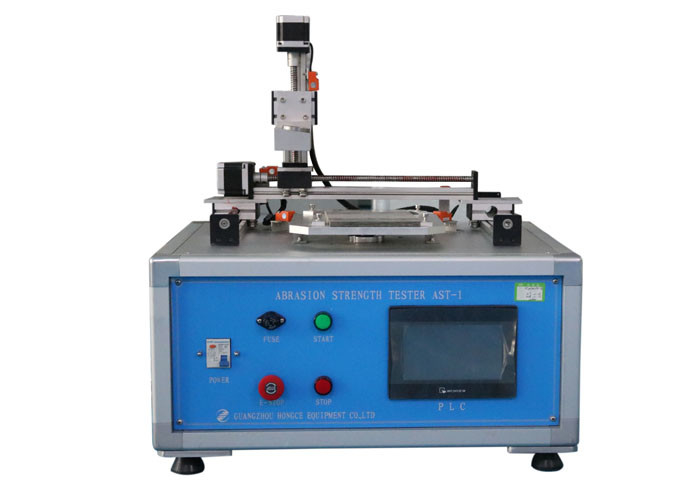

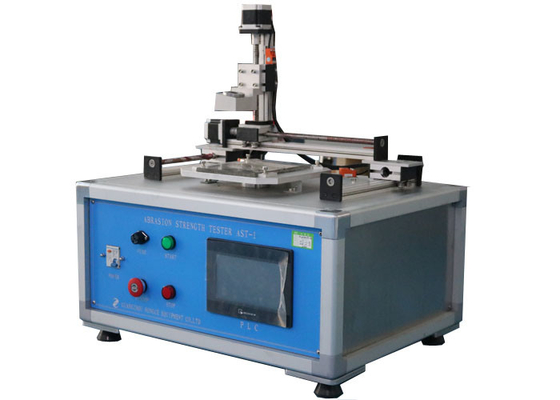

20mm/s Abrasion Strength Tester Household Appliance Test Equipment

Minimum Order Quantity : 1 set Price : Negotiatable
Packaging Details : Plywood Delivery Time : 30 days
Payment Terms : L/C, T/T Supply Ability : 10 set per month
Place of Origin: China Brand Name: HeJin
Certification: Third party calibration certificate(cost additional) Model Number: HJ0604

Detail Information

Product Name: Abrasion Strength Tester HJ0604 Usage: Home Appliance Accessible Parts Mechanical Strength Test
Scratching Speed: 0-25mm/s Adjustable Scratching Pressure: 10N±0.5N
Pin Tip Radius: 0.25 Mm ± 0.02 Mm Control System: PLC + Touch Screen
Drive Mode: Stepper Motor-driven Test Station: Single Station
High Light:

20mm/S Abrasion Strength Tester

,

20mm/S Household Appliance Test Equipment

,

20mm/S Abrasion Strength Test Equipment

Product Description

Household Appliance Test Equipment Abrasion Strength Tester With 20 mm/s Speed



Standard:

IEC 60335-1 ‘Household and similar electrical appliances – Safety – Part 1: General requirements’ clause 21.2



Application:

The device is used to check abrasion strength of printed circuit boards or the insulating accessible parts of the household appliances. Household Appliance Test Equipment.

Used to test whether the accessible parts of solid insulation have sufficient strength to prevent penetration by sharp implements.



Feature:

The surface of the insulation is then scratched by means of a hardened steel pin, the end of which has the form of a cone with an angle of 40°. Its tip is rounded with a radius of 0.25 mm ± 0.02 mm. The pin is held at any angle from 80° to 85° to the horizontal and loaded so that the force exerted along its axis is 10 N ± 0.5 N. The scratches are made by drawing the pin along the surface of the insulation at a speed of approximately 20 mm/s. Two parallel scratches are made. They are spaced sufficiently apart so that they are not affected by each other, their length covering approximately 25 % of the length of the insulation. Two similar scratches are made at 90° to the first pair without crossing them.



Parameter:

Power 220±10 V/50Hz (Electrical Appliance Tester)
Control system PLC + touch screen

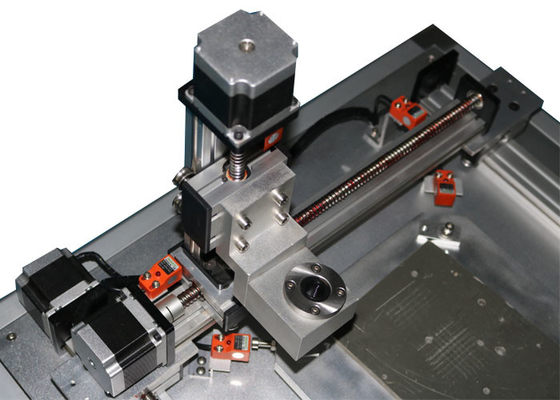

Drive mode Stepper motor-driven
Scratching speed 0-25mm/s adjustable
Testing times 0-9999times,it can be preset
Scratching distance Adjustable
Working table 360° rotatable
Scratching pressure 10N±0.5N,it can be equipped with the weight of 20N to reach the scratching pressure of 30N±0.5N
Radius of Steel Pin

0.25±0.02mm
