Home Appliances Cordless Kettle Endurance Test Equipment Voltage Output 0-250V
Contact Person : Anglia Chen
Phone Number : +86 17724266108
WhatsApp : +8617724266108
| Minimum Order Quantity : | 1 set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 30 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Third party calibration certificate(cost additional) | Model Number: | HJ0603 |
|
Detail Information |
|||
| Product Name: | Inclined Plane Device HJ0603A | Usage: | Home Appliance Stability Test |
|---|---|---|---|
| Diameter: | 600mm Or 800mm | Angle Range: | 0-30° |
| Rotation Method: | Manual / Electrical | Surface Material: | High-quality Spray Steel Plate |
| Function: | Household Appliance Test Equipment | Warranty: | 12 Months |
| High Light: | Household Appliance Test Equipment Inclined Table,Household Appliance Test Inclined Table,30° Appliance Test Inclined Table |
||
Product Description

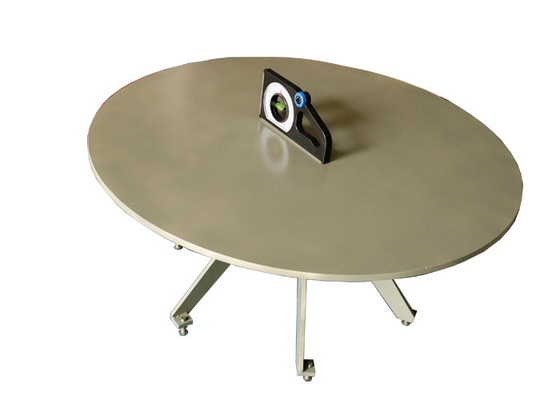

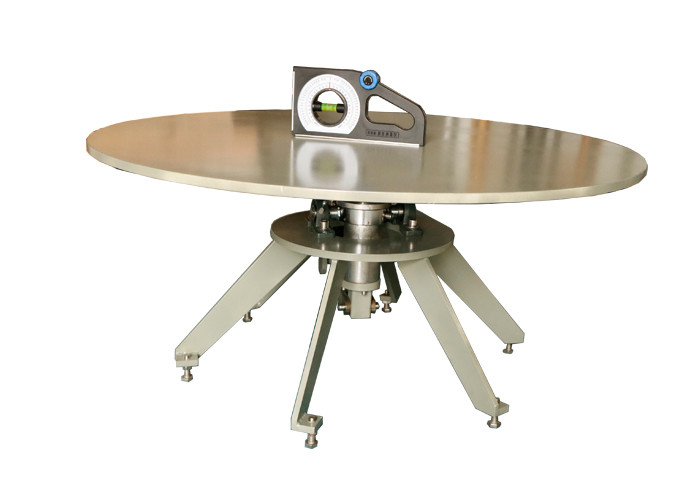

Household Appliance Test Equipment Inclined Table For Stability Test With 0-30° Angle
Standard:
IEC 60335-1 ‘Household and similar electrical appliances – Safety – Part 1: General requirements’ clause 20.1
Application:
It is suitable for all types of home appliances, kitchen equipments and similar electrical appliances doing mechanical stability test. The test sample was placed on the table to test its mechanical stability performance by different angle inclined.
Feature:
The test bench consists of a work surface and an angle adjustment device.
Equipped with slope measuring instrument.
Test sample:
Household appliances, such as refrigerators, washing machines, air conditioners, other household appliances and similar electrical appliances and etc.
Parameter:
| Model | HJ0603 | HJ0603A/Z |
| Surface diameter | 600mm | 800mm |
| Angle range | 0-30° | 0-30° |
| Load capacity | 80kg (load can be improved as per customer requirements) | |
| Surface material | High-quality spray steel plate, Household Appliance Test Equipment | |
| Rotation method | Manual | Electrical |
| Rotation speed | / | 1r/min |
| Note: Z represents the version with automatic rotation function driven by the electrical motor. | ||
