100N Plug Socket Test Equipment For Non - Solid Pins Test

Name: 100N Plug Socket Test Equipment For Non - Solid Pins Test
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HC9907
Availability: InStock

Brand Name:	HeJin
Model Number:	HC9907
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	20 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Non-solid Pins Testing Device HC9907

Usage:

Mechanical Strength Of Pins Of Portable Accessories

Steel Rod:

Φ4.8mm

Weight:

100N

Test Time:

1min

Standard:

IEC 60884-1

Packaging Details:

Plywood

Highlight:

100N Plug Socket Test Equipment

Test Equipment For Non - Solid Pins

100N Socket Test Equipment

Product Description

Plug Socket Test Equipment Device for Testing Non-solid Pins for IEC60884-1 Figure 14 With 100N Weight

Standard:

IEC 60884-1 ‘Plugs and socket-outlets for household and similar purposes –Part 1: General requirements’ clause 14.2, figure 14

Application:

Pins of portable accessories shall have adequate mechanical strength. This device is use to test the mechanical strength of Pins of portable accessories. Plug Socket Test Equipment

Test sample:

Non-solid pins

Feature:

A force of 100 N is exerted on the pin, which is supported as shown in figure 14, for 1 min in a direction perpendicular to the axis of the pin, by means of a steel rod having a diameter of 4.8 mm, the axis of which is also perpendicular to the axis of the pin.

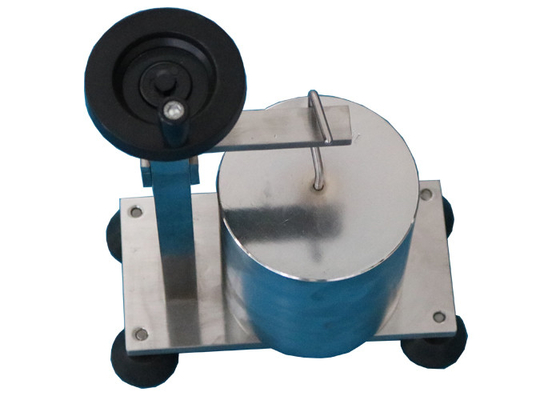

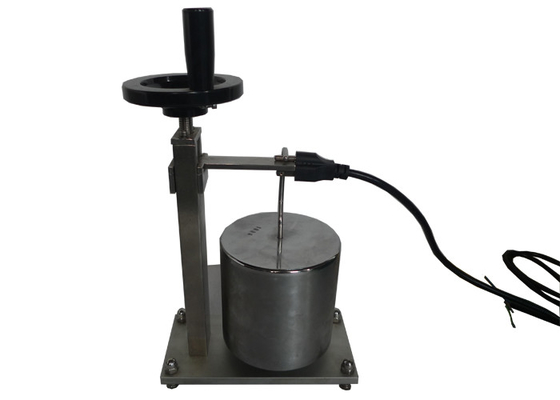

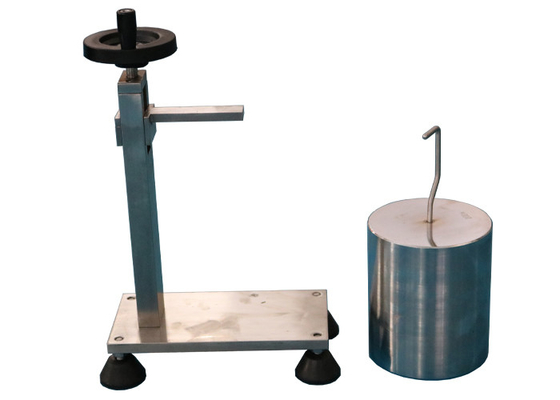

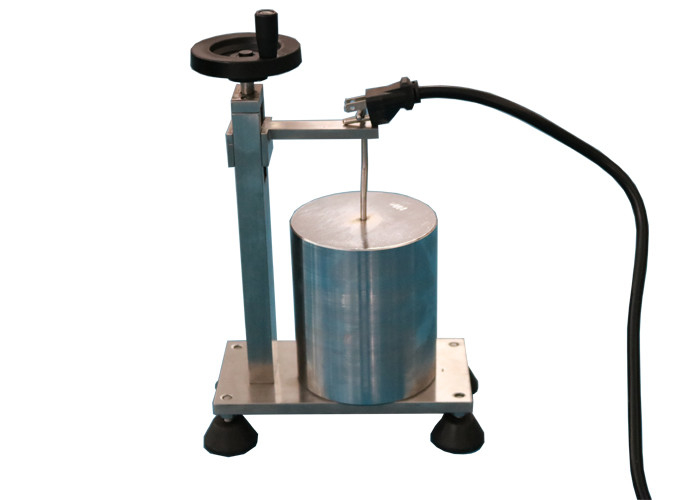

100N Plug Socket Test Equipment For Non - Solid Pins Test 0

Parameters:

Steel rod	Φ4.8mm
Weight	100N
Operation	Manual rotating the wheel so that the pin bearing pressure
Test time	1 min.
Standard	IEC60884-1, Plug Socket Test Equipment
