IEC 60884-1 IEC 60669-1 500mm Height Plug Socket Test Equipment

Brand Name:	HeJin
Model Number:	HC9903/HC9903A
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

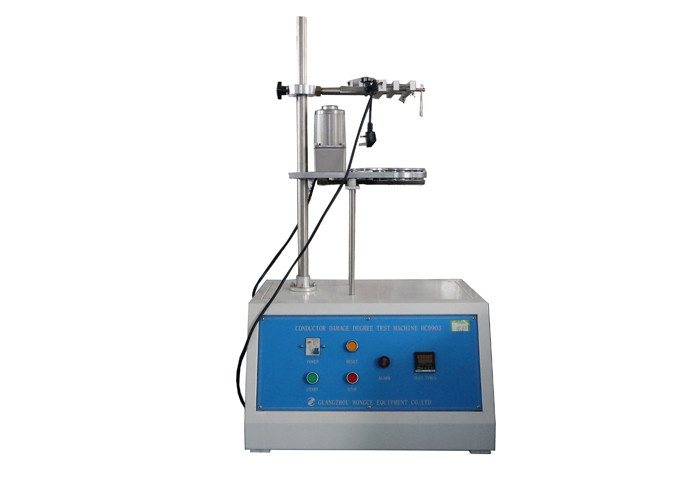

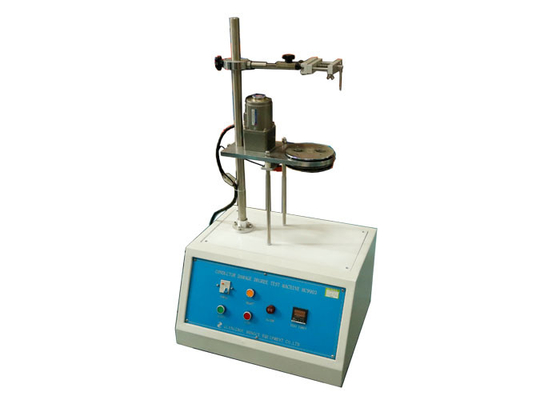

Conductor Damage Degree Test Machine HC9903

Test Rate:

10±2 RPM

Test Time:

0-9999

Standard:

IEC 60884-1, IEC 60669-1, IEC60998-2-2, IEC60947-1

Test Height:

250~500mm

Weights:

0.3, 0.4, 0.7, 0.9, 1.4, 2, 2.9, 4.5, 5.9, 6.8, 8.6, 9.5, 10.4, 14, 15, 16.8, 20, 22.7kg

Packaging Details:

Plywood

Highlight:

IEC 60884-1 Plug Socket Test Equipment

IEC 60669-1 Plug Socket Test Equipment

500mm Plug Socket Test Equipment

Product Description

Plug Socket Test Equipment Apparatus For Checking Damage To Conductors Button Operation

Standard:

IEC 60884-1 ‘Plugs and socket-outlets for household and similar purposes – Part 1: General requirements’ clause 12.2.5, figure 11

IEC 60669-1 ‘Switches for household and similar fixed electrical installations – Part 1: General requirements’ clause 12.2.5, firgure 9

Application:

This device is use to check whether the terminals with screw and screwless terminals can bears the mechanism force under normal operation. Mainly use to judge whether the design and structure of screw clamping terminals meet the requirement of clamp the conductors without excessive damage. Plug Socket Test Equipment

Test sample:

Terminals, connectors

Feature:

Adopt the structure of guide rail. Can preset test times, while testing, tester will automatic stop when preset test times completed, and output sound alarm signal.

Parameter:

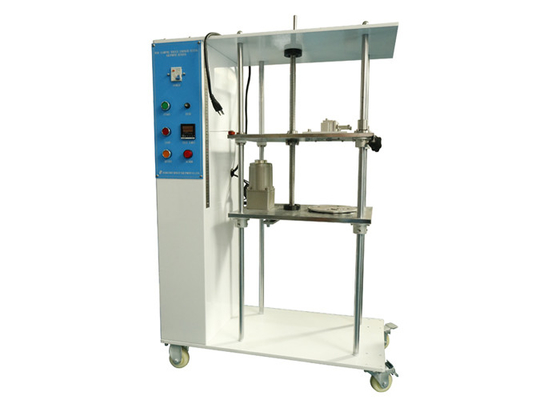

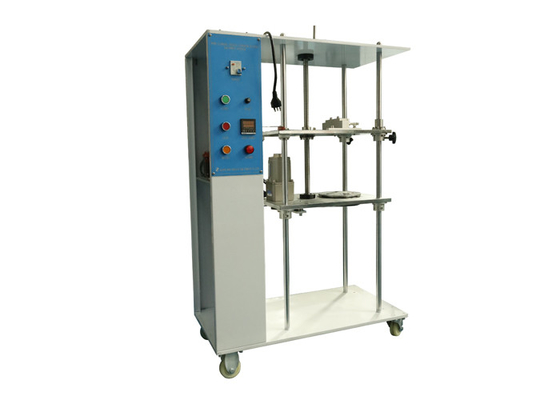

Model	HC9903	HC9903A
Test rate	10±2 RPM	10±2 RPM
Diameter of gyration	75mm	75mm
Test times	0-9999	0-9999
Weights	0.3, 0.4, 0.7, 0.9, 1.4, 2kg	0.3, 0.4, 0.7, 0.9, 1.4, 2, 2.9, 4.5, 5.9, 6.8, 8.6, 9.5, 10.4, 14, 15, 16.8, 20, 22.7kg
Test height	260, 280, 300, 320mm	250~500mm
Diameter of ferrule hole	6.5, 9.5, 13, 14.5mm	6.5~28.6mm, 12 pc
Standards	IEC60884-1, IEC60669-1, Plug Socket Test Equipment	IEC60998-2-2, IEC60947-1
