AC230V 3 Stations Switch Plug Socket Endurance Tester for Plug Socket Test Equipment
Contact Person : Anglia Chen
Phone Number : +86 17724266108
WhatsApp : +8617724266108
| Minimum Order Quantity : | 1 set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Carton Box | Delivery Time : | 30 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 20 set /month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate (cost additional) | Model Number: | HC9901 |
|
Detail Information |
|||
| Product Name: | Gauges For Checking Dimensions Of Plugs And Sockets HC9901 | Usage: | Checking Of Dimensions |
|---|---|---|---|
| Standard: | IEC 60884-1, IEC 60669-1 | Material: | Stainless Steel |
| High Light: | IEC60884 Plug Socket Test Equipment,IEC60884 SS Gauges,IEC60884 Plug Socket Test Gauges |
||
Product Description

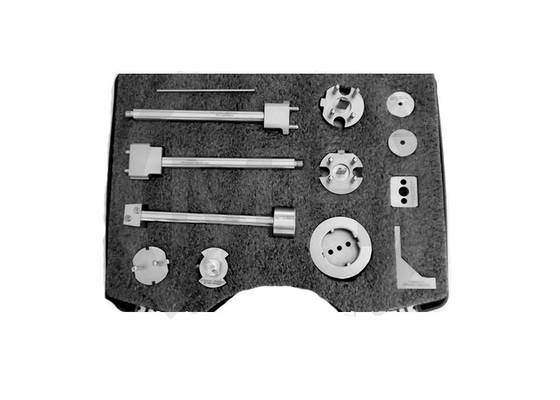

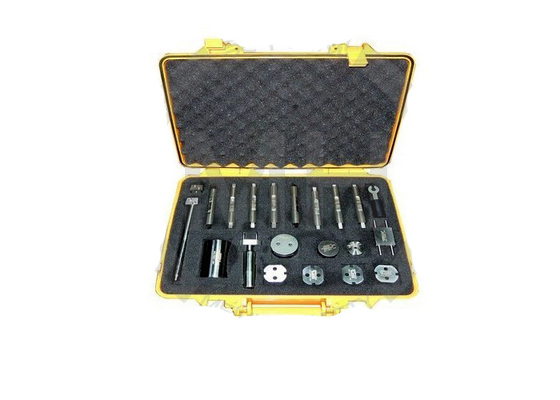

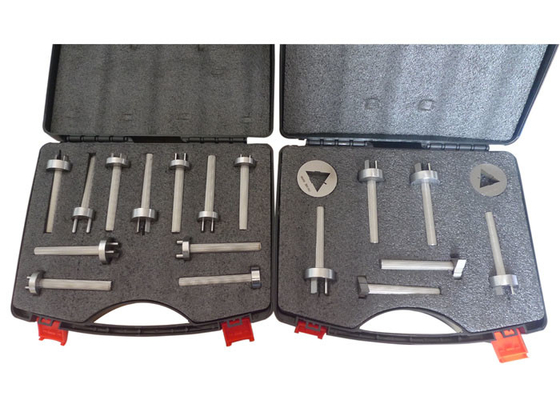

IEC60884 Gauges For Checking Dimensions of Plug Socket Test Equipment Made Of Stainless Steel
Standard:
IEC 60884-1 ‘Plugs and socket-outlets for household and similar purposes – Part 1: General requirements’ clause 9
IEC 60669-1 ‘Switches for household and similar fixed electrical installations – Part 1: General requirements’ clause 9
Application:
These gauges are intended to verify and checking the dimensions of plugs and socket-outlets for household and similar purposes. Plug Socket Test Equipment
Test sample:
British, German, Italy, UL, Russia, Japan, India, Australia, French Plugs and socket-outlets for household and similar purposes, and etc.
Feature:
Manufacture and operate compliance with the relevant standard sheets like BS 1363, BS564, VDE620, CEI 23-50, UL498, GOST 7396.1-89, JIS C8303, IS1293, AS/NZS3112, NF C61-314, SANS164-1, DS 60884-2-D1, NEN1020, SEV1011, NBN C61-112-1, SASO2203|2204, IRAM2063|2073, NBR14136, TIS 166-2535, CNS690 and etc.
Parameter:
BS1361
| Item No. | Item Name | Description | Unit | Qty |
| 1 | Test pin HT-I30 | BS1363-1:2018 figure 1 | PC | 1 |
| 2 | Apparatus For Mechanical Strength Test On Resilient Covers | BS1363-1:2018 figure 2a | PC | 1 |
| 3 | Hardwood Block For Figure 2a | BS1363-1:2018 figure 2b | PC | 1 |
| 4 | Gauge For Plug Pins | BS1363-1:2018 figure 5 | PC | 1 |
| 5 | Apparatus for testing plug cover fixing screws | BS1363-1:2018 figure 6 | PC | 1 |
| 6 | Mounting plate | BS1363-1:2018 figure 7 | PC | 1 |
| 7 | Plug pin deflection test apparatus for resilient plugs | BS1363-1:2018 figure 8 | PC | 1 |
| 8 | Go Gauge For Socket-Outlet | BS1363-1:2018 figure 11 | PC | 2 |
| 9 | Contact Test Gauge | BS1363-2:2018 figure 12 | PC | 1 |
| 10 | Non-Contact Test Gauge | BS1363-2:2018 figure 14 | PC | 1 |
| 11 | Turning Moment Gauge | BS1363-2:2018 figure 15 | PC | 1 |
| 12 | Withdrawal Pull Gauges For Effectiveness Of Contact | BS1363-2 figure 16 | PC | 2 |
| 13 | Test Apparatus For Temperature Rise Test | BS1363-1 figure 17a | PC | 1 |
| 14 | Dummy Front Plate For Temperature Rise Test | BS1363-1 figure 17b | PC | 1 |
| 15 | Solid Link For Test On Fuse Clips | BS1363-1:2018 figure 19 | PC | 1 |
| 16 | Calibrated link | BS1363-1:2018 figure 28 | PC | 1 |
| 17 | Calibration Jig For Calibrate Link | BS1363-1:2018 figure 29 | PC | 1 |
| 18 | Test Plug For Temperature Rising | BS1363-2:1995 figure 30 | PC | 1 |

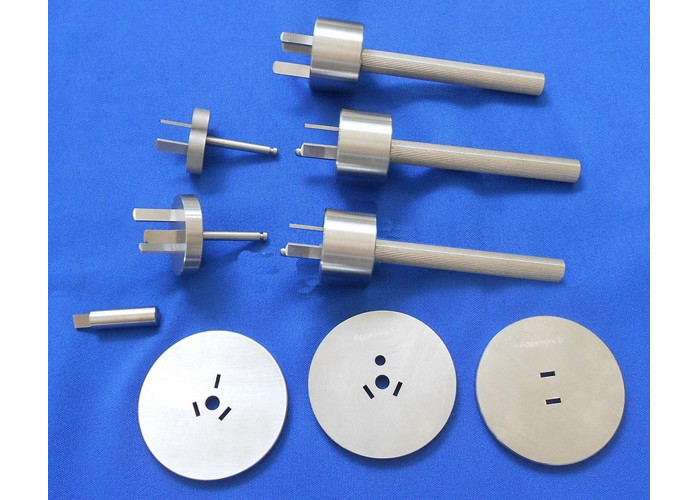

AS/NZS3112
| Item No. | Item Name | Description | Unit | Qty |
| 1 | Depth of No-contact test gauge | AS/NZS3112 figure3.1/10A/15A | PC | 1 |
| 2 | Device for checking the resistance to lateral strain (Three Pin Gauge) | AS/NZS3112 figure3.6 Max 10A | PC | 1 |
| 3 | Device for checking the resistance to lateral strain (Two Pin Gauge) | AS/NZS3112 figure3.7 Max 10A | PC | 1 |
| 4 | Gauge for three –Pin Flat-Pin Plugs | AS/NZS3112 figure A1 | PC | 1 |
| 5 | Gauge for Two-Pin Flat-Pin Flat- Pin Plugs with Parallel Pins | AS/NZS3112 figure B1 | PC | 1 |
| 6 | Three-pin test plug with flat pins for full insertion test and the finger test during normal insertion test | AS/NZS3112 figure C1 | PC | 1 |
| 7 | Three-pin test plug with flat pins for abnormal insertion test | AS/NZS3112 figure D1 | PC | 1 |
| 8 | Plugs and socket-outlets for use in extra-low voltage circuits | AS/NZS3112 figure F1 | PC | 1 |
| 9 | Three-pin test plug with flat and round pins for the full-insertion test and test finger test during normal insertion test | AS/NZS3112 figure G1 | PC | 1 |
