50Hz 70mm Test Stroke Marking Durability Rubbing Tester

Name: 50Hz 70mm Test Stroke Marking Durability Rubbing Tester
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HC9950
Availability: InStock

Brand Name:	HeJin
Model Number:	HC9950
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	20 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Marking Durability Rubbing Tester HC9950

Usage:

Marking Abrasion Test

Test Stroke:

70mm

Test Speed:

5-60times/min

Counter:

0-99999999

Standard:

IEC 60884-1, IEC 60669-1

Packaging Details:

Plywood

Highlight:

Marking Durability Rubbing Tester

70mm Test Stroke Durability Rubbing Tester

50Hz Durability Rubbing Tester

Product Description

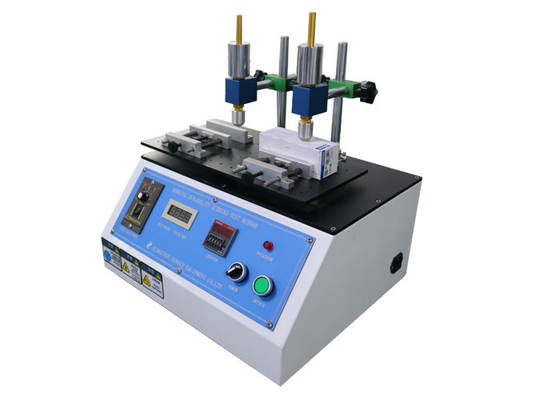

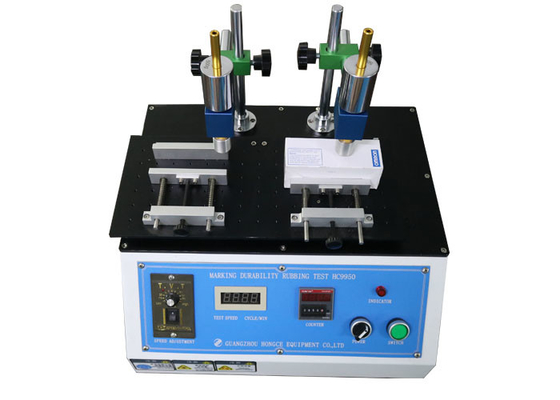

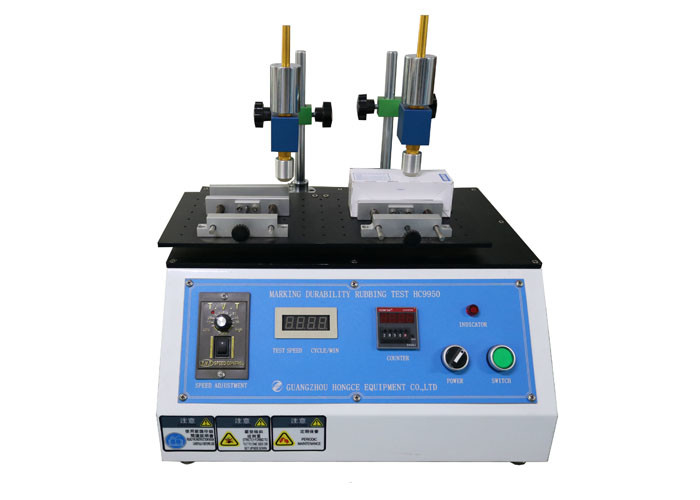

IEC60884 Plug Socket Test Equipment Marking Durability Rubbing Tester With 70mm Test Stroke

Standard:

IEC 60884-1 ‘Plugs and socket-outlets for household and similar purposes – Part 1: General requirements’ clause 8.8

IEC 60669-1 ‘Switches for household and similar fixed electrical installations – Part 1: General requirements’ clause 8.8

Standard description:

The marking is rubbed by hand for 15 s with a piece of cloth soaked with water and again for 15 s with a piece of cloth soaked with petroleum spirit.

Application:

This test device is suitable for all kinds of plastic injection, silk screen surface for abrasion test, such as: computer, mobile phone (PDA), MP3, CD/VCD/DVD, cordless telephone, electronic dictionary and other surface and printing surface. Plug Socket Test Equipment

Parameters:

Specification:	Two axes (can be used as both rubber and alcohol friction, pencil hardness test can also be added)
Test stroke:	70mm, Plug Socket Test Equipment
Speed:	5-60times/min, adjustable
Counter:	0-99999999 adjustable
Weight:	50, 100, 200, 300, 500g Two each, Can be customized according to user requirements
Voltage:	220V, 50Hz
Machine size:	500300550mm
Accessories:	Alcohol rubbing fixture 2 pcs, rubber rubbing fixture 2 pcs, pencil friction fixture 2 pcs, cotton cloth, eraser 2 pcs

50Hz 70mm Test Stroke Marking Durability Rubbing Tester 0
