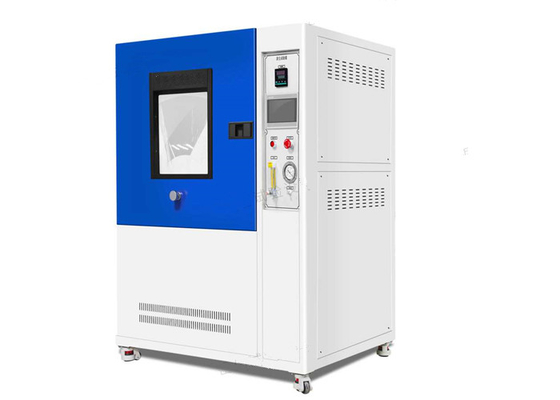

SUS304 2.0KW Dustproof Test Chamber IP Test Equipment

Product Description

IP Test Equipment Dustproof Test Chamber To Verify Protection Against Dust (Dust Chamber)

Standard:

IEC 60529 Degrees of protection provided by enclosures (IP Code) IP5X, IP6X, figure 2.

Standard description:

The test is made using a dust chamber incorporating the basic principles shown in figure 2 whereby the powder circulation pump may be replaced by other means suitable to maintain the talcum powder in suspension in a closed test chamber. The talcum powder used shall be able to pass through a square-meshed sieve the nominal wire diameter of which is 50μm and the nominal width of a gap between wires 75μm. The amount of talcum powder to be used is 2 kg per cubic meter of the test chamber volume. It shall not have been used for more than 20 tests.

Application:

The test device is suitable for sealing parts and enclosure’s sand and dust resistance capacity testing of the electrical and electronic products, car and motorcycles spare parts and seals. In order to detect the use, storage, transport performance of the electrical and electronic products, car and motorcycles spare parts and seals under the sand and dust environment.

Feature:

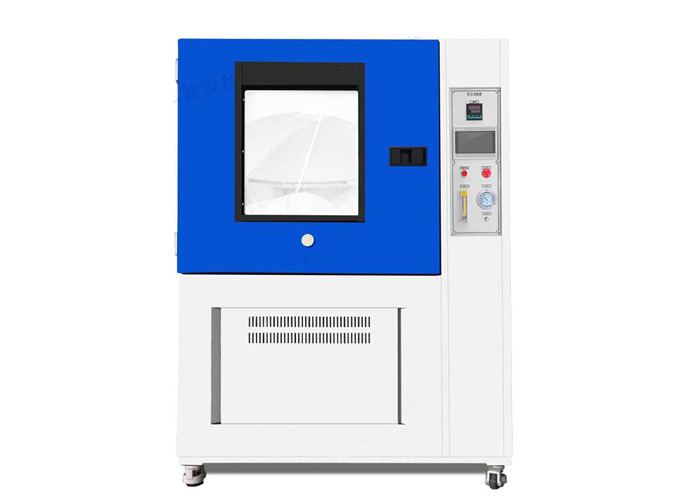

The chamber adopts high-quality steel plate electrostatic spraying, matching blue and white, simple and elegant

A 7-inch touch screen is used to control the dust blower, dust vibration and total test time separately

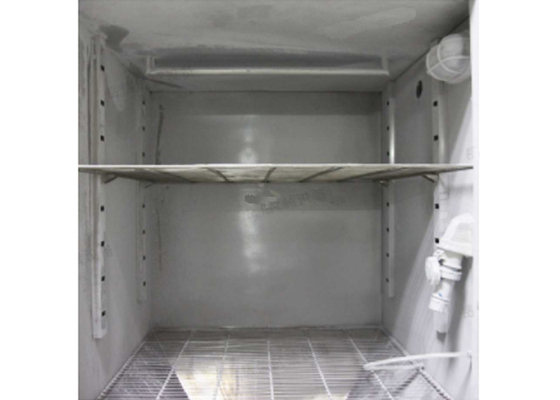

The inner chamber is connected with a high-quality fan with high power and strong dust blowing ability

Built-in heating device to keep the dust dry; a heater is installed in the circulating air duct to heat the dust to avoid dust condensation

A rubber seal is used at the door to prevent dust from floating out
